Side Airbag Module: Installation

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Ensure there are no foreign particles on side airbag module.
Install the side airbag module (A) to backrest frame assembly.
Tightening torque:

5.9 N.m (0.59 kgf-m, 4.4 ft-lb)

Fig 1: Installing Side Airbag Module (A) To Backrest Frame Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the side airbag harness to backrest frame assembly.
NOTE: Secure the harness to its original position of seat.

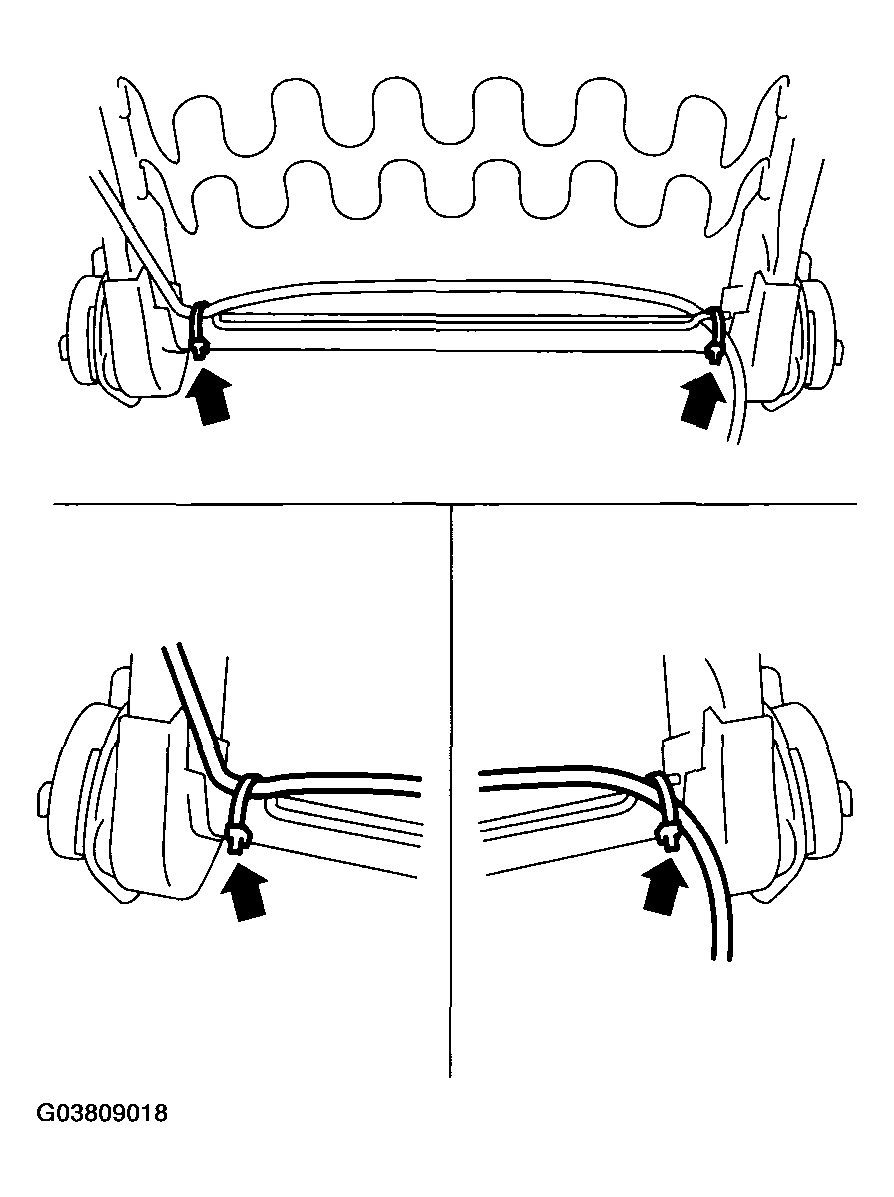

Fig 2: Installing Side Airbag Harness To Backrest Frame Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the backrest cover. < Ref. to ASSEMBLY , Front Seat. >
Install the side airbag harness to slide rail IN (A).

Fig 3: Installing Side Airbag Harness To Slide Rail In (A)
Courtesy of SUBARU OF AMERICA, INC.
Recline the seat or slide it backward and forward. Check there is no contact between seat backrest assembly, cushion cover assembly and side airbag harness.
