Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the two bolts, and then turn the socket and disconnect cord assembly to remove rear combination light.

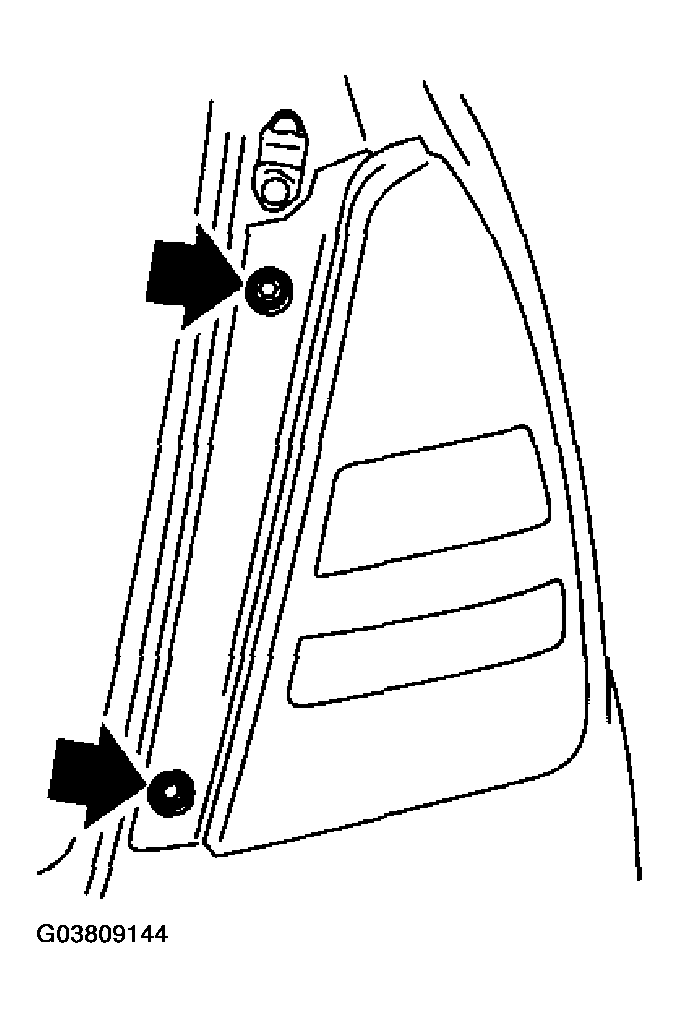

    Fig 1: Removing Two Bolts
    G03809144Courtesy of SUBARU OF AMERICA, INC.

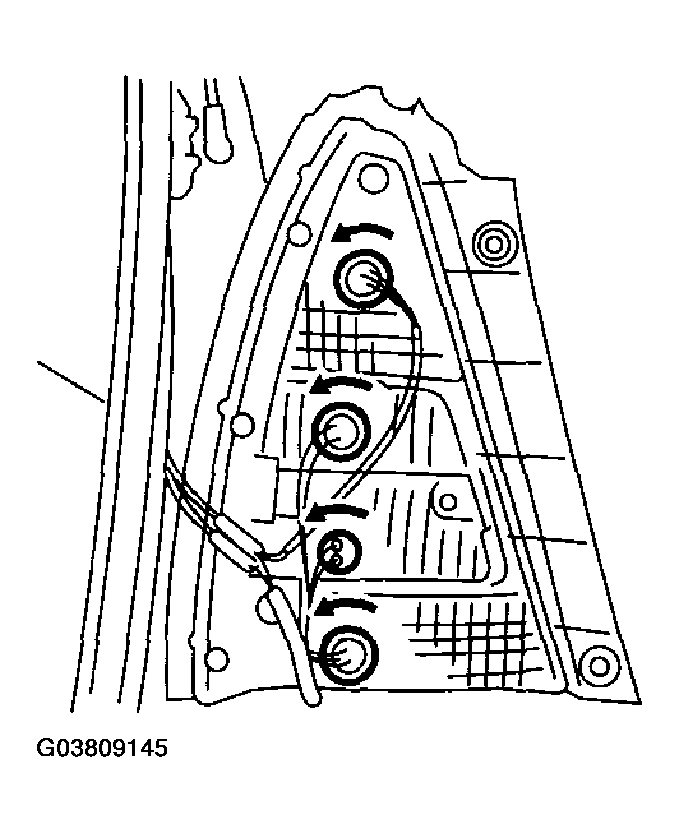

    Fig 2: Turning Socket And Disconnecting Cord Assembly
    G03809145Courtesy of SUBARU OF AMERICA, INC.
