Clutch System: Flywheel: Installation

Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

Fig 1: Identifying Flywheel And ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten the flywheel Identifying bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

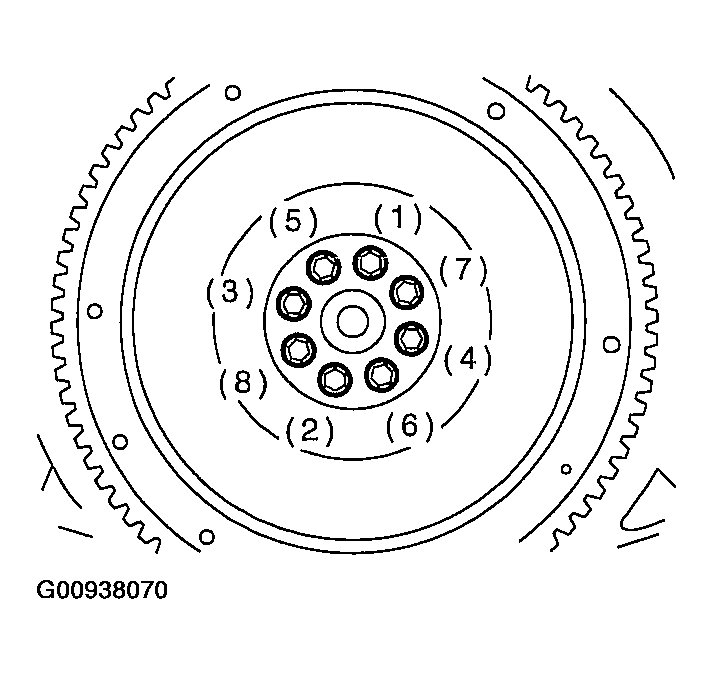

Fig 2: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. < Ref. to INSTALLATION .>
Install the transmission assembly. < Ref. to INSTALLATION .>
