Differential Case Assembly

Loosen the twelve bolts and remove the hypoid driven gear.

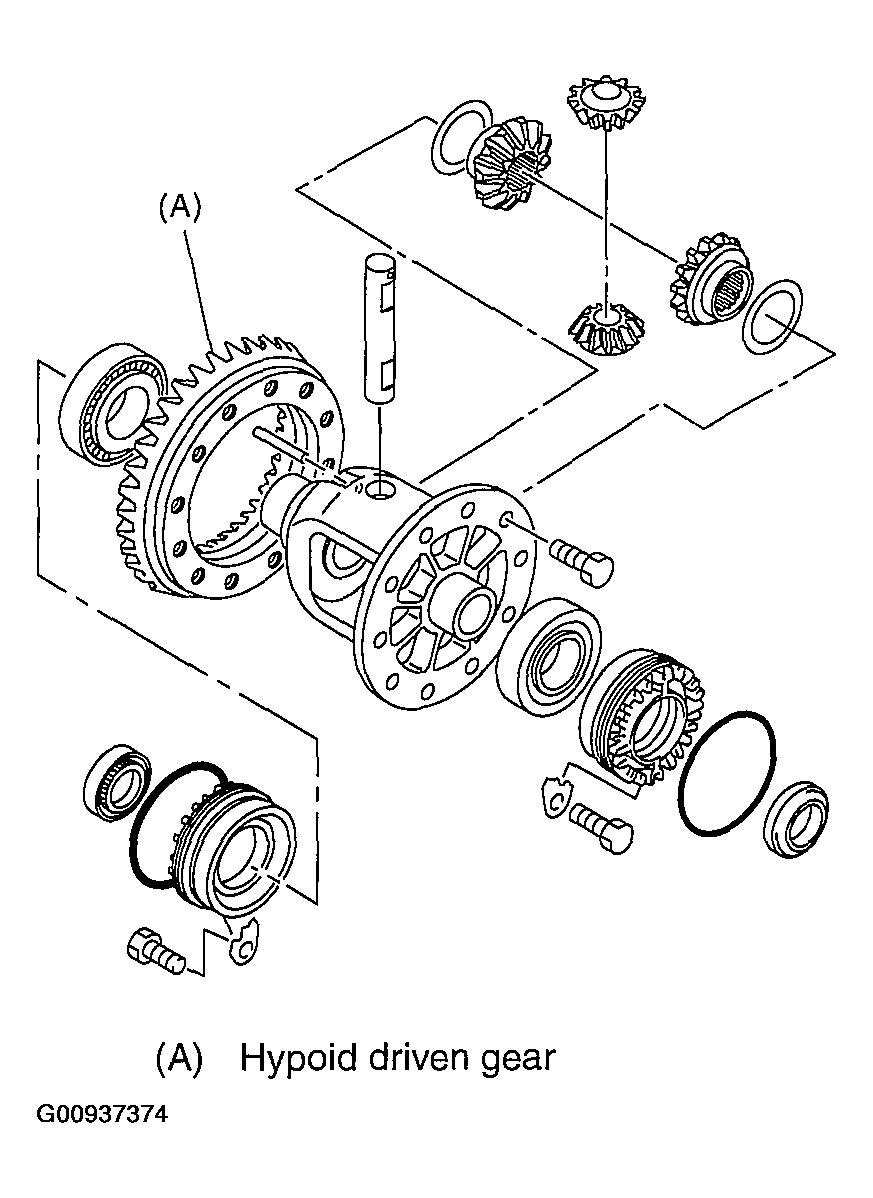

Fig 1: Identifying Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Drive out the straight pin from differential assembly toward hypoid driven gear.
ST 899904100 REMOVER

Fig 2: Driving Out Straight Pin From Differential Assembly Toward Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Pull out the pinion shaft, and remove the differential bevel pinion and gear and washer.

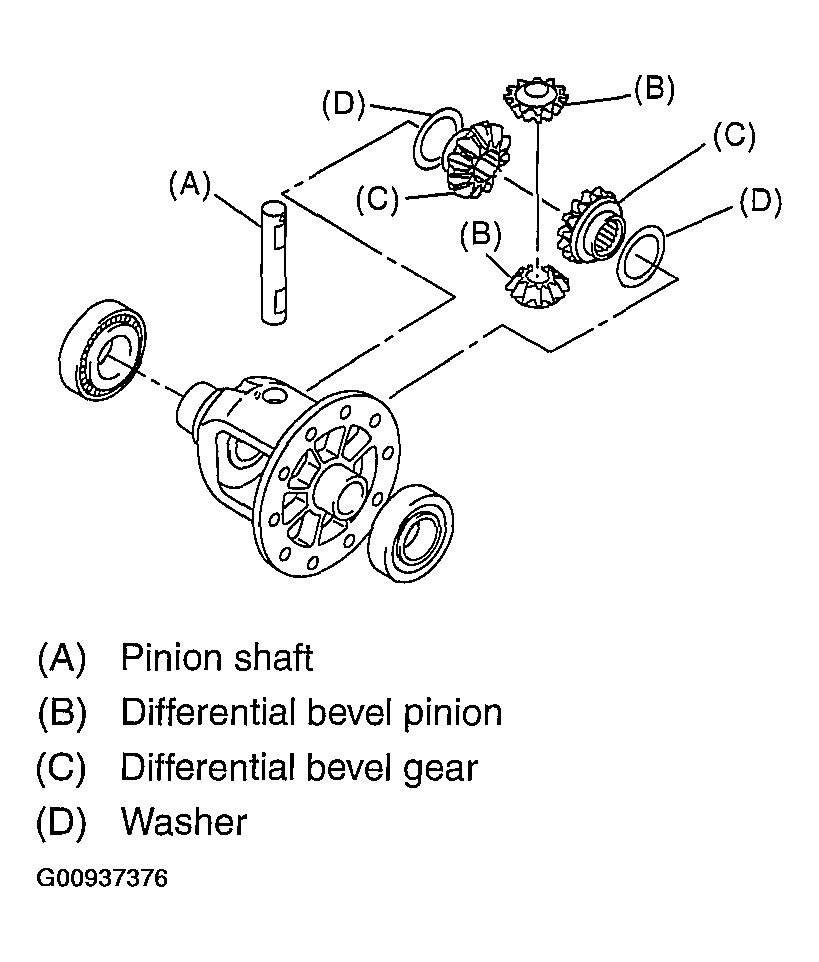

Fig 3: Identifying Differential Bevel Pinion
Courtesy of SUBARU OF AMERICA, INC.
Remove the roller bearing using ST.
ST 899524100 PULLER SET

Fig 4: Identifying Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
