Side Retainer

NOTE: Replace the oil seal and O-ring after adjustment of drive pinion gear backlash and tooth contact.

Remove the O-ring.

Fig 1: Identifying O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal.

NOTE:

Remove the oil seal using a flat tip screwdriver
Do not reuse the oil seal. Prepare a new oil seal.

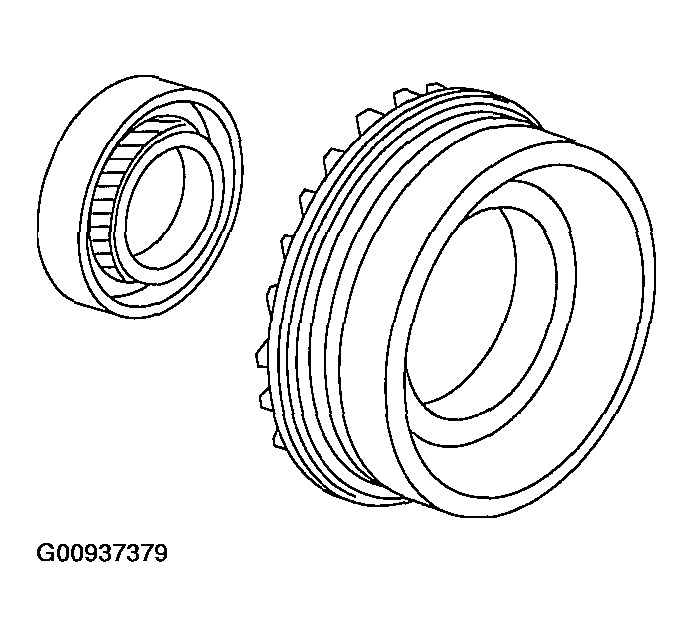

Fig 2: Identifying Oil Seal

G00937379

Courtesy of SUBARU OF AMERICA, INC.
