Manual Transmission And Differential
›
General Description
›
Components
›
Drive Pinion Assembly
Drive Pinion Assembly

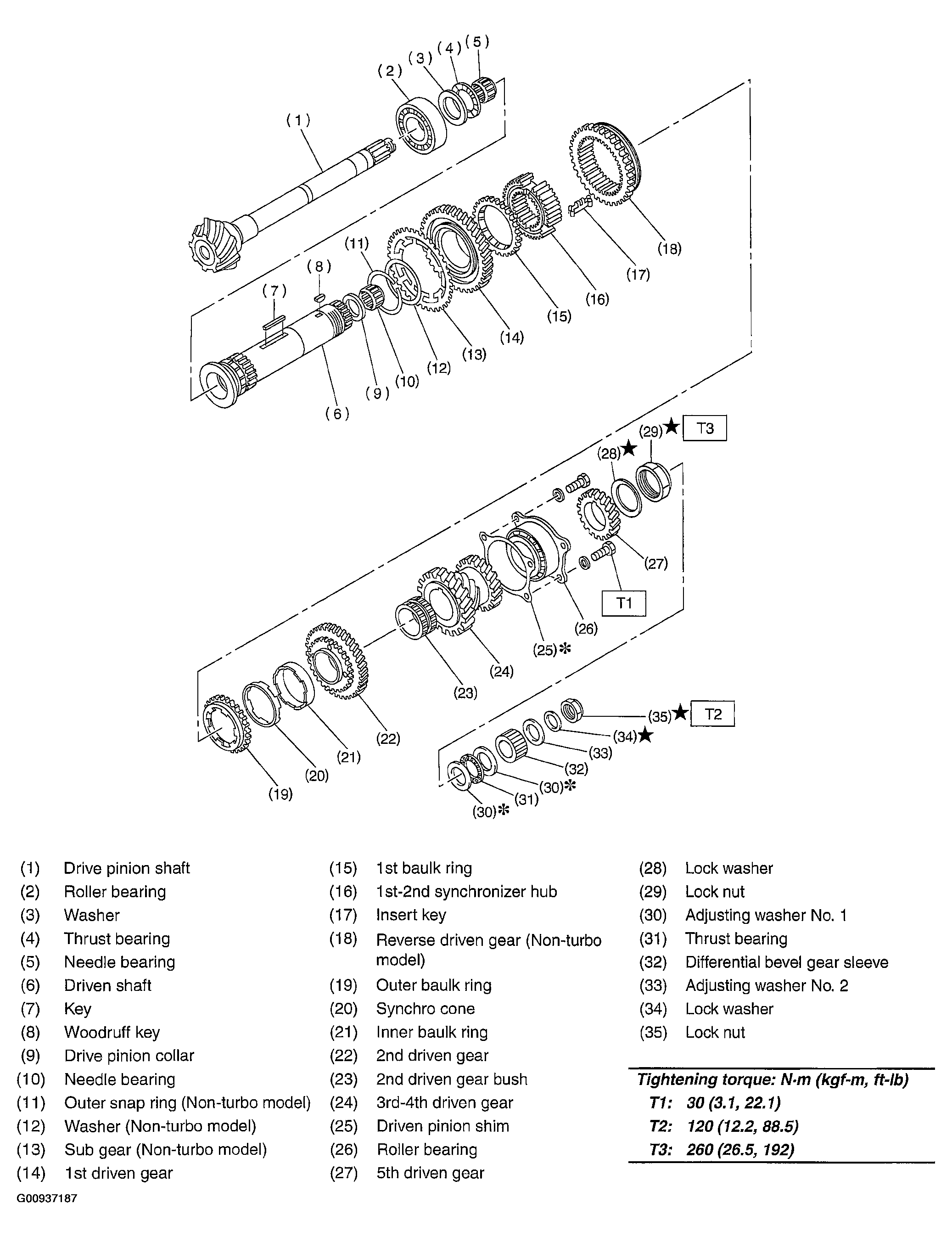

Fig 1: Exploded View Of Drive Pinion Assembly Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
