Manual Transmission And Differential
›
General Description
›
Components
›
Transfer Case And Extension
Transfer Case And Extension

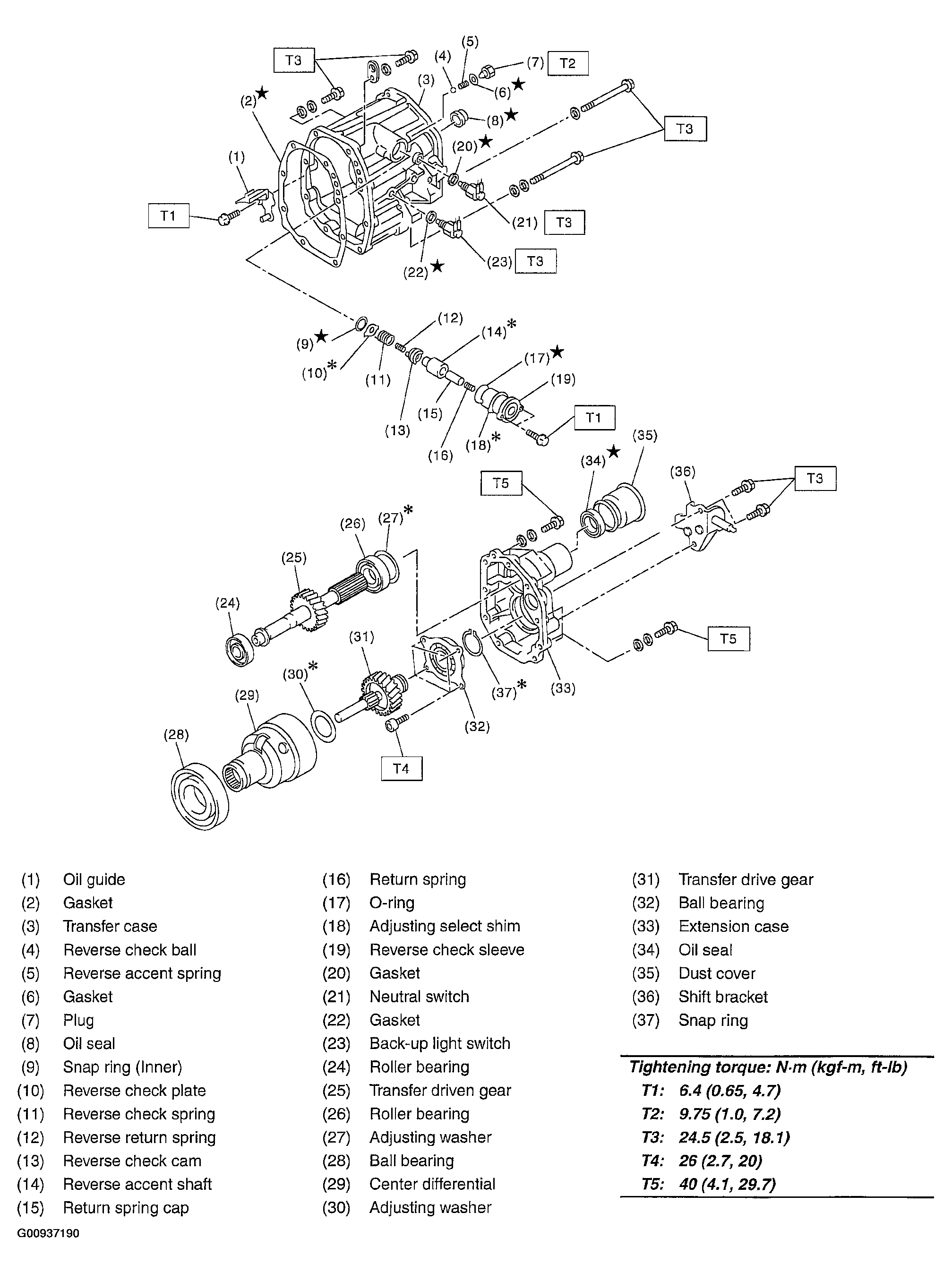

Fig 1: Exploded View Of Transfer Case And Extension Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
