Front Differential

  1. Bevel gear to pinion backlash: 0.13 - 0.18 mm (0.0051 - 0.0071 in)

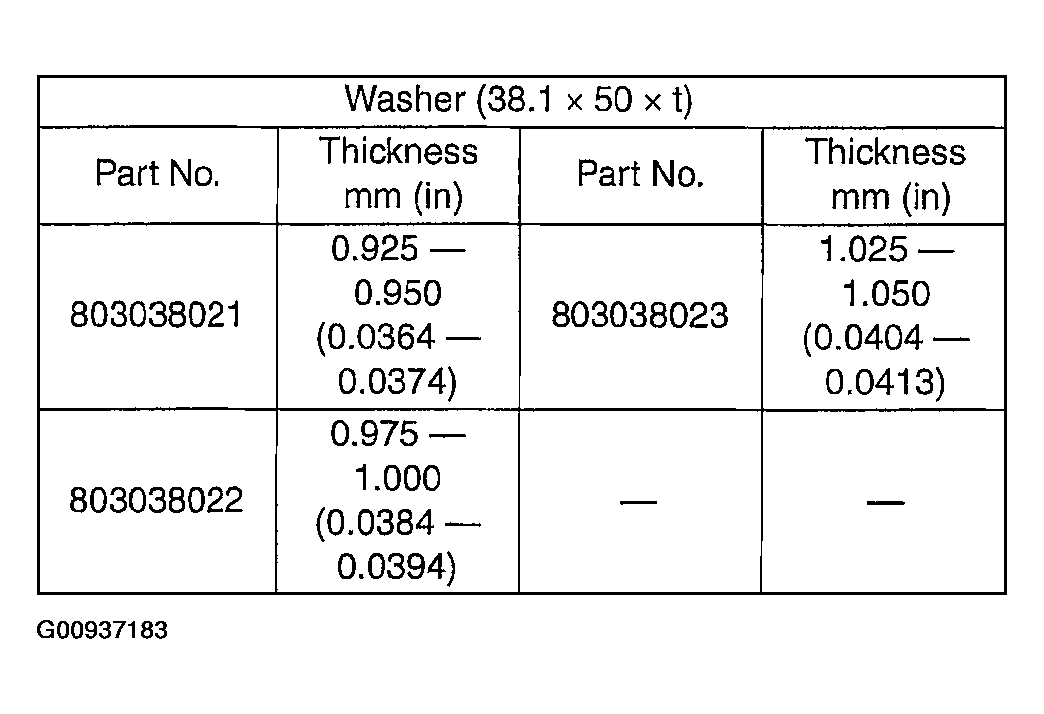

Fig 1: Washer Reference Chart
G00937183Courtesy of SUBARU OF AMERICA, INC.
