Fuel Damper Valve: Removal

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Operation, Fuel.>
Remove the fuel damper valve from the fuel return line.

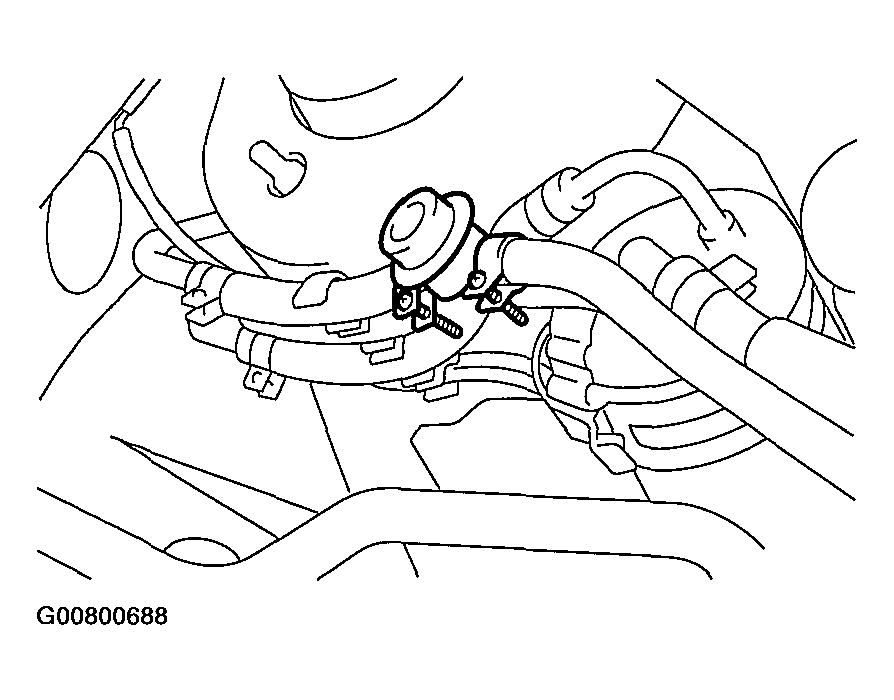

Fig 1: Removing Fuel Damper Valve From Fuel Return Line
Courtesy of SUBARU OF AMERICA, INC.
