Fuel Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: The fuel level sensor is built in the fuel pump assembly.
  1. Remove the fuel pump assembly. < Ref. to REMOVAL , Fuel Pump . >
  2. Disconnect the connector from the fuel pump bracket.

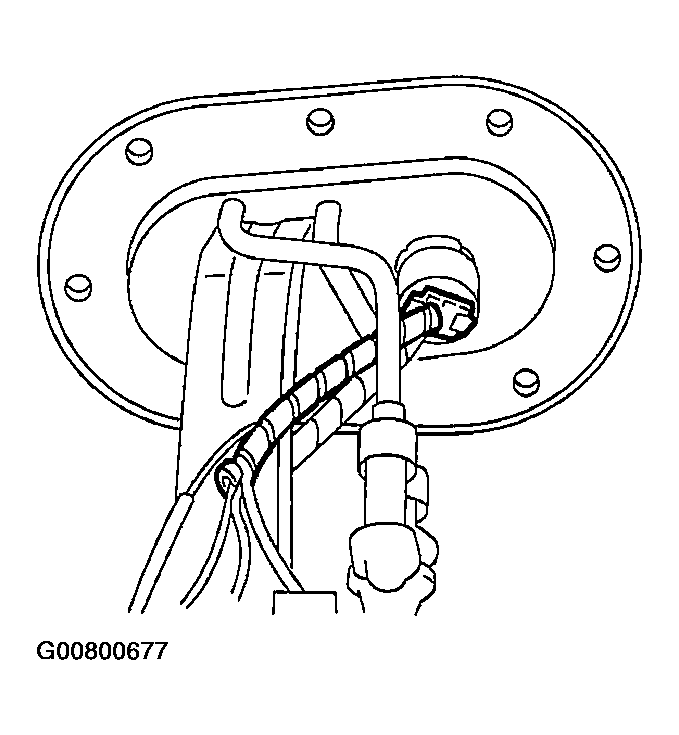

    Fig 1: Disconnecting Connector From Fuel Pump Bracket
    G00800677Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt which installs the fuel level sensor on the mounting bracket.
    Fig 2: Removing Bolt From Fuel Level Sensor On Mounting Bracket
    G00800678Courtesy of SUBARU OF AMERICA, INC.
