Fuel Injection (Fuel Systems) (H4SO)
›
General Description
›
Components
›
Air Intake System
Air Intake System

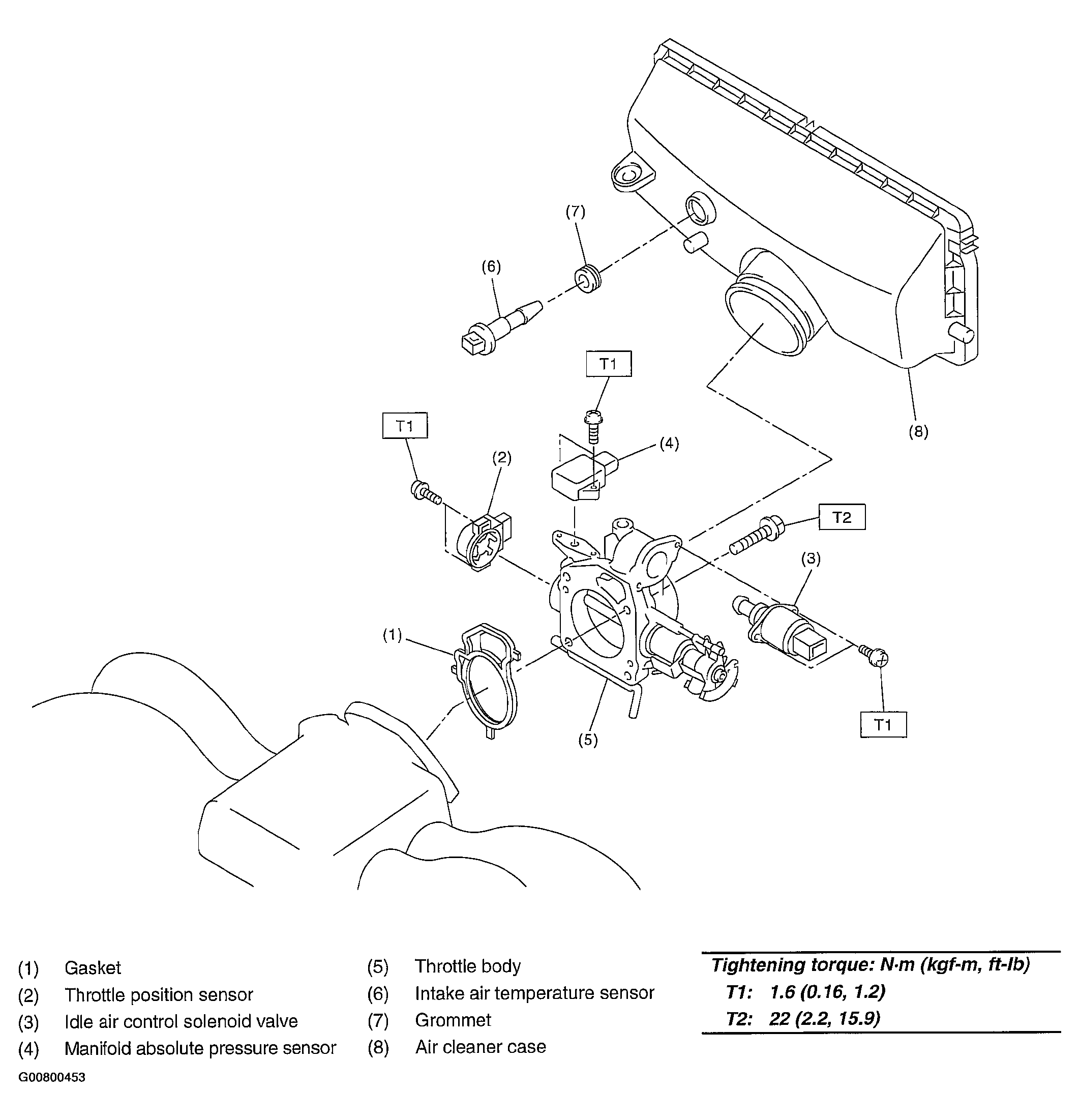

Fig 1: Exploded View Of Air Intake System With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
