Automatic Transmission - Mechanism & Function
›
Electrohydraulic Control System
›
Input Signals
Input Signals

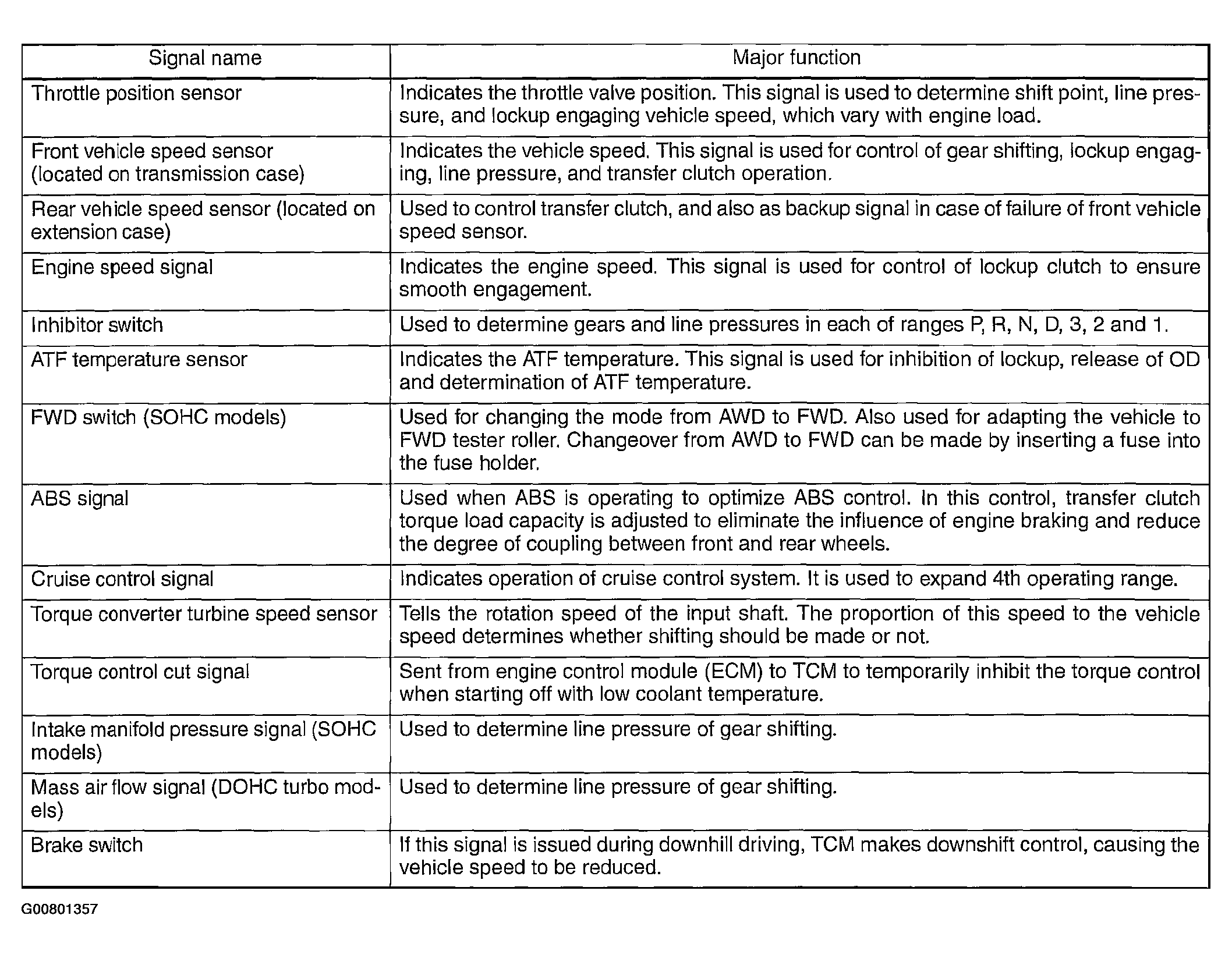

Fig 1: Input Signals Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
