Automatic Transmission - Mechanism & Function
›
Transmission Control Module (TCM)
›
Control System
›
VTD Models
VTD Models

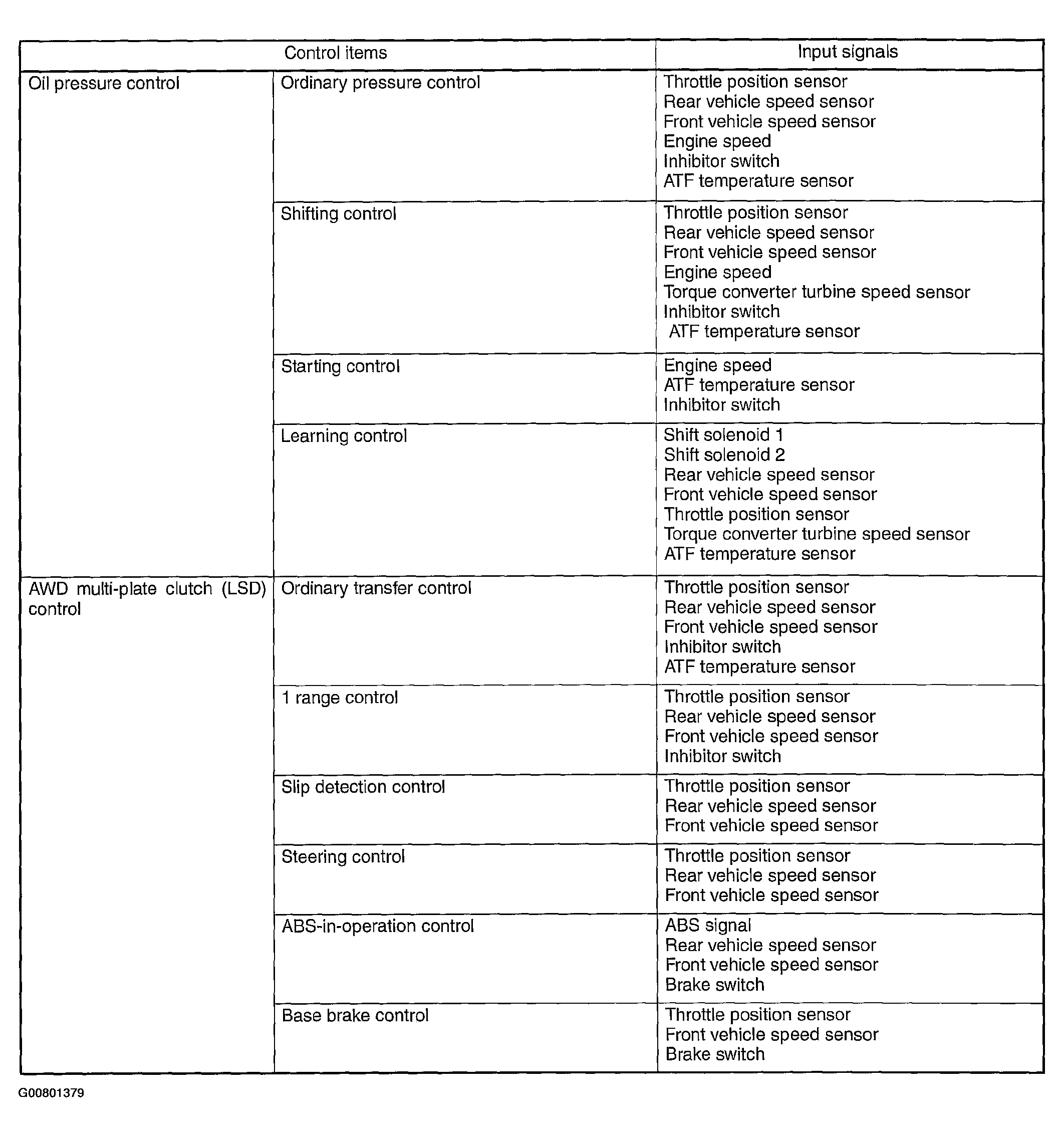

Fig 1: Identifying Control Item Specification Chart (VTD Models) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Control Item Specification Chart (VTD Models) (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
