Automatic Transmission - Mechanism & Function
›
Transmission Control Module (TCM)
›
Schematic Diagrams
›
SOHC Models
SOHC Models

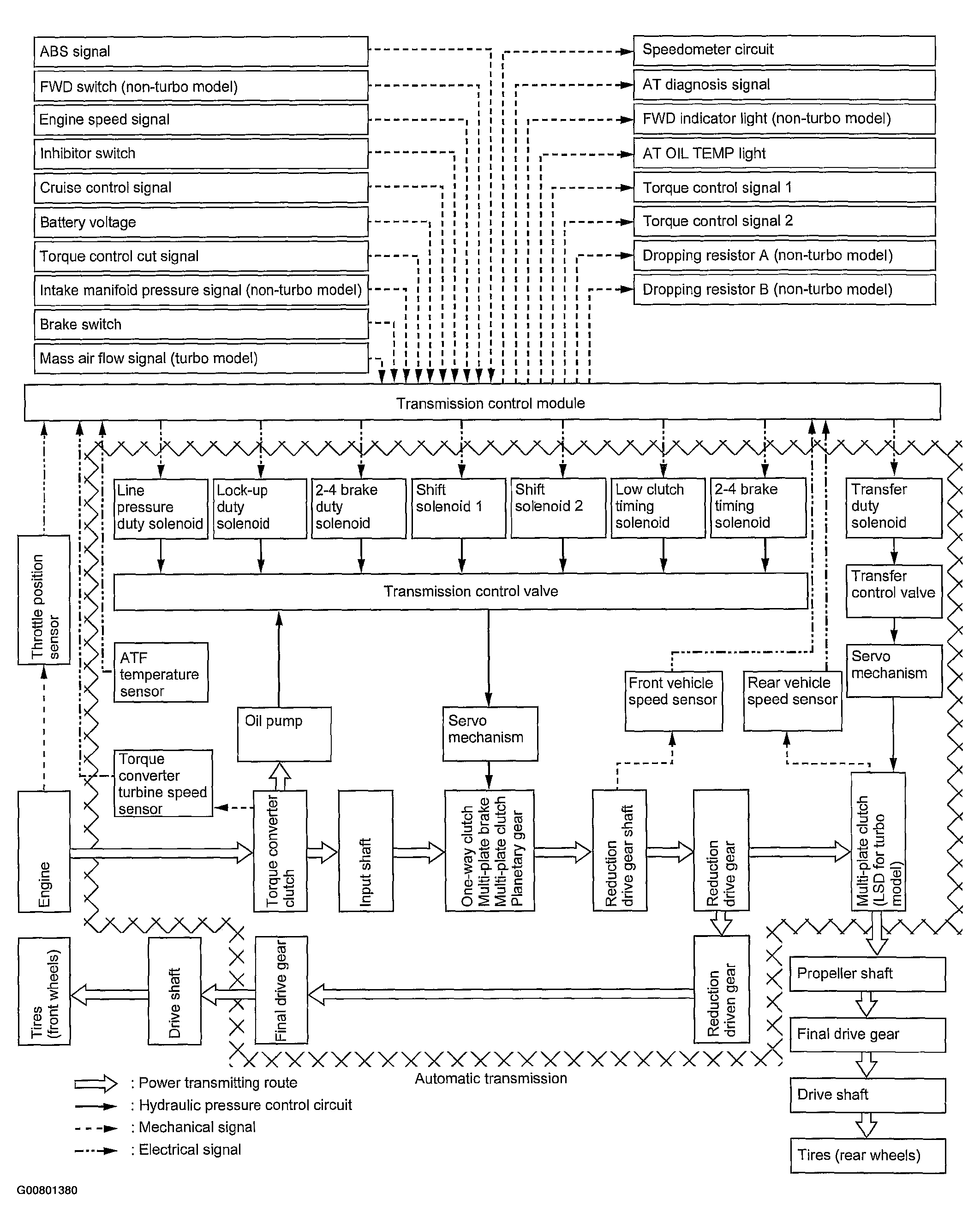

Fig 1: Identifying Schematic Diagrams (SOHC MODELS)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
