AT Shift Lock System
›
Inspection
›
Body Integrated Unit Power Supply And Ground Line
Body Integrated Unit Power Supply And Ground Line

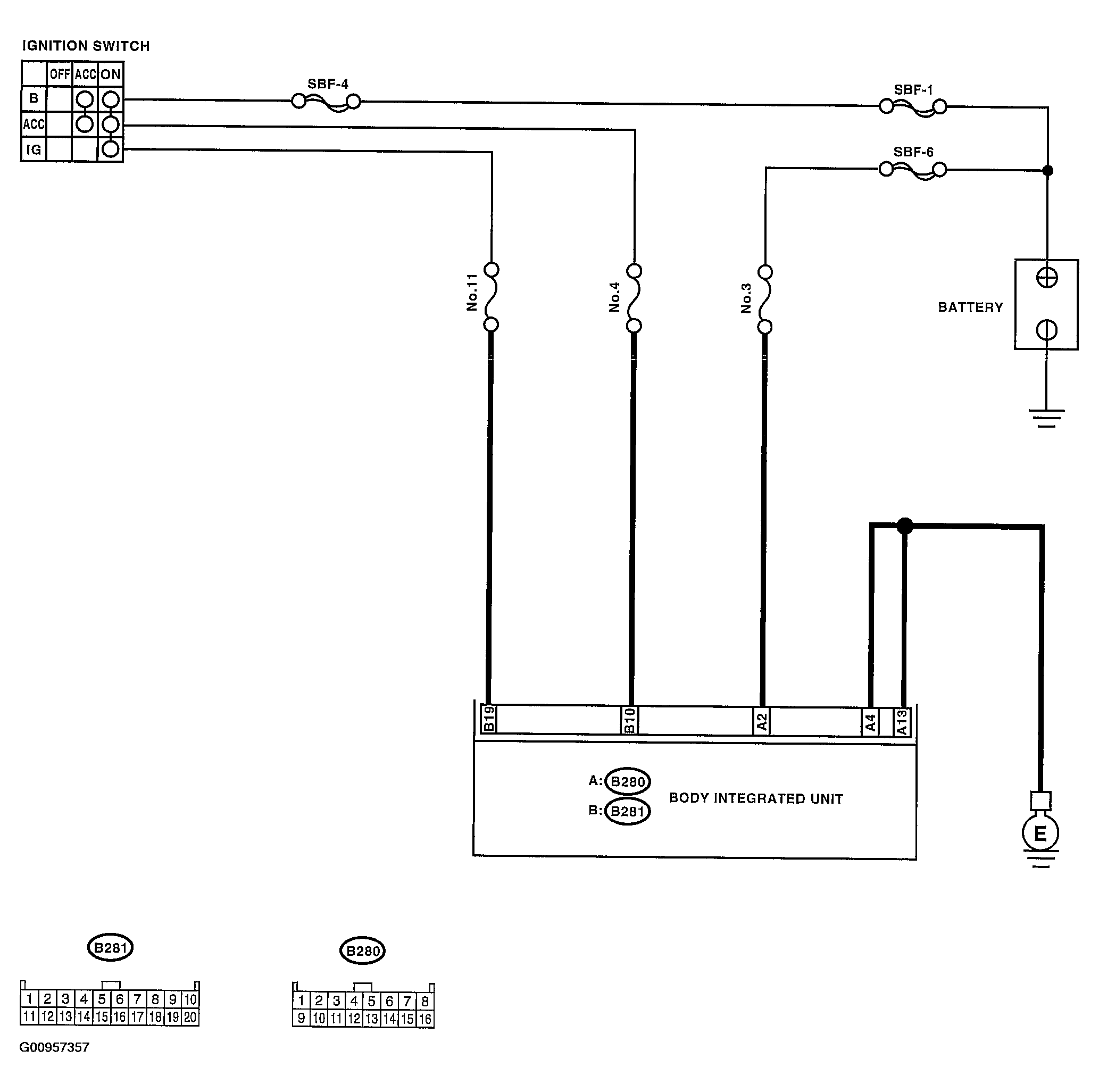

Fig 1: Schematic - Body Integrated Unit Power Supply & Ground Line
Courtesy of SUBARU OF AMERICA, INC.

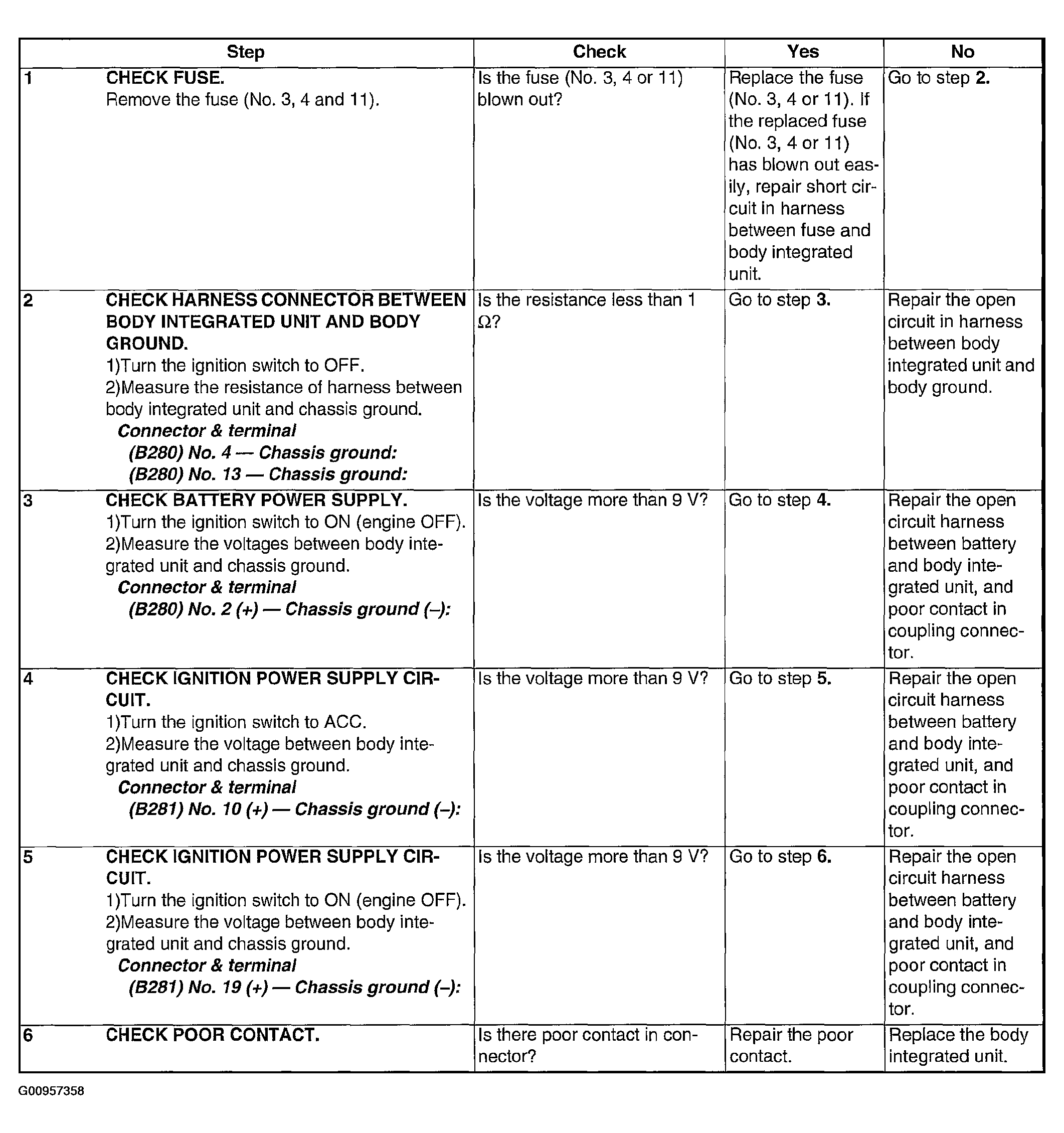

Fig 2: Body Integrated Unit Power Supply & Ground Line Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
