Key Interlock Does Not Lock Or Release

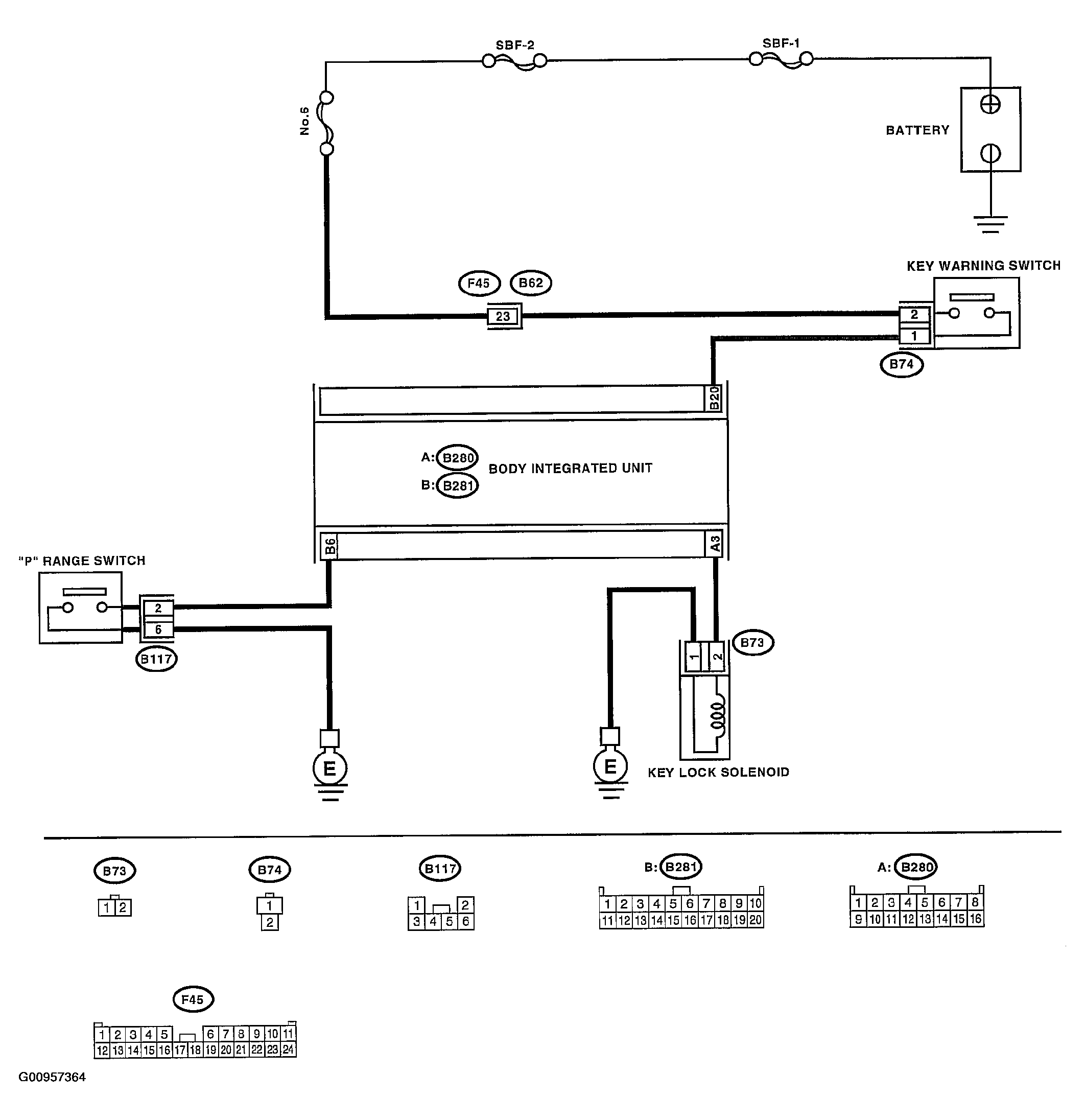

Fig 1: Schematic - Key Interlock Does Not Lock Or Release

Courtesy of SUBARU OF AMERICA, INC.

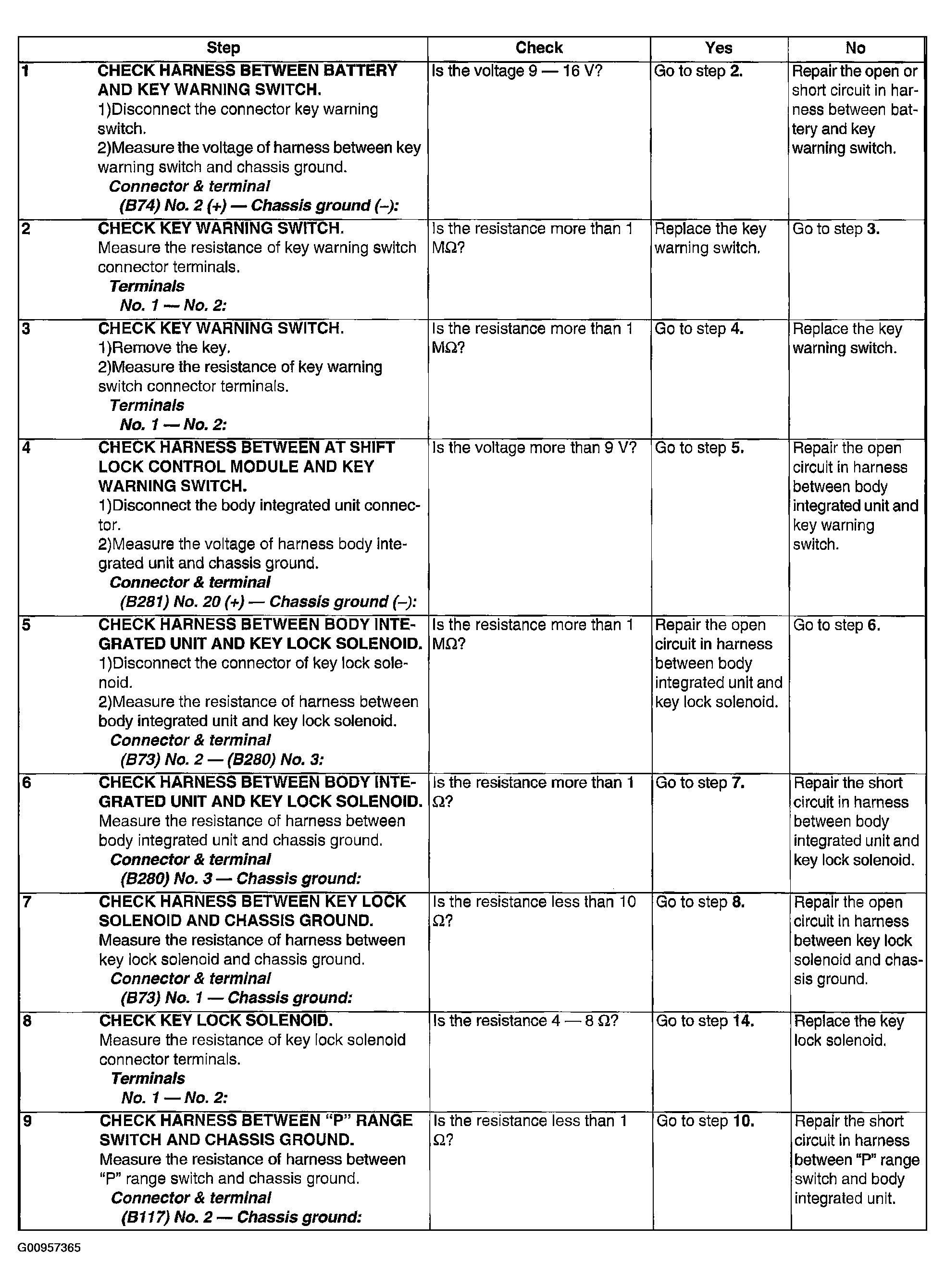

Fig 2: Key Interlock Does Not Lock Or Release Inspection Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

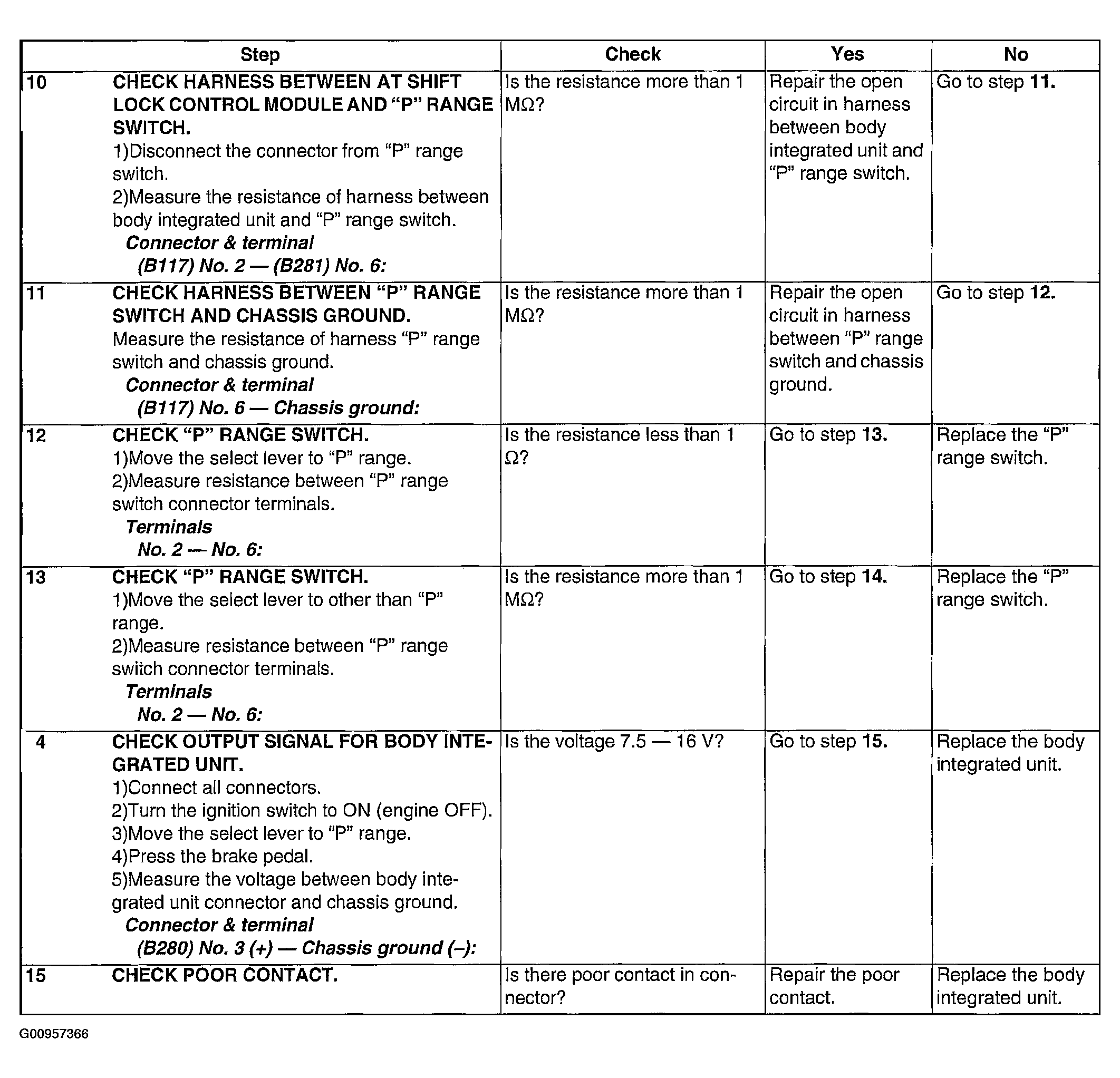

Fig 3: Key Interlock Does Not Lock Or Release Inspection Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
