Select Lever Cannot Be Shift Locked

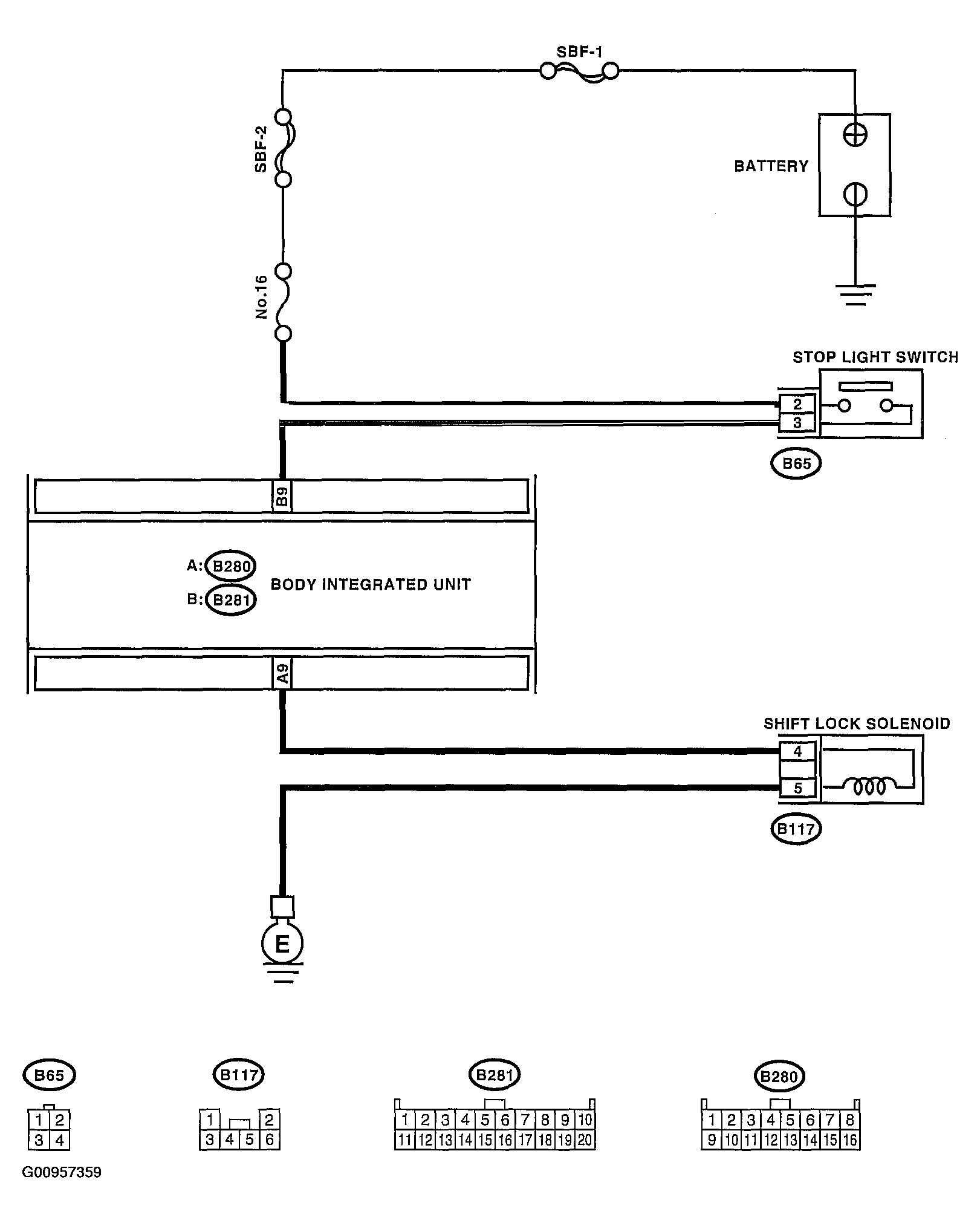

Fig 1: Schematic - Select Lever Cannot Be Shift Locked

Courtesy of SUBARU OF AMERICA, INC.

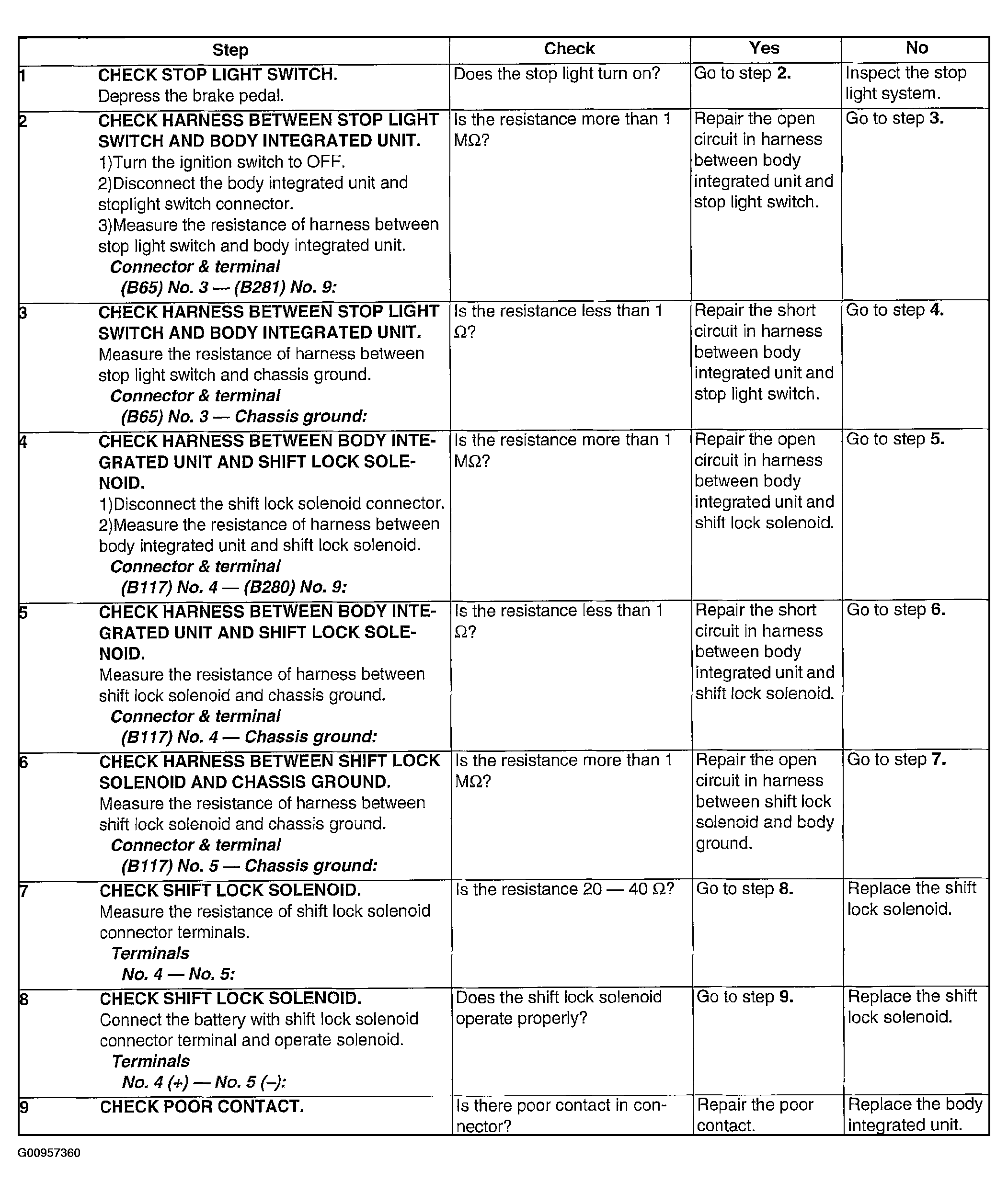

Fig 2: Select Lever Cannot Be Shift Locked Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.
