FixVault
Home
›
Subaru
›
2004
›
Impreza RS, Automatic
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
A/T Control System & M/T Control System
›
General Diagnostic Table
›
Inspection
General Diagnostic Table: Inspection

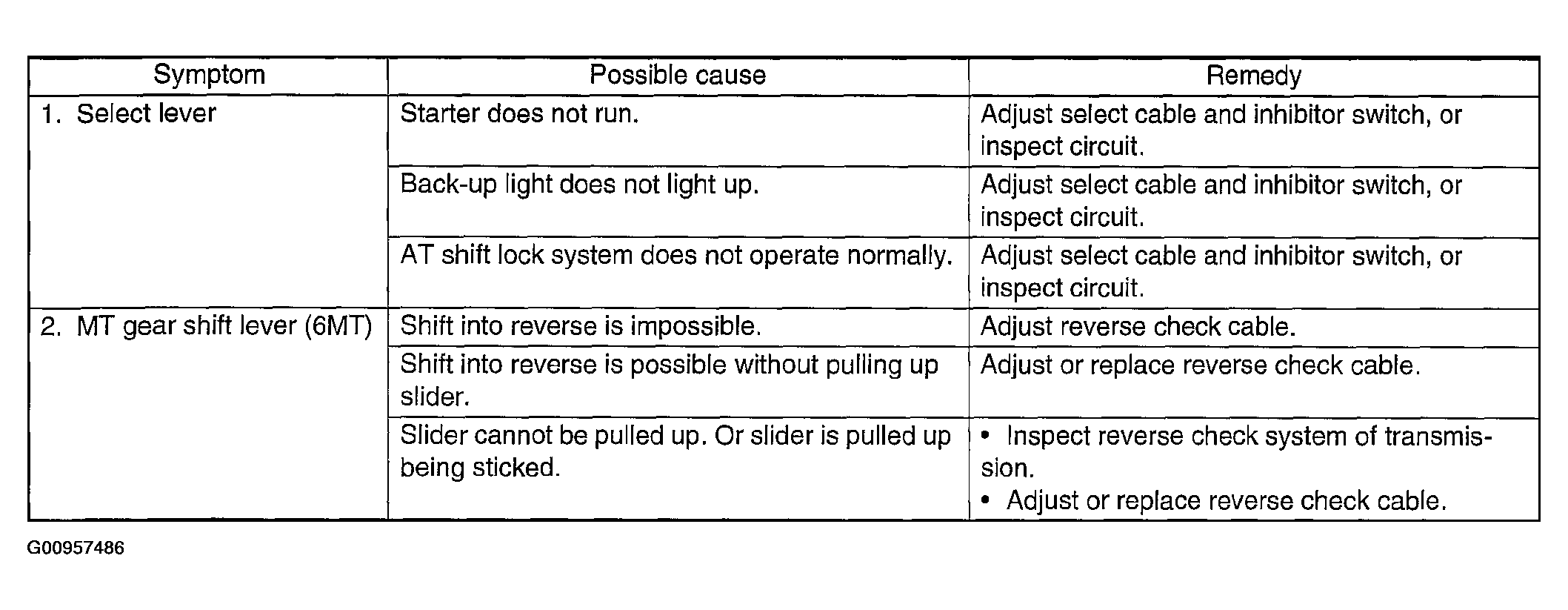

Fig 1: General Diagnostic Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
