STi MODEL

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL .

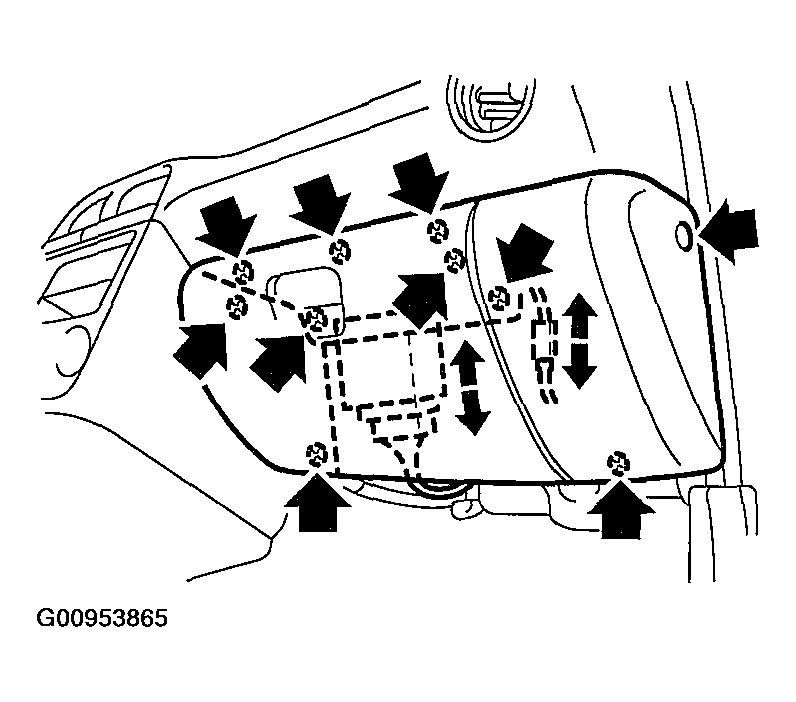

    Fig 1: Removing Glove Box.
    G00953865Courtesy of SUBARU OF AMERICA, INC.
  3. Remove a bolt (A) and disconnect the connector, and then remove the security control module.

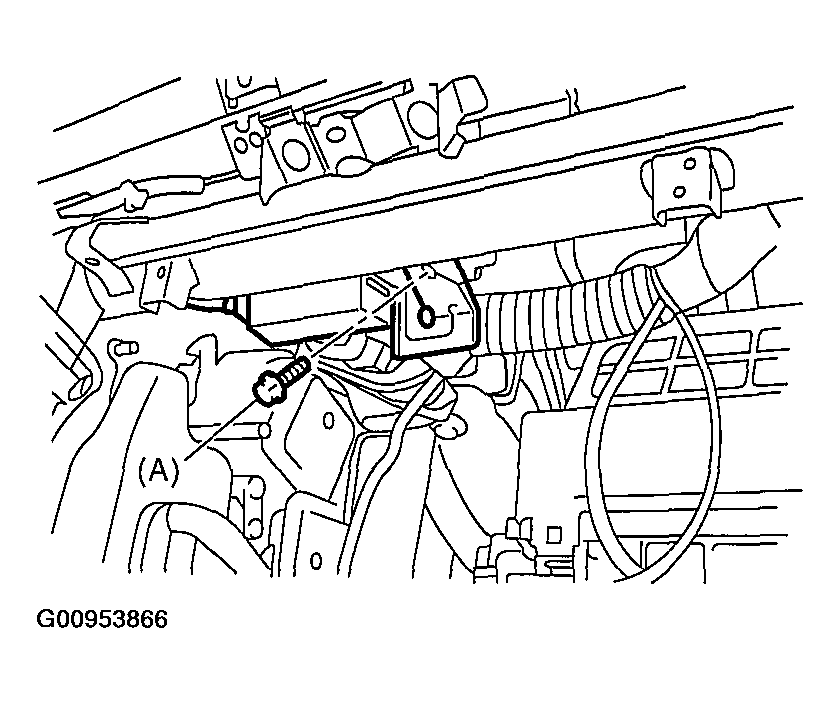

Fig 2: Removing Bolt And Security Control Module
G00953866Courtesy of SUBARU OF AMERICA, INC.
