Control Module I/O Signal: Schematic

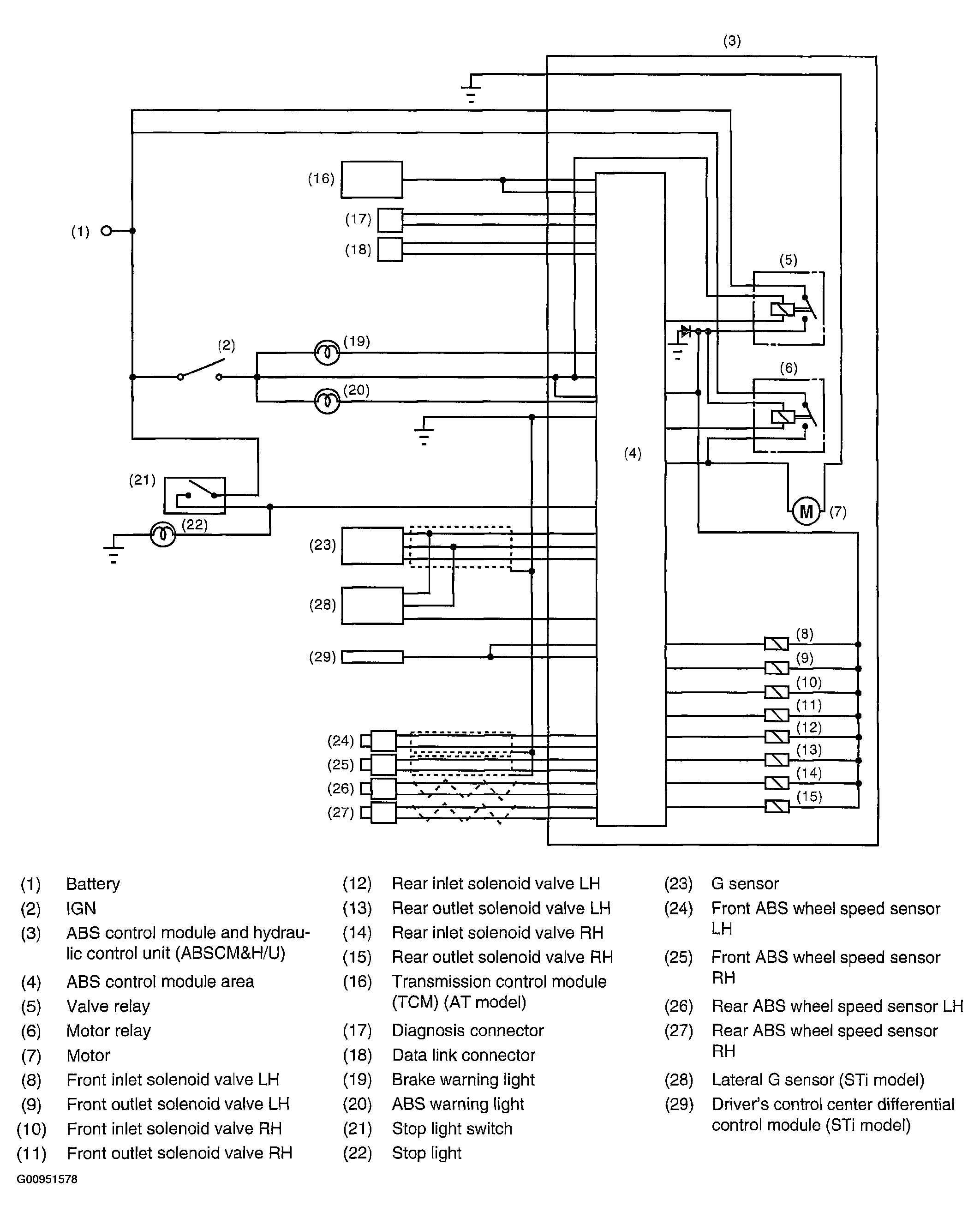

Fig 1: Identifying Schematic
G00951578Courtesy of SUBARU OF AMERICA, INC.
