Keyless Entry Control Module Connector End View
Keyless Entry Control Module Connector End View

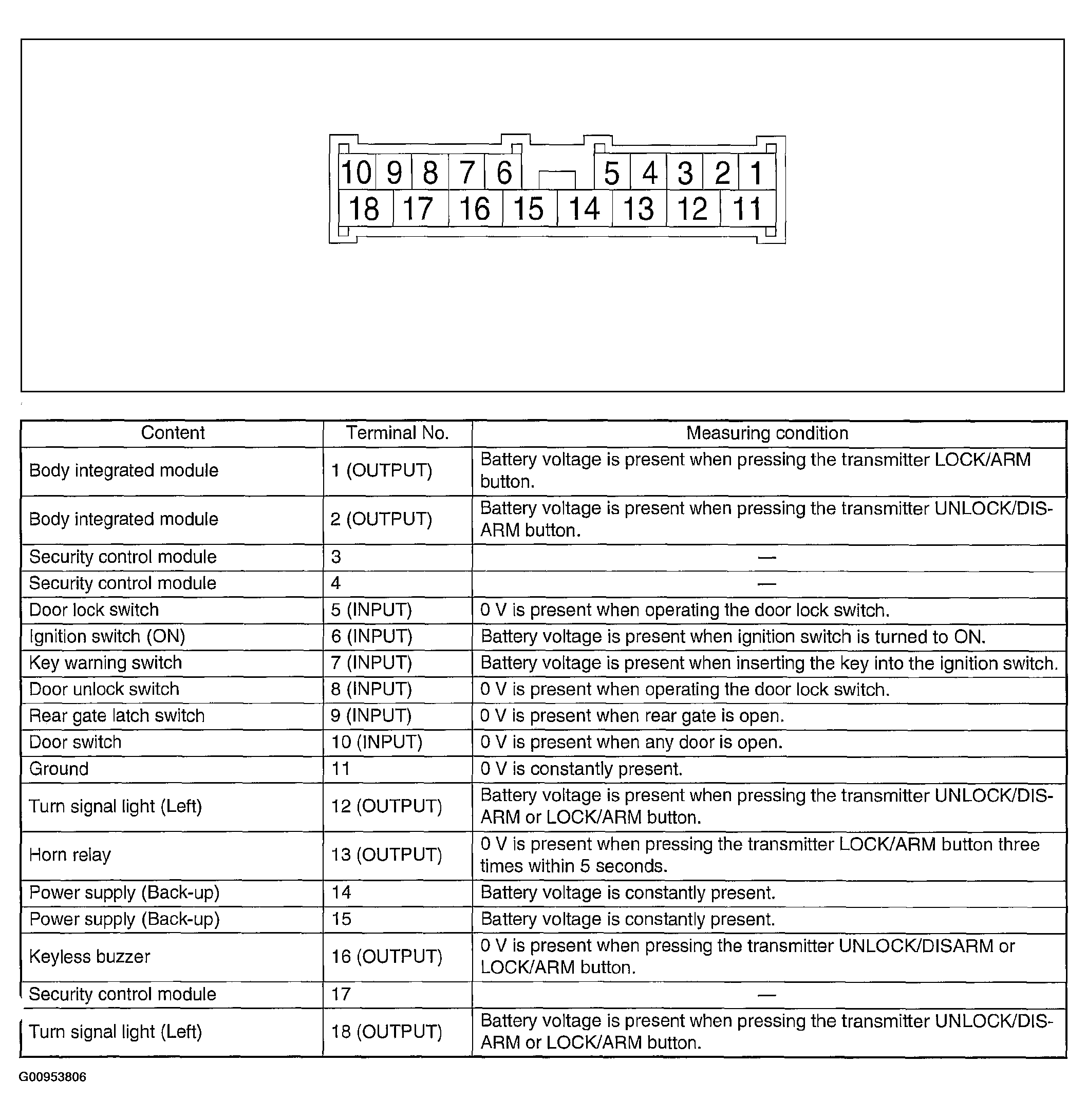

Fig 1: Keyless Entry Control Module Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
