Subaru
›
2004
›
Impreza RS, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine (Diagnostics) (H4SO)
›
Diagnostics for Engine Starting Failure
›
Control Module Power Supply And Ground Line
›
Diagnostic Chart:
Diagnostic Chart:

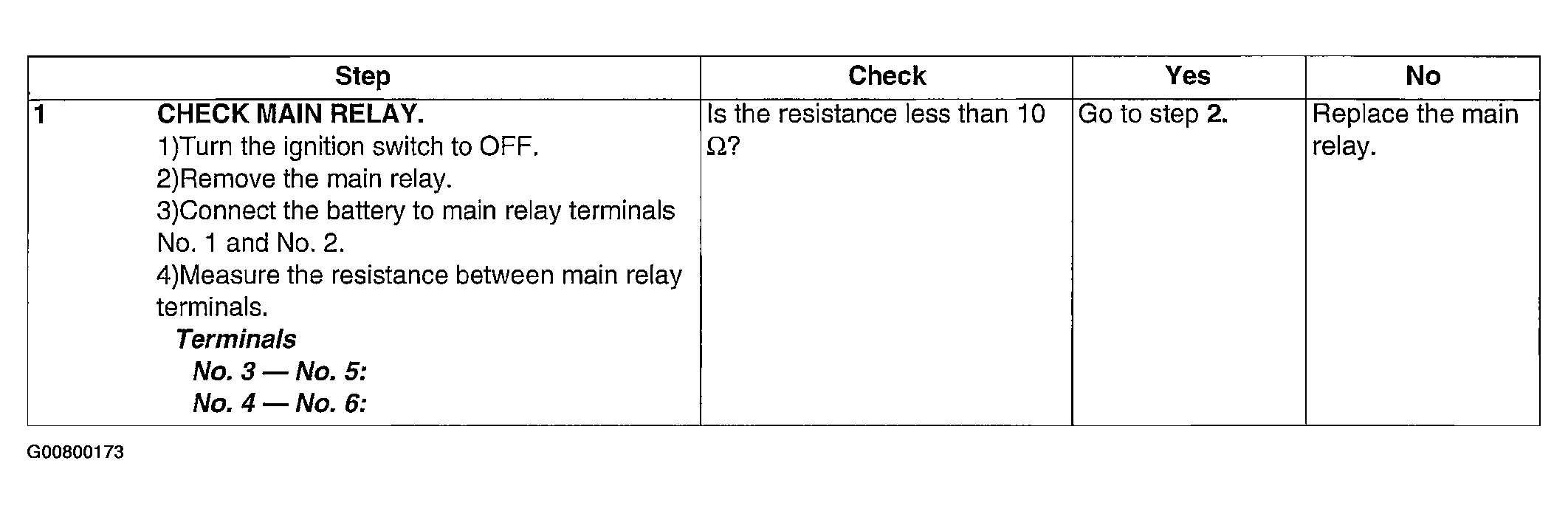

Fig 1: Control Module Power Supply And Ground Line - Diagnostic Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

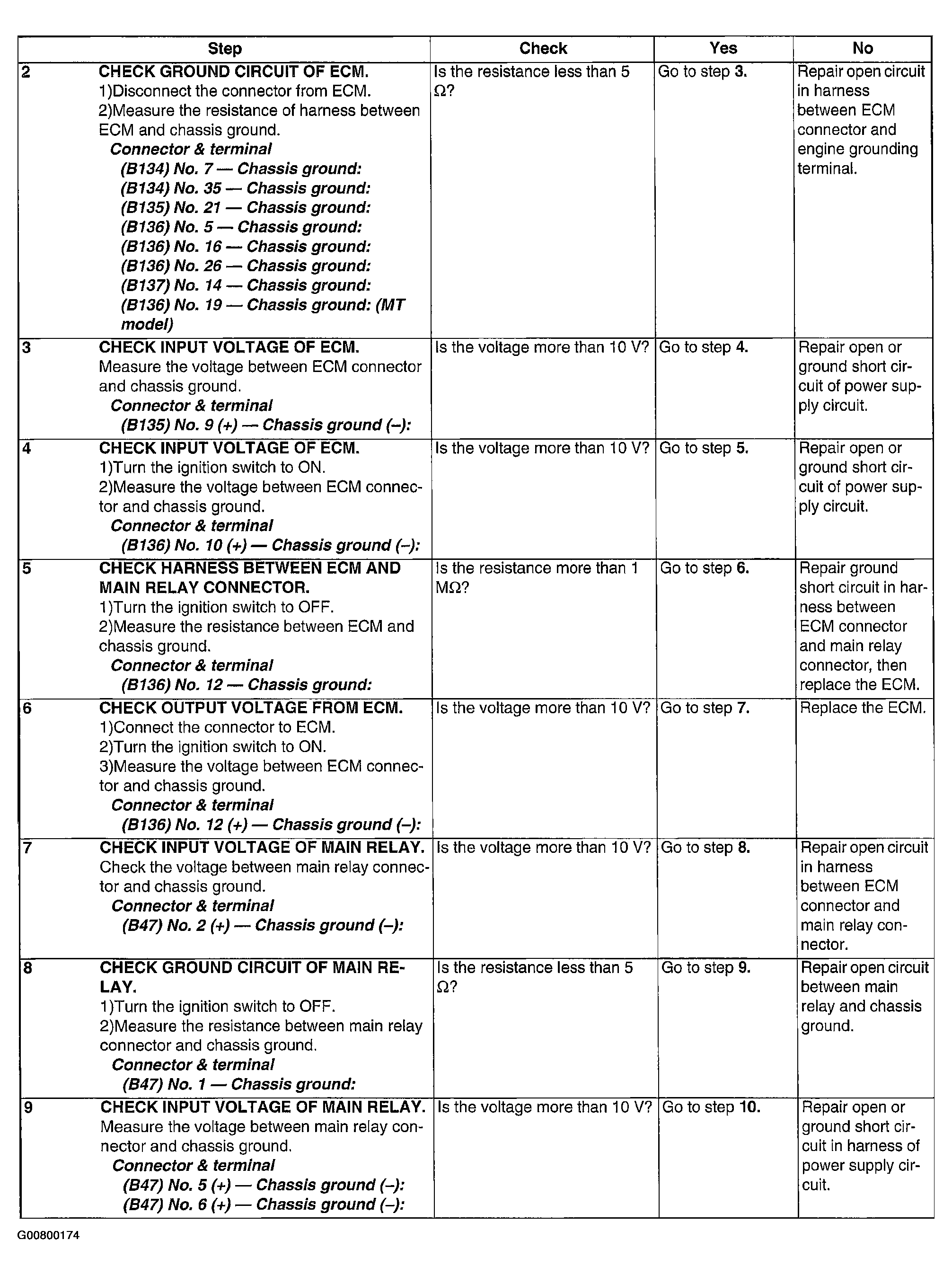

Fig 2: Control Module Power Supply And Ground Line - Diagnostic Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

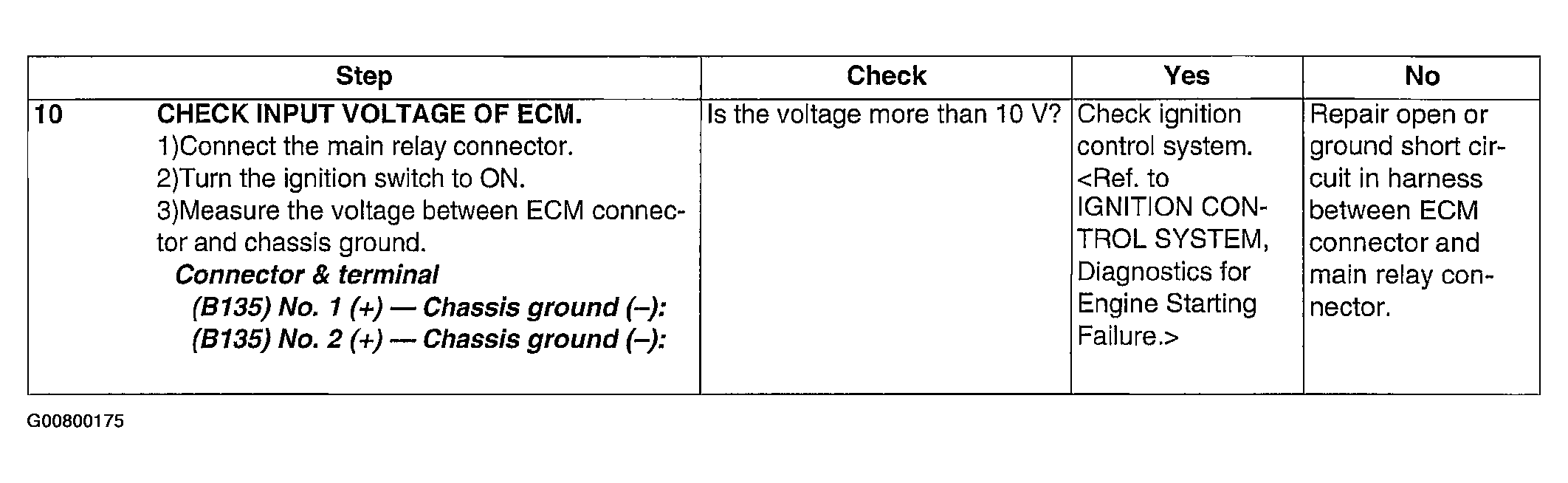

Fig 3: Control Module Power Supply And Ground Line - Diagnostic Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
