Side Retainer

  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.

    ST 499797000 INSTALLER

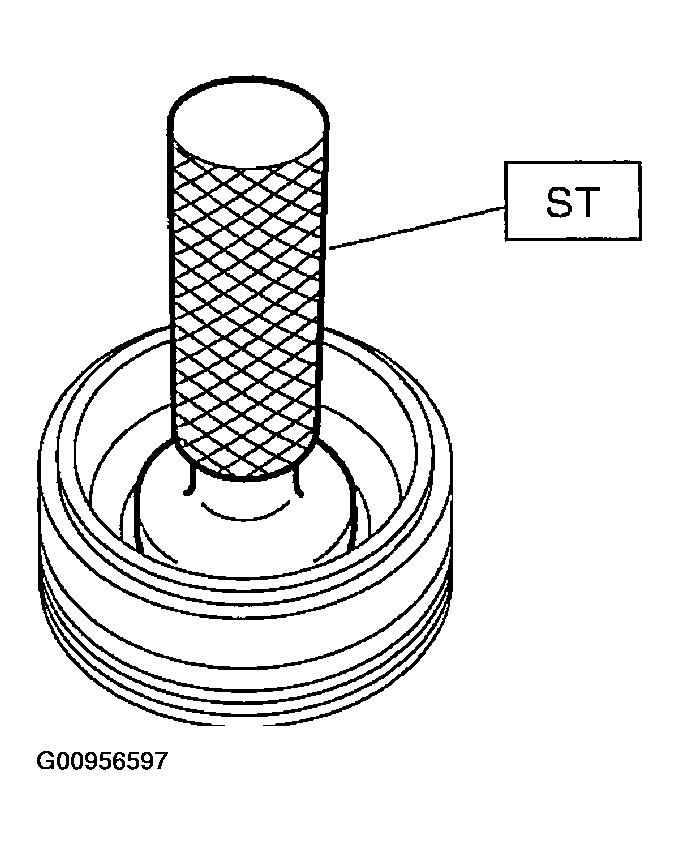

    Fig 1: Installing Bearing Outer Race To Side Retainer
    G00956597Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.
    Fig 2: Installing O-Ring
    G00956598Courtesy of SUBARU OF AMERICA, INC.
