Transmission Control Module (TCM): Installation

Install the TCM.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

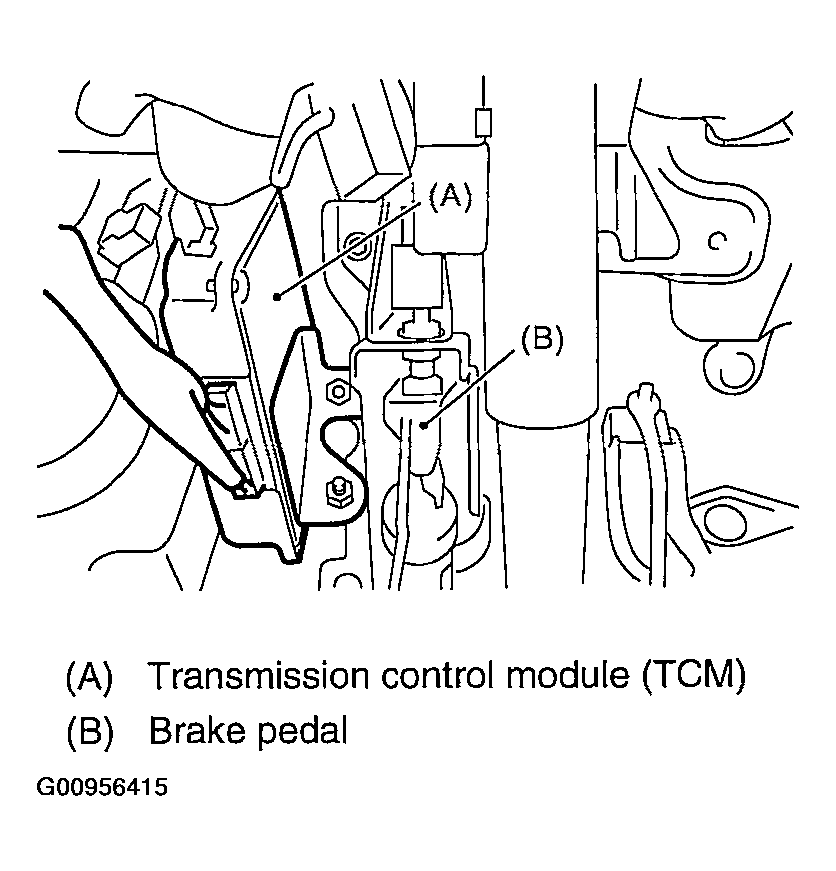

Fig 1: Installing TCM
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to TCM.
Install in the reverse order of removal.
