Diagnostics for Engine Starting Failure
›
Ignition Control System
›
Diagnostic Chart:
Diagnostic Chart:

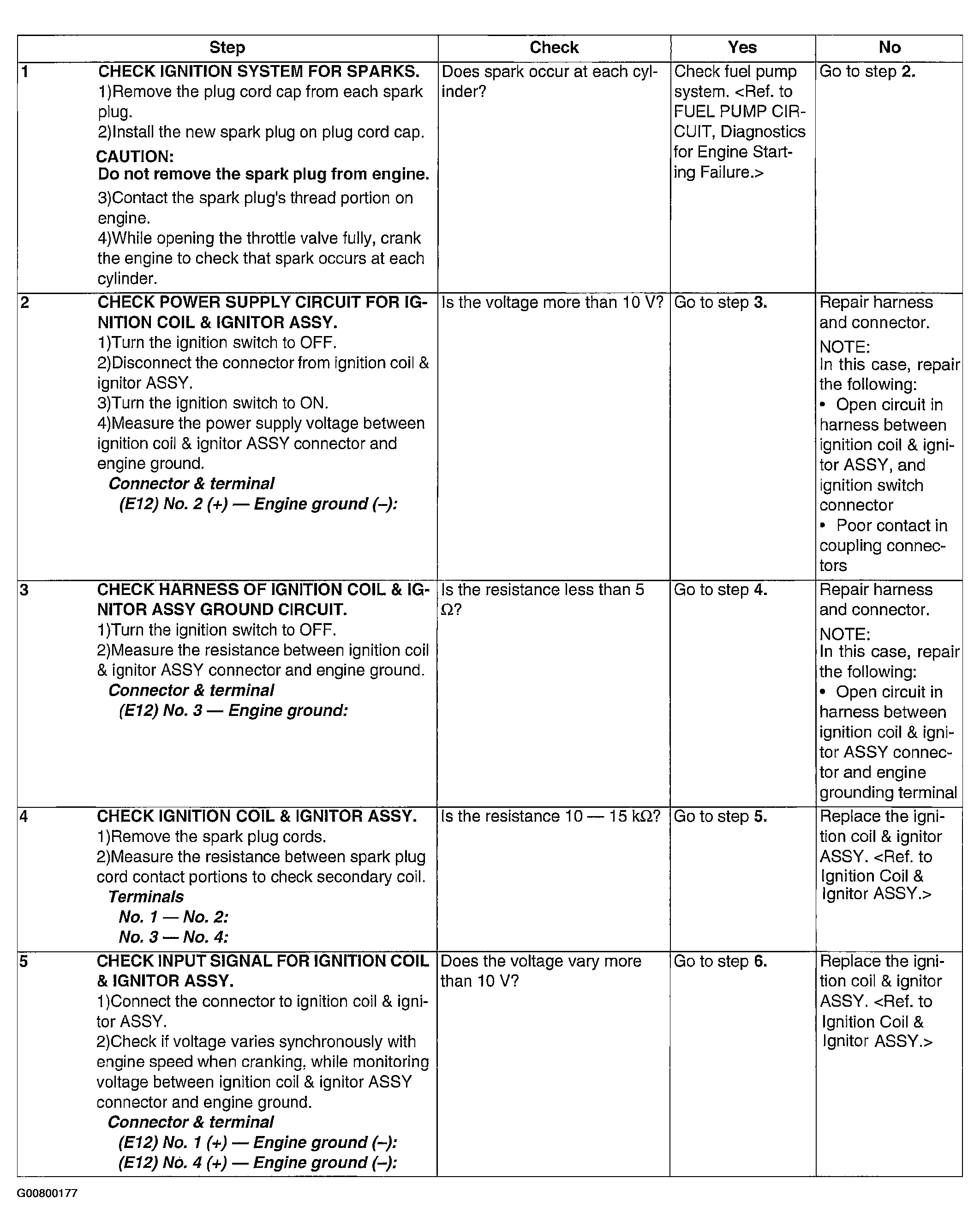

Fig 1: Ignition Control - Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

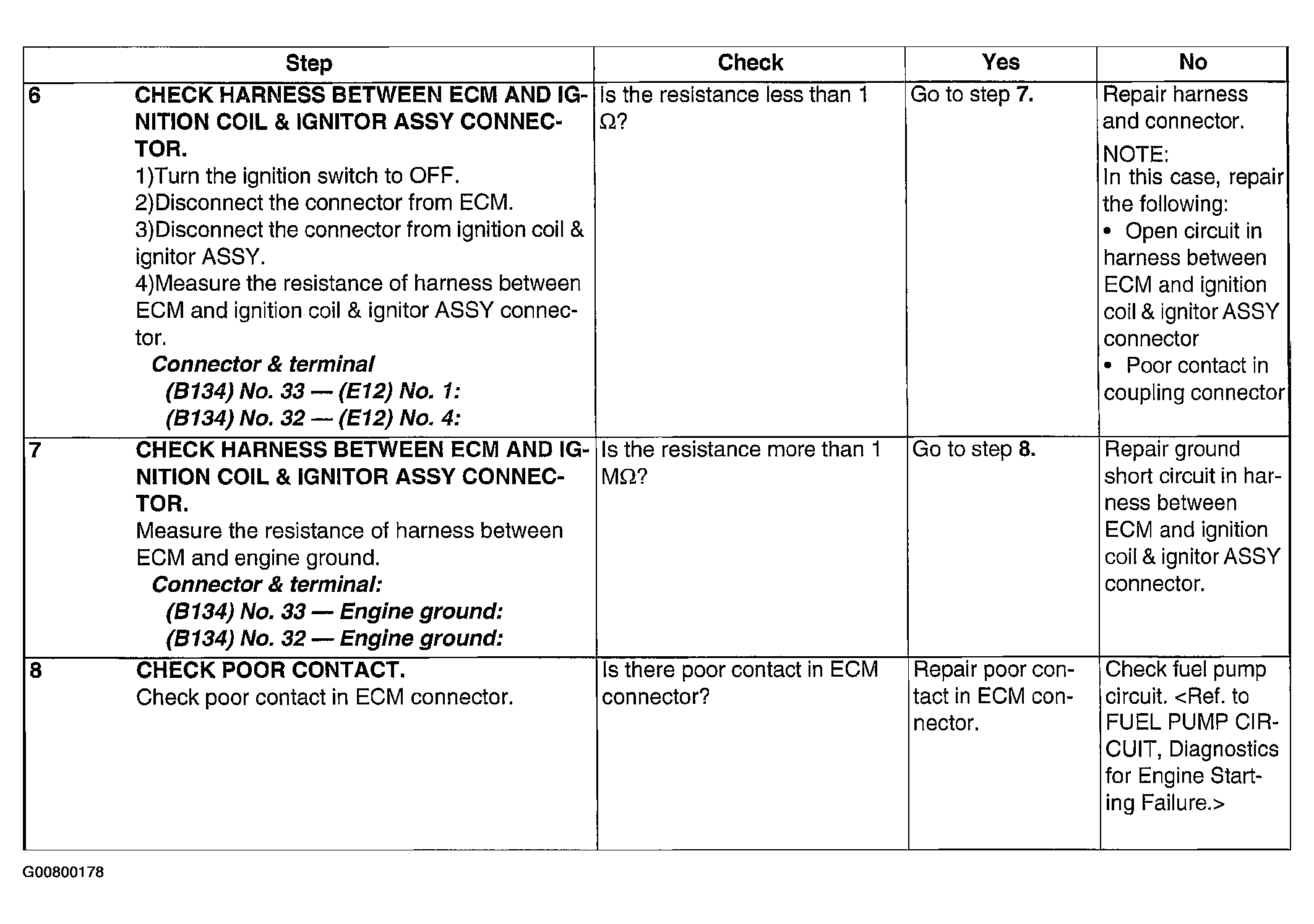

Fig 2: Ignition Control - Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
