Mode $06

Refer to test value of troubleshooting and data of test limit on support data bit sequence table. List of support data is shown in the following table.

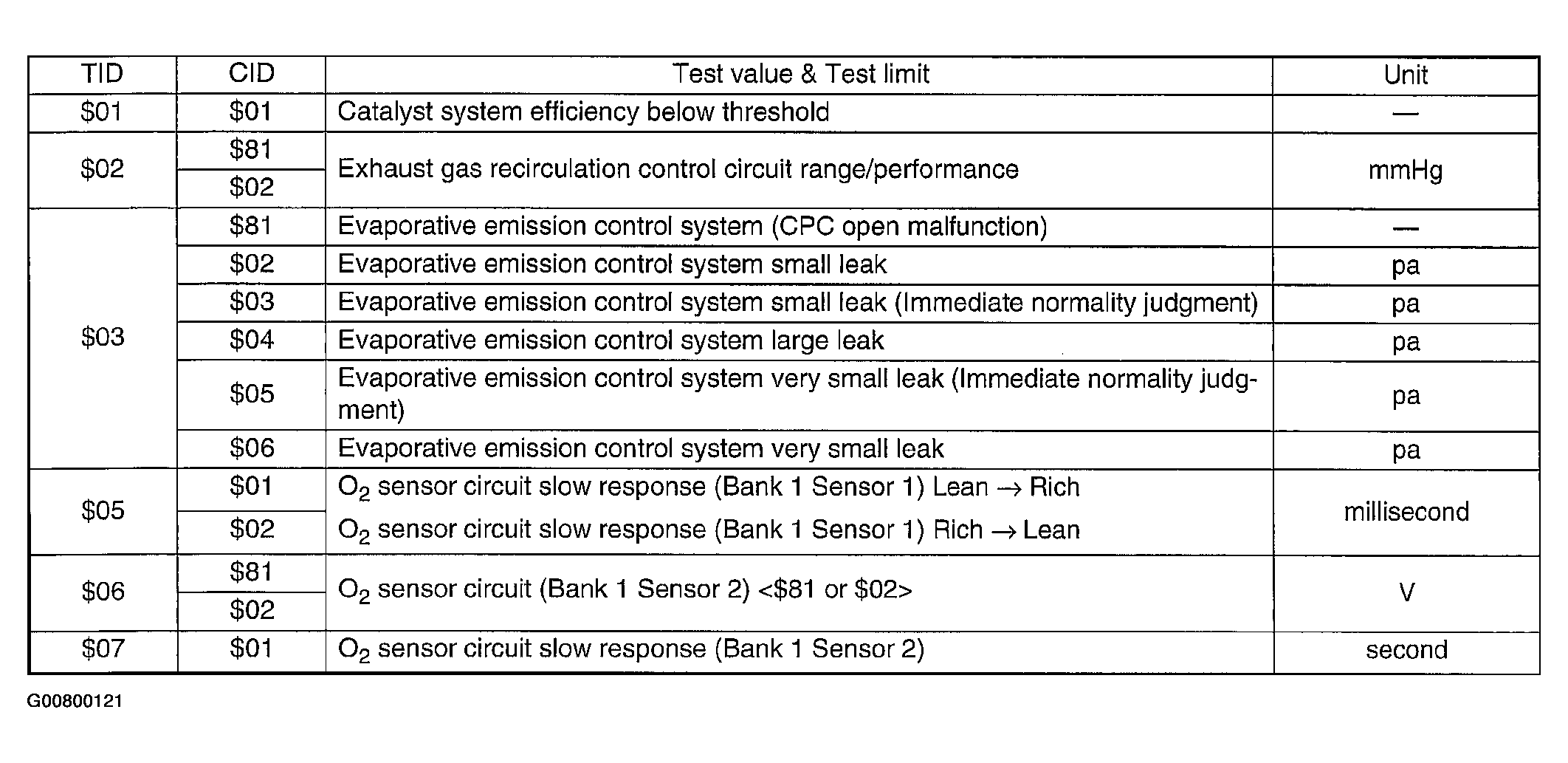

Fig 1: Support Data Bit Sequence Table (Mode $06) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

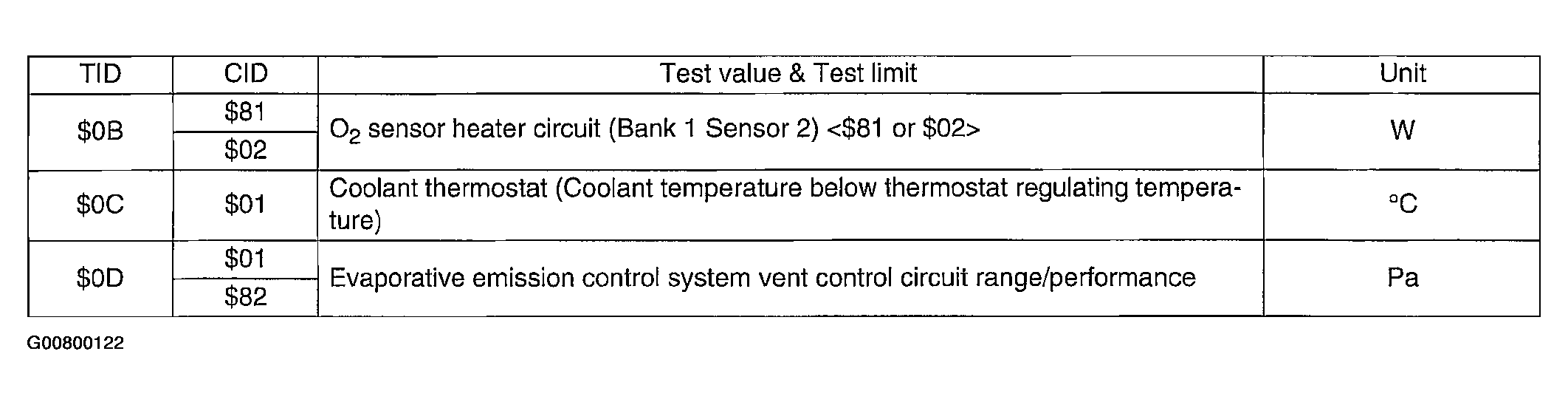

Fig 2: Support Data Bit Sequence Table (Mode $06) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
