Fuel Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill the fuel.
NOTE: Fuel level sensor is built in fuel pump assembly.
  1. Remove the fuel pump assembly. < Ref. to REMOVAL . >
  2. Disconnect the connector from the fuel pump bracket.

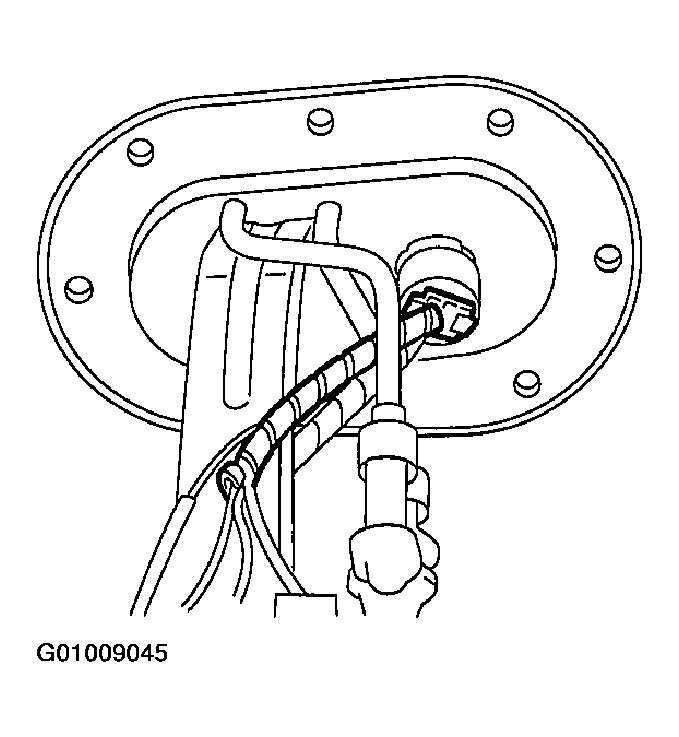

    Fig 1: Disconnecting Connector From Fuel Pump Bracket
    G01009045Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt which installs the fuel level sensor on mounting bracket.
    Fig 2: Removing & Installing Fuel Level Sensor On Mounting Bracket
    G01009046Courtesy of SUBARU OF AMERICA, INC.
