Engine Control Module (ECM) I/O Signal: Measurement: Waveform

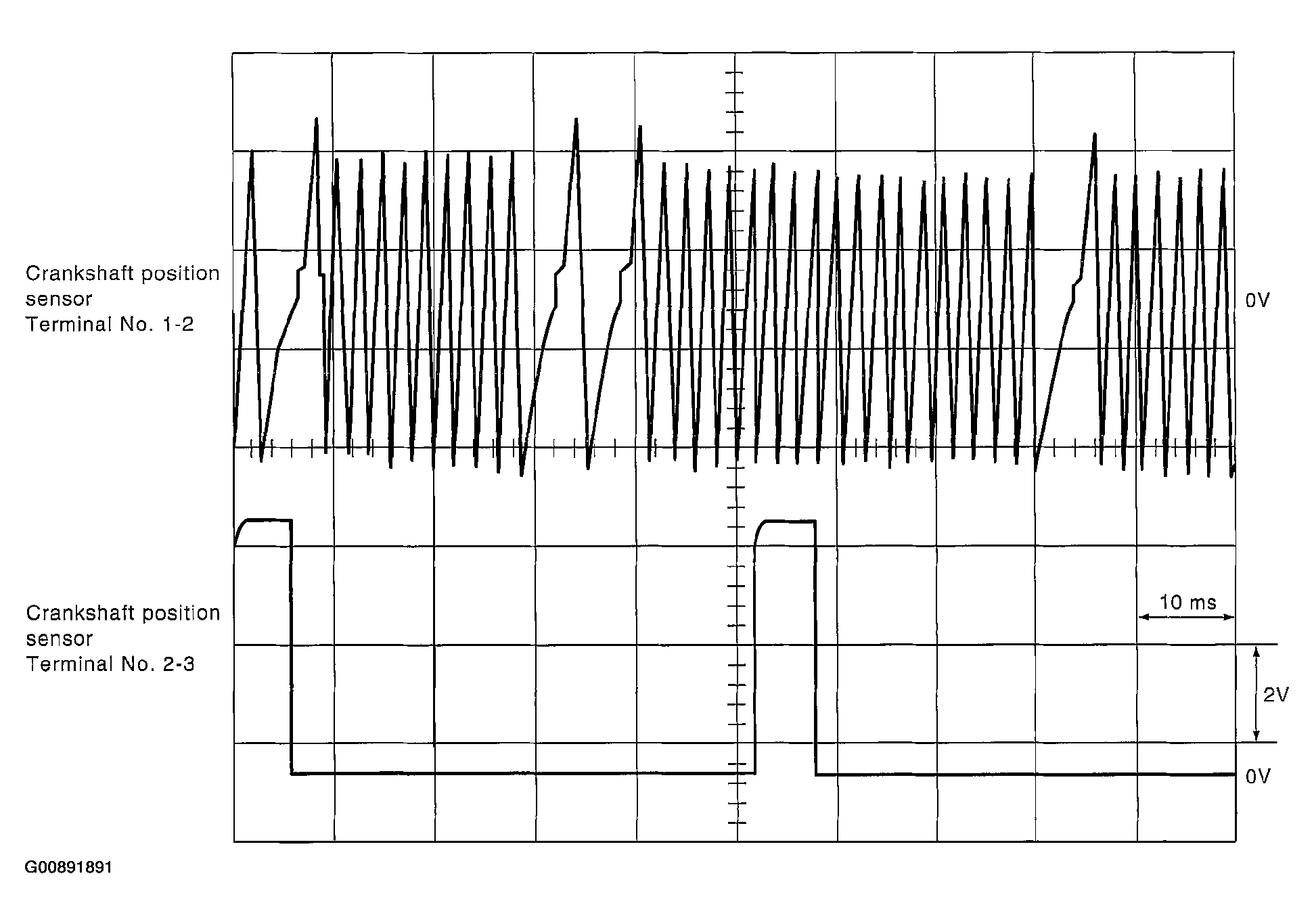

Fig 1: Input/Output Signal Voltage Waveform Graph
G00891891Courtesy of SUBARU OF AMERICA, INC.
