With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.

Check list for interview. Refer to WITH SUBARU SELECT MONITOR , List of Diagnostics trouble Code (DTC).

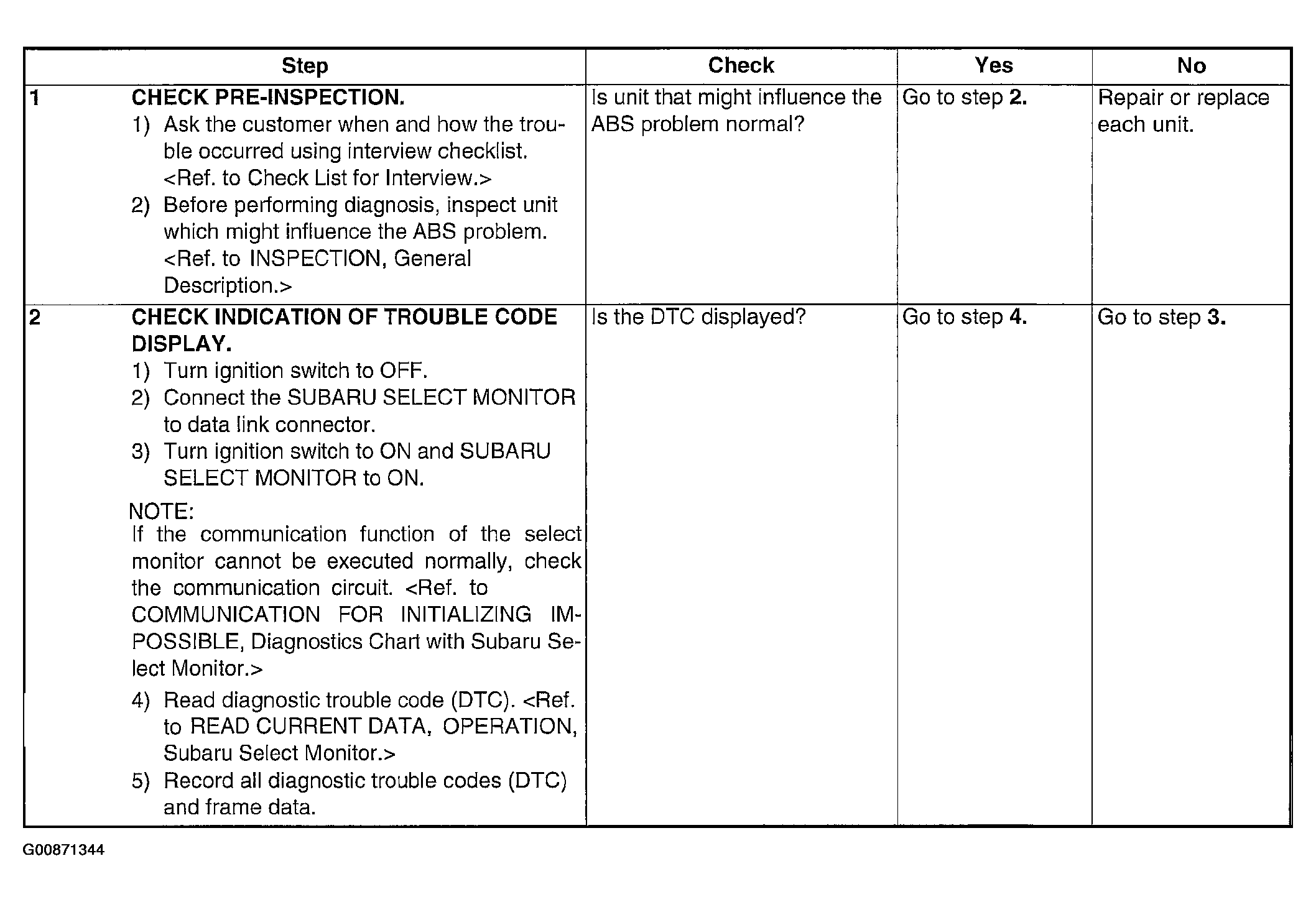

Fig 1: Procedure (With Subaru Select Monitor) Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

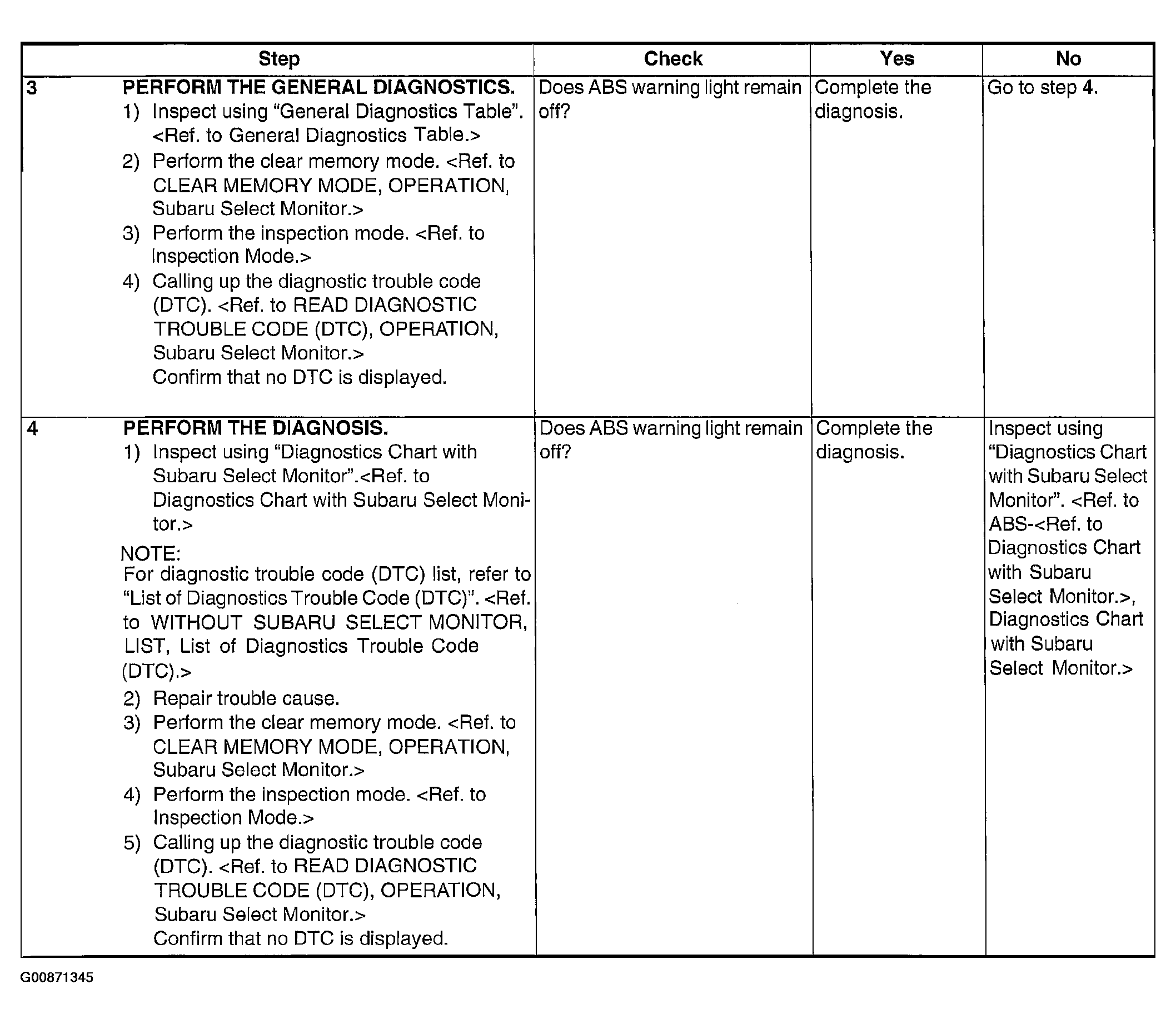

Fig 2: Procedure (With Subaru Select Monitor) Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
