DTC 41: Abnormal Abs Control Module

DIAGNOSIS:

• Faulty ABSCM & H/U.

TROUBLE SYMPTOM:

• ABS does not operate.

WIRING DIAGRAM:

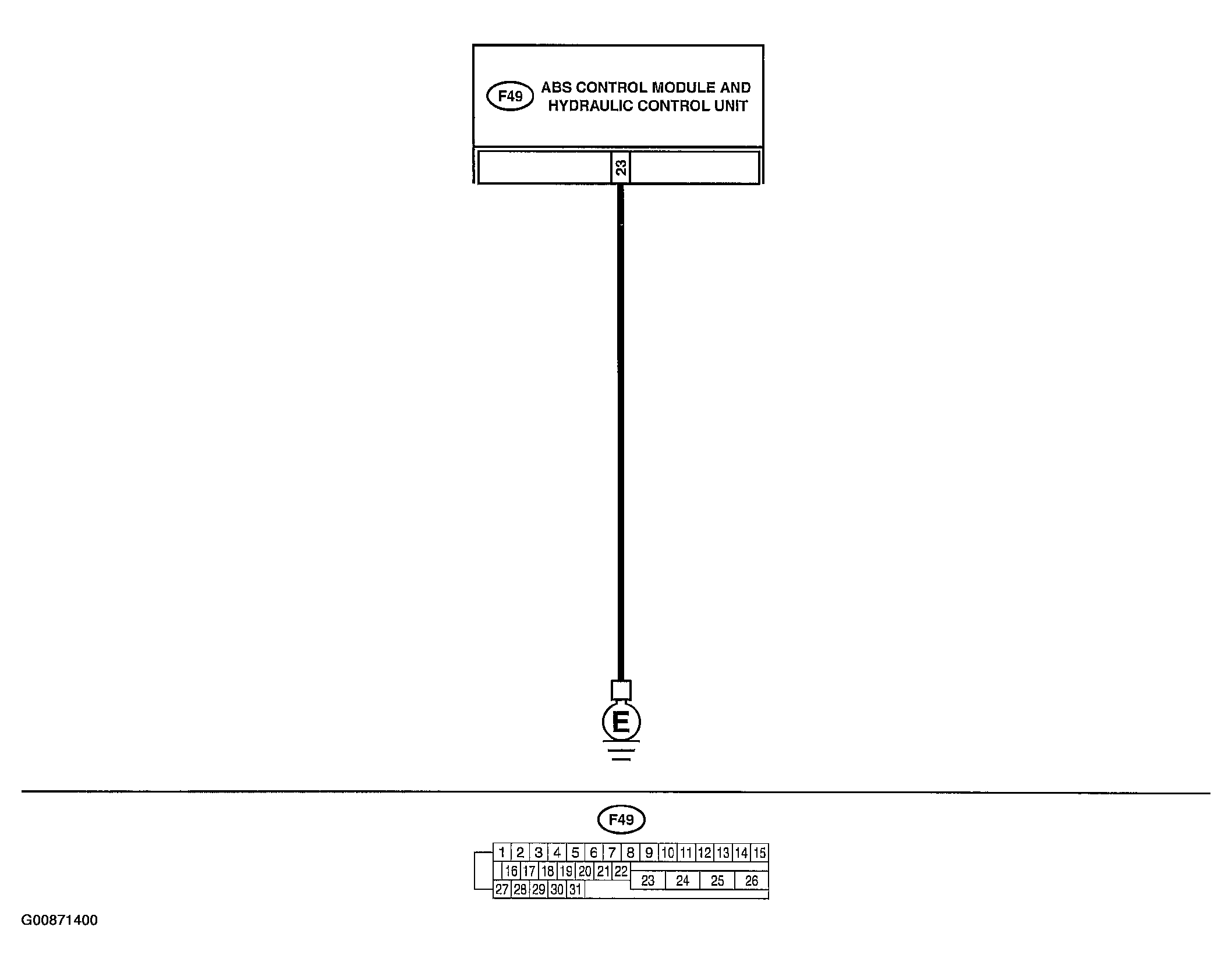

Fig 1: DTC 41 Abnormal ABS Control Module Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

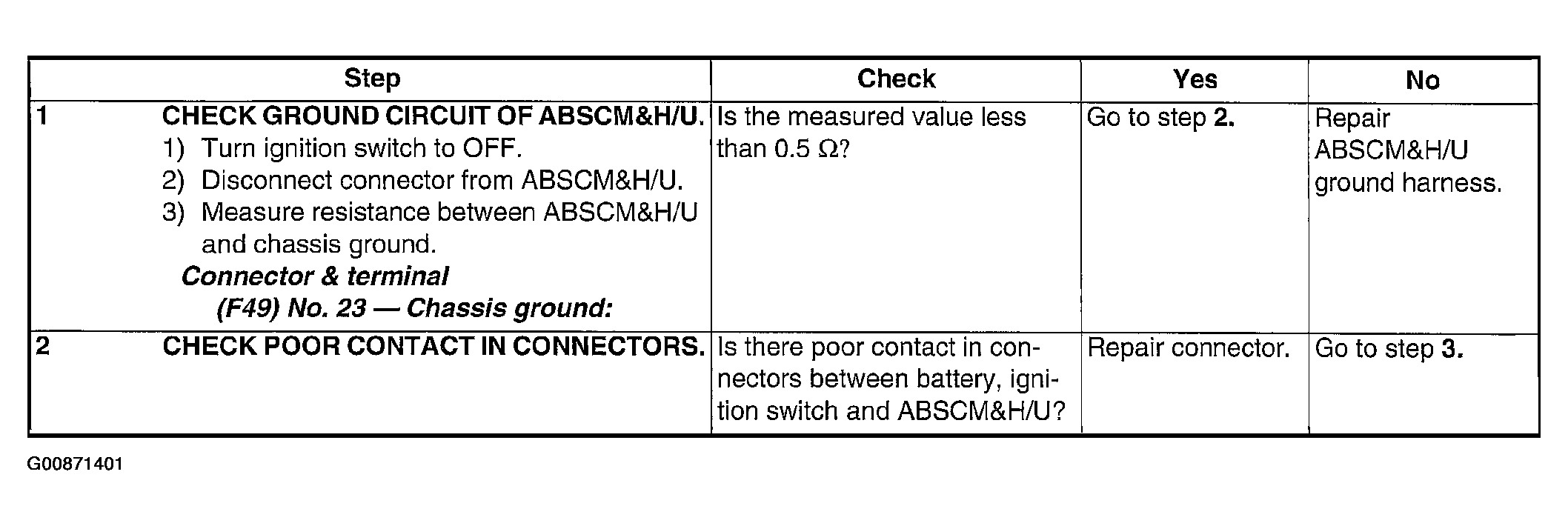

Fig 2: DTC 41 Abnormal ABS Control Module Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

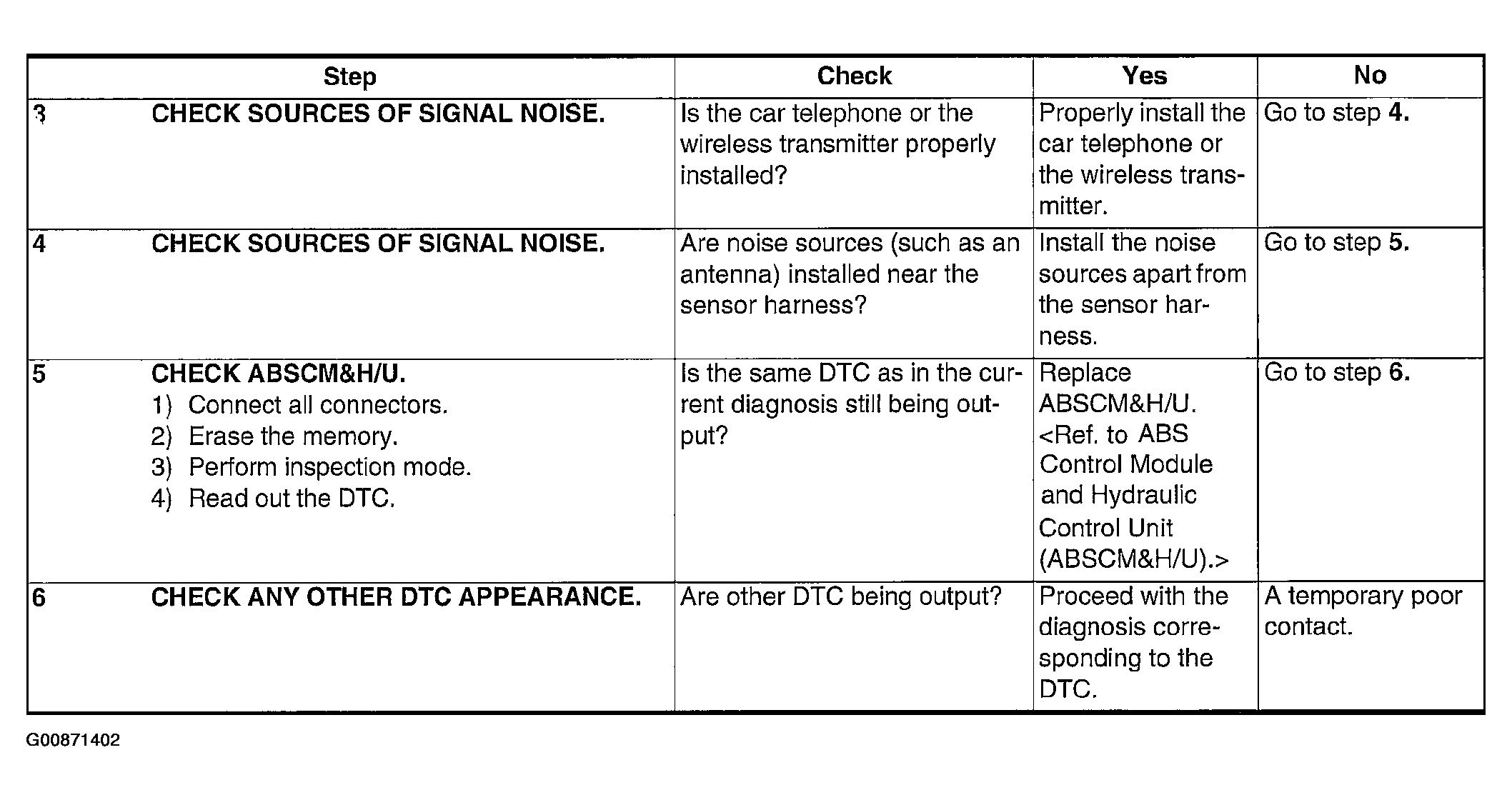

Fig 3: DTC 41 Abnormal ABS Control Module Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
