DTC 44: Abs-At Control (Non Controlled)

DIAGNOSIS:

• Combination of AT control faults

TROUBLE SYMPTOM:

• ABS does not operate.

WIRING DIAGRAM:

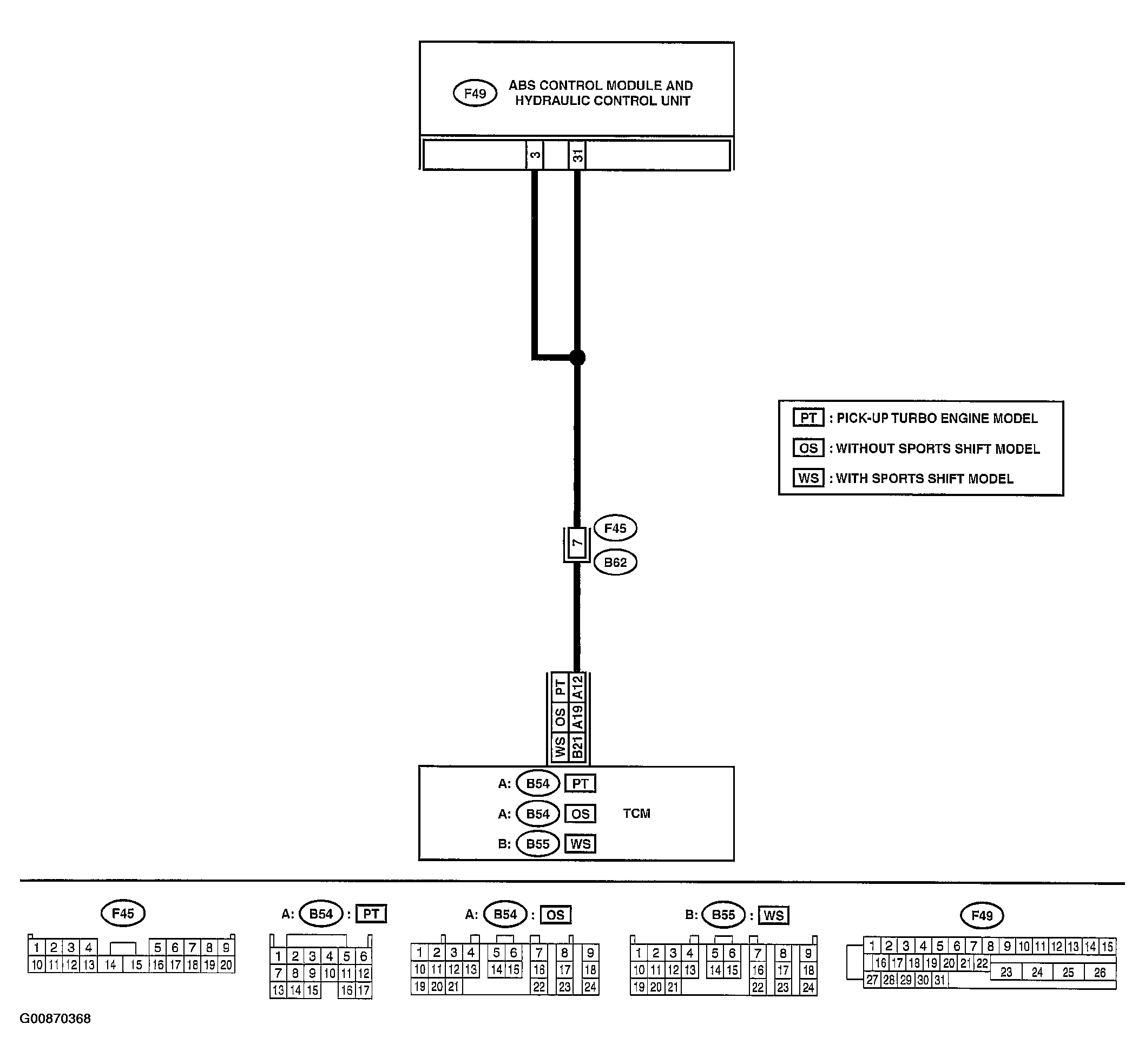

Fig 1: DTC 44 ABS-AT Control (Non Controlled) Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

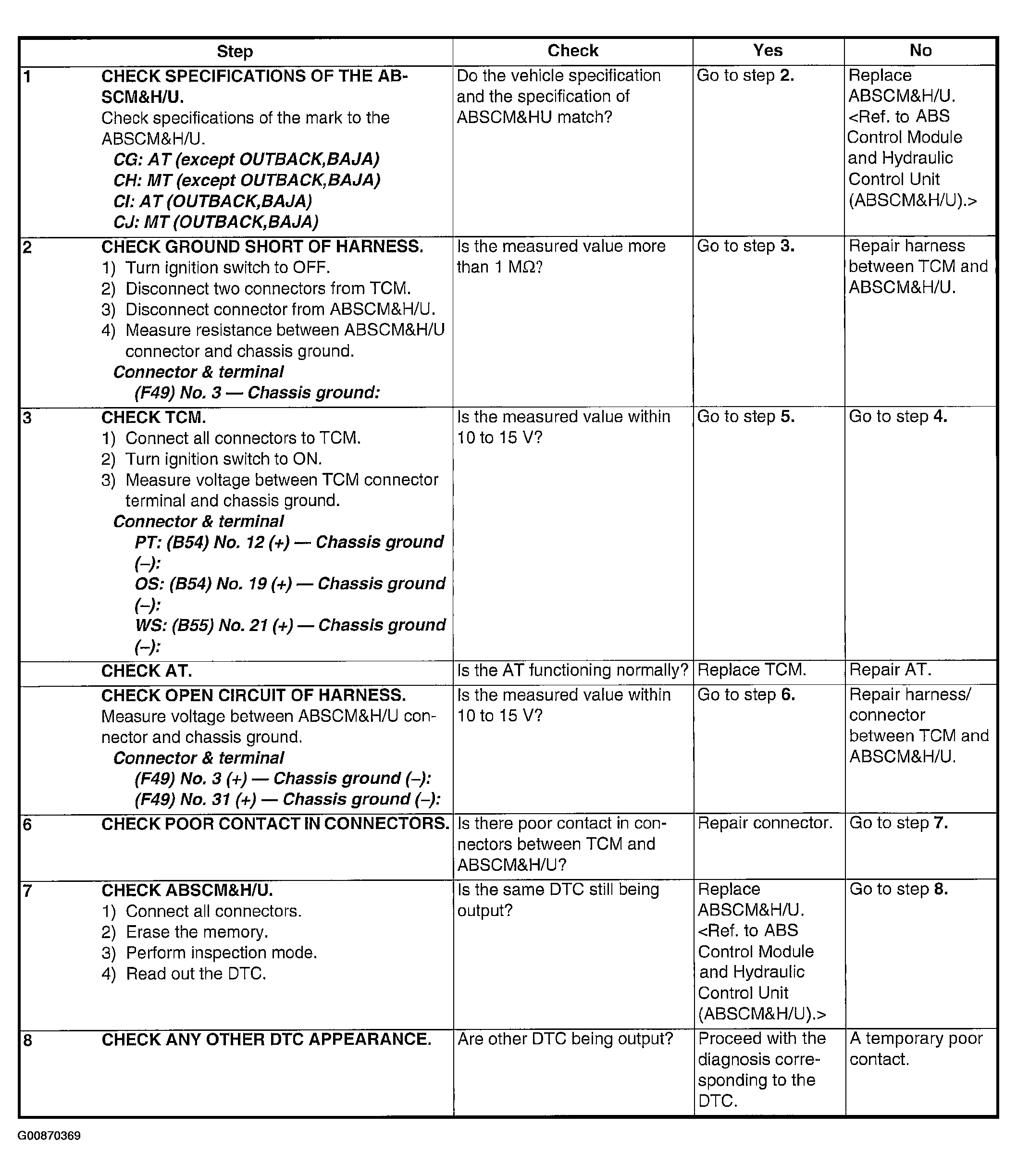

Fig 2: DTC 44 ABS-AT Control (Non Controlled) Chart

Courtesy of SUBARU OF AMERICA, INC.
