With SUBARU Select Monitor

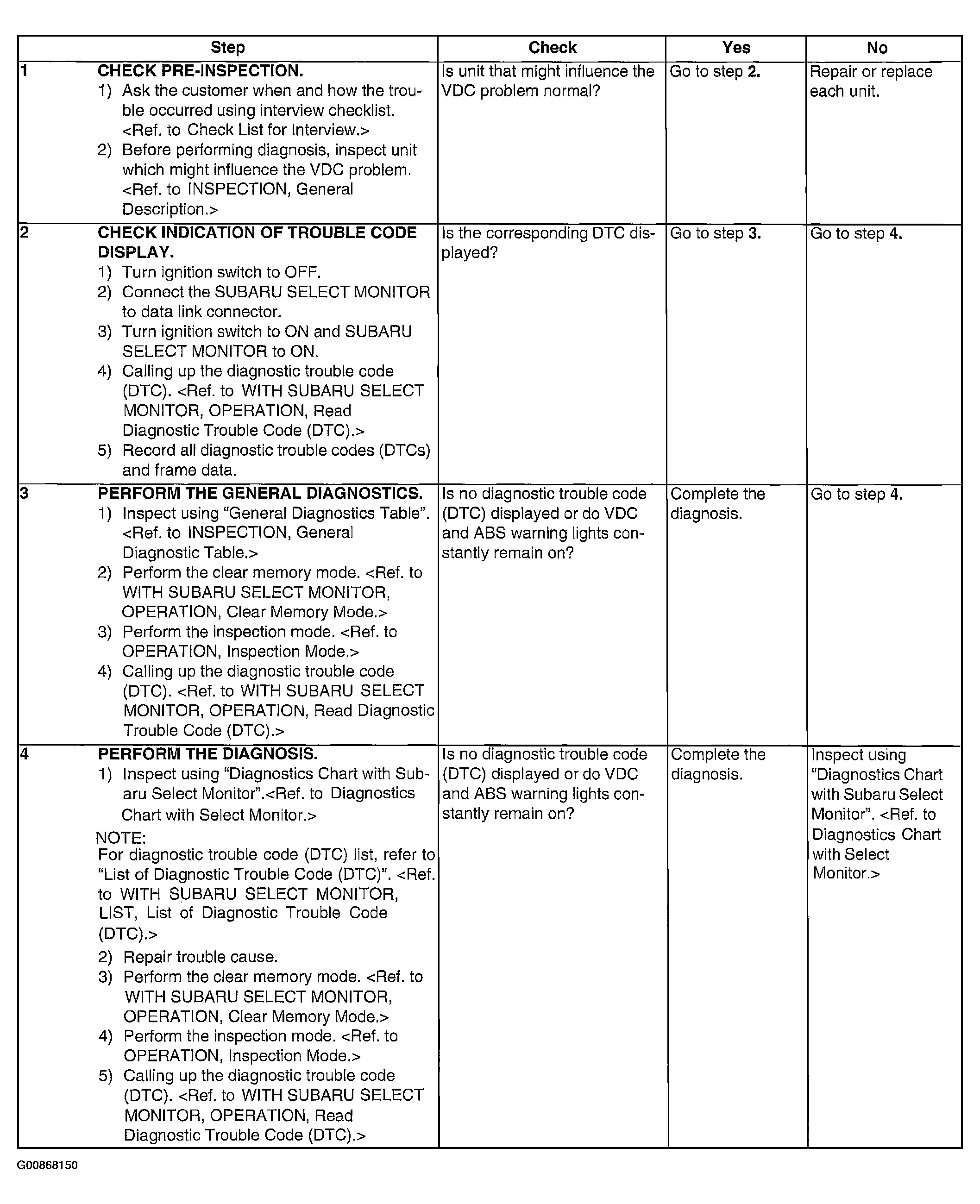

Fig 1: Basic Diagnostic Procedure With Subaru Select Monitor Chart

G00868150

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

To check harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. Refer to CHECK LIST FOR INTERVIEW .
