Yaw Rate and Lateral G Sensor
›
Inspection
›
Lateral G Sensor Signal
Lateral G Sensor Signal

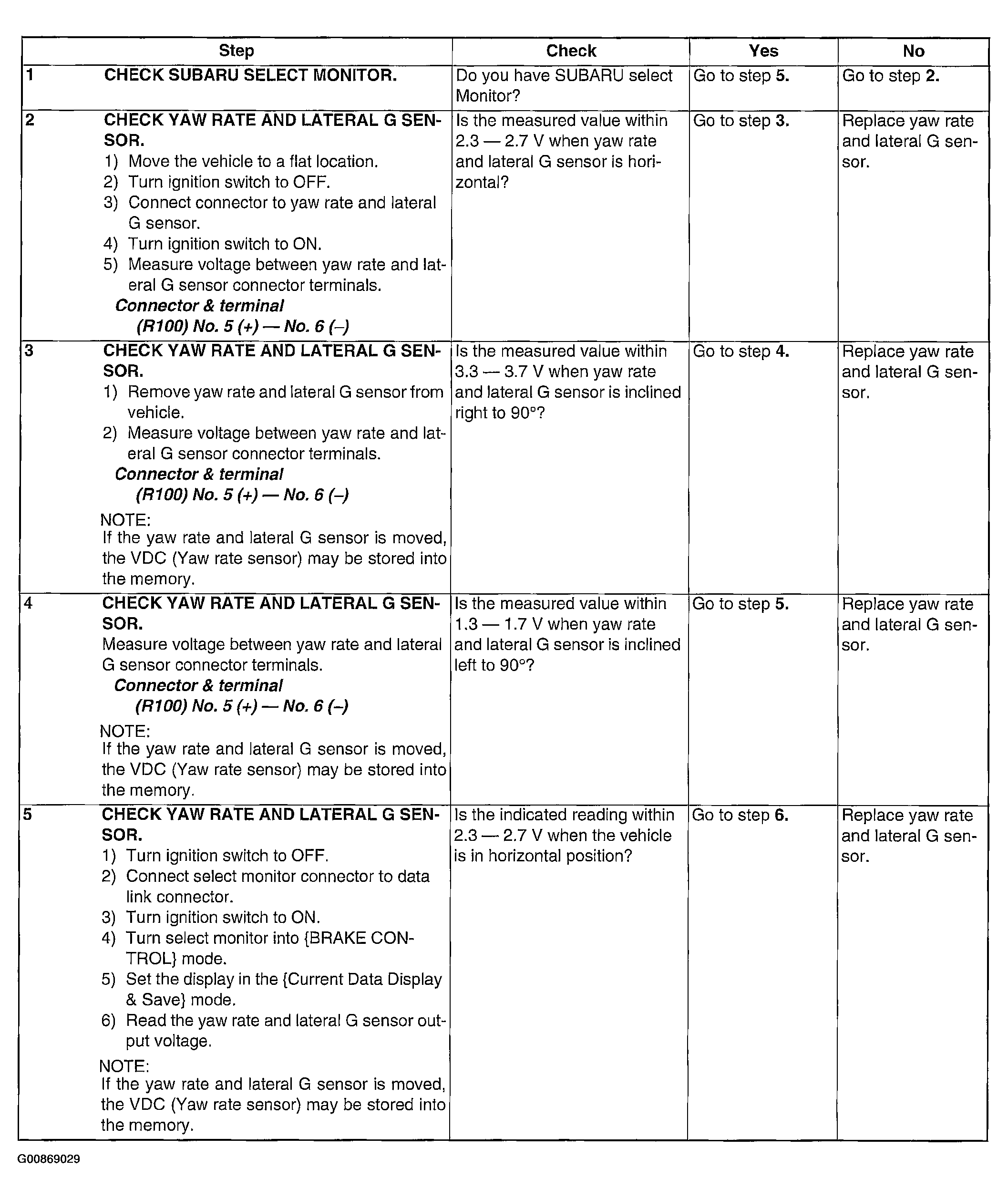

Fig 1: Lateral G Sensor Signal Inspection Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

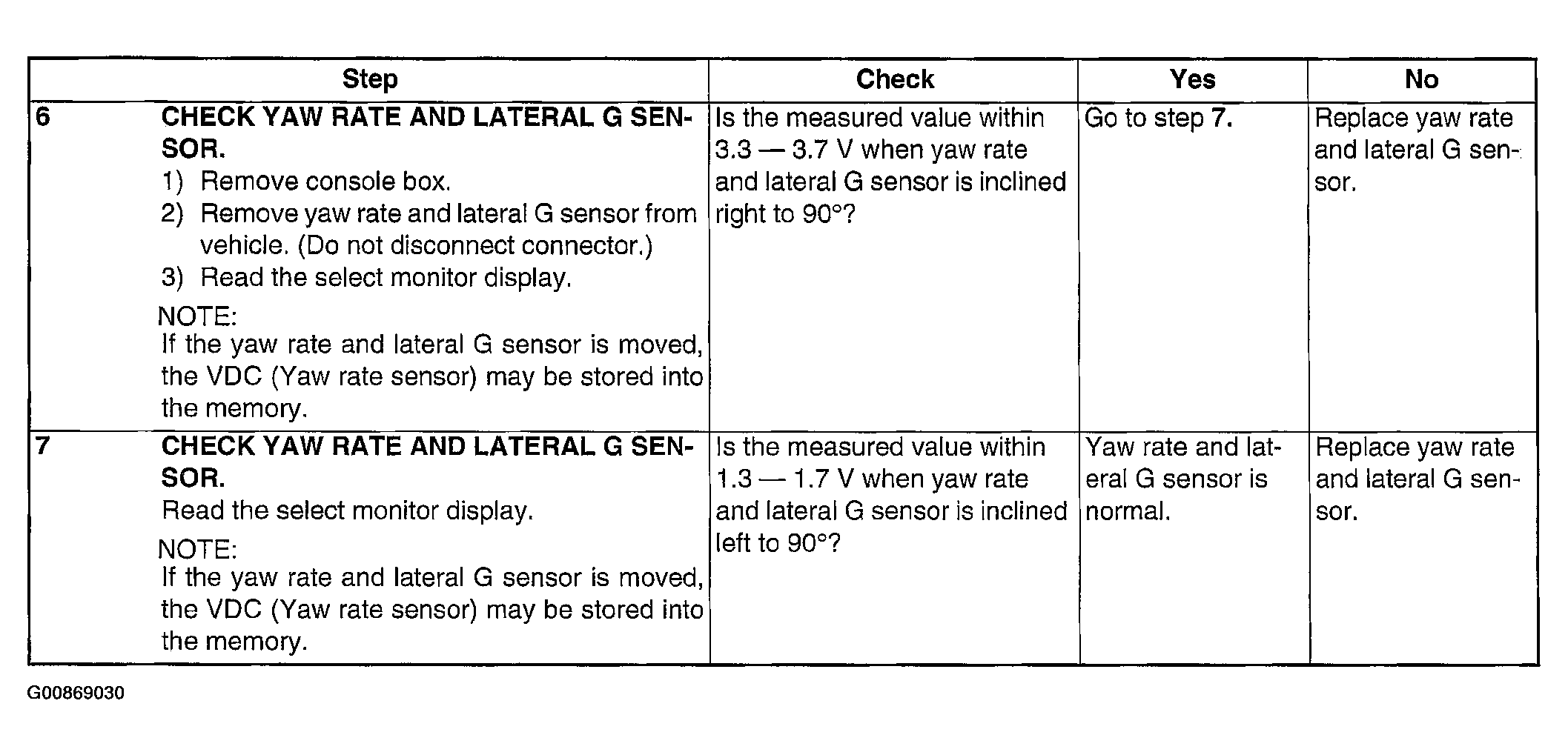

Fig 2: Lateral G Sensor Signal Inspection Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
