Differentials & Drive Axles: Differentials: General Description: Specifications: Notes

When replacing a rear differential assembly, select the correct one according to the following table.

NOTE: Using the different rear differential assembly causes the drive line and tires to "drag" or emit abnormal noise.

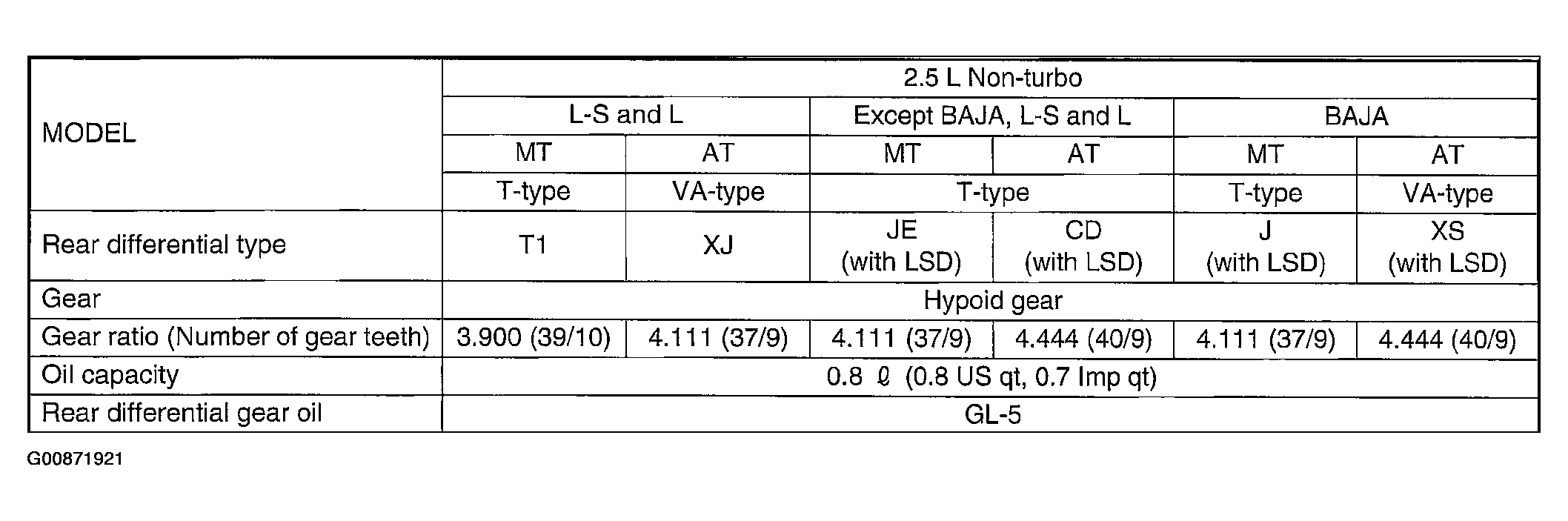

Fig 1: Rear Differential Assembly Specifications Table (2.5 L Non Turbo)

Courtesy of SUBARU OF AMERICA, INC.

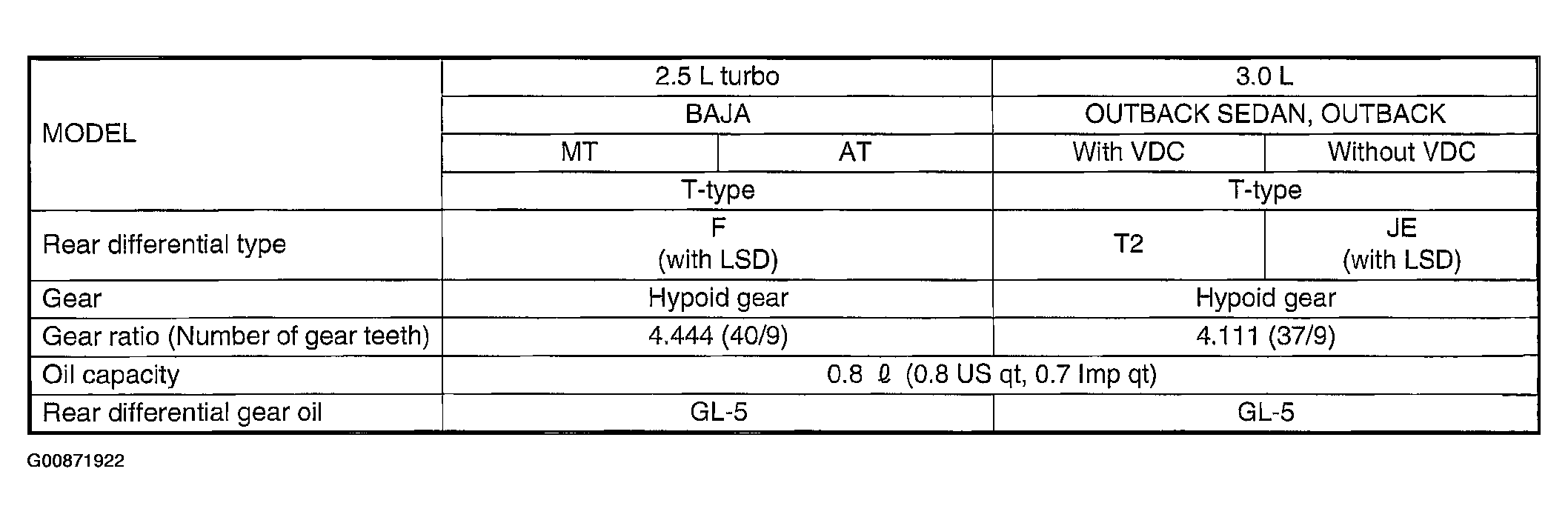

Fig 2: Rear Differential Assembly Specifications Table (2.5 L Turbo)

Courtesy of SUBARU OF AMERICA, INC.

Identification

Fig 3: Identifying Differential Identification
Courtesy of SUBARU OF AMERICA, INC.
Rear differential gear oil
Recommended oil

NOTE: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.

Fig 4: Identifying Rear Differential Gear Oil Brands
Courtesy of SUBARU OF AMERICA, INC.
