Under-Dash Fuse/Relay Box
NOTE:

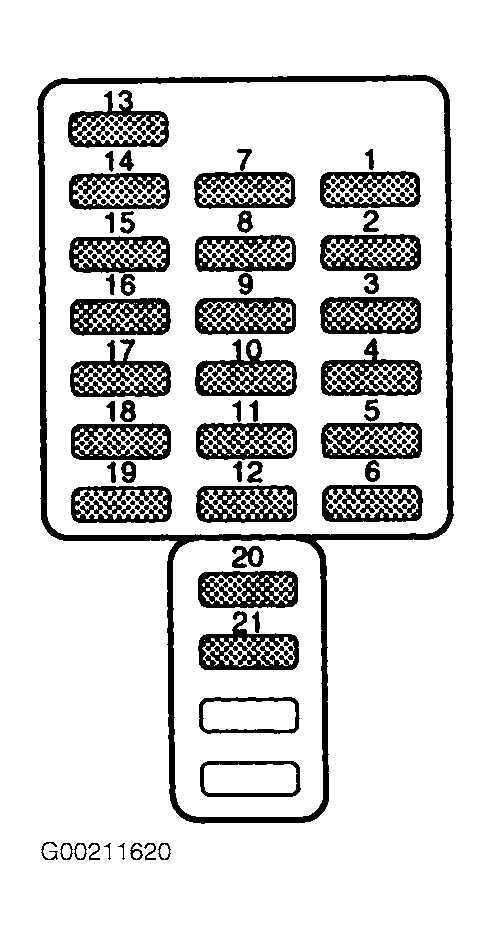

Under-dash fuse/relay box is located under the instrument panel behind the coin tray on driver's side. See Fig 1
.
UNDER-DASH FUSE/RELAY BOX LEGEND (2.5L)
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 15A | Heater Fan |
| 2 | 15A | Heater Fan |
| 3 | 15A | Power Door Lock & Remote Keyless entry |
| 4 | 20A | Mirror Heater, Cigarette Lighter, Removt Controlled Rear View Mirrors |
| 5 | 10A | Tail Light & Parking Light |
| 6 | 15A | SRS Air Bag |
| 7 | 15A | Front Fog Light |
| 8 | 30A | ABS Solenoid |
| 9 | 15A | Radio, Clock |
| 10 | 15A | Trailer |
| 11 | 15A | Engine Ignition System, SRS Air Bag |
| 12 | 10A | Illumination Brightness Control |
| 13 | 15A | Fuel Pump |
| 14 | 10A | Rear Window Wiper & Washer |
| 15 | 30A | Windshield Wiper & Washer |
| 16 | 20A | Brake Light |
| 17 | 15A | Air Conditioner |
| 18 | 15A | Backup Light, Cruise Control, ABS Control |
| 19 | 20A | Wiper Deicer |
| 20 | 20A | Accessory Power socket, Seat Heat |
| 21 | 15A | Ignition Coil & Ignitor (California Spec Vehicle Only) |
UNDER-DASH FUSE/RELAY BOX LEGEND (3.0L)
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 15A | Heater Fan |
| 2 | 15A | Heater Fan |
| 3 | 15A | Power Door Lock & Remote Keyless entry |
| 4 | 20A | Cigarette Lighter, Remote Controlled Rear View Mirrors, Mirror Heater |
| 5 | 10A | Tail Light & Parking Light |
| 6 | 15A | SRS Air Bag |
| 7 | 15A | Front Fog Light |
| 8 | 30A | ABS (VDC) Solenoid |
| 9 | 15A | Radio, Clock |
| 10 | 15A | Trailer |
| 11 | 15A | Engine Ignition System, SRS Air Bag |
| 12 | 10A | Illumination Brightness Control |
| 13 | 15A | Fuel Pump |
| 14 | 10A | Rear Window Wiper & Washer |
| 15 | 30A | Windshield Wiper & Washer |
| 16 | 20A | Brake Light |
| 17 | 15A | Air Conditioner |
| 18 | 15A | Backup Light, Cruise Control, ABS (VDC) Control |
| 19 | 20A | Wiper Deicer |
| 20 | 20A | McIntosh Audion Amp (if equipped) |
| 21 | 20A | Accessory Power Socket, Seat Heater |
