Fuel Pump Relay: Removal

  1. Disconnect ground cable from battery.

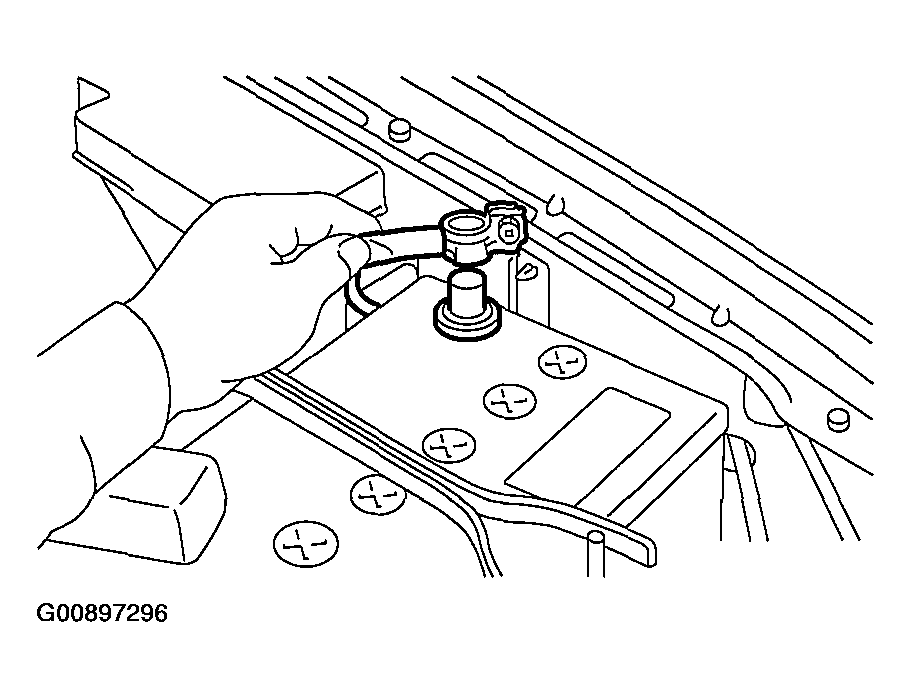

    Fig 1: Disconnecting Battery Ground Cable
    G00897296Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Disconnect connector from fuel pump relay.

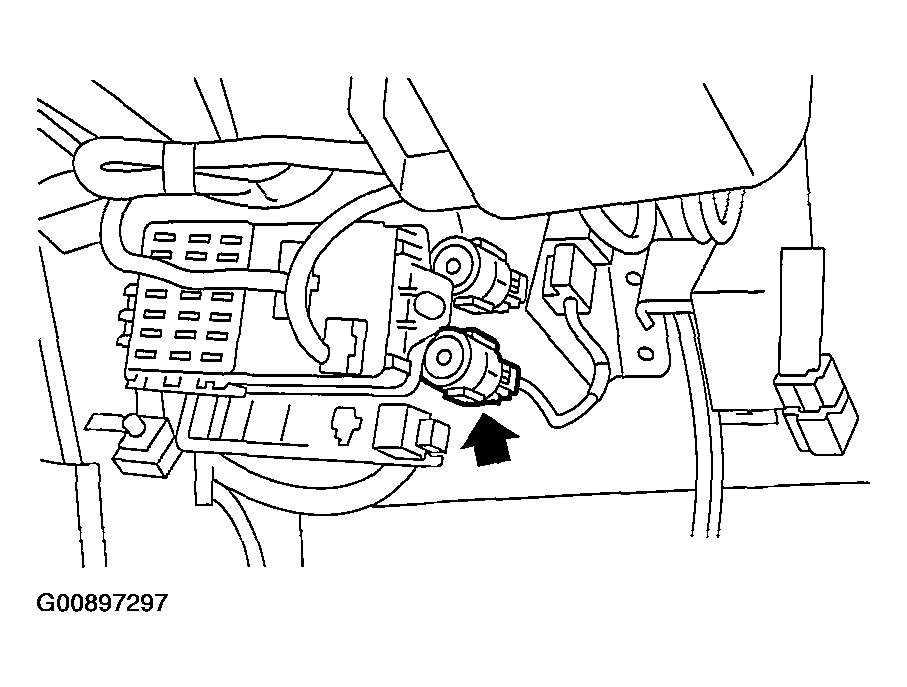

    Fig 2: Disconnecting Fuel Pump Relay Connector
    G00897297Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fuel pump relay from mounting bracket.
