Fuel System: General

• The fuel pressurized by the fuel tank inside pump is delivered to each fuel injector by way of the fuel pipe and fuel filter. Fuel injection pressure is regulated to an optimum level by the pressure regulator.
• Each injector injects fuel into the intake port of the corresponding cylinder where the fuel is mixed with air. The mixture then enters the cylinder.

Fuel injection amount and timing are regulated by the ECM.

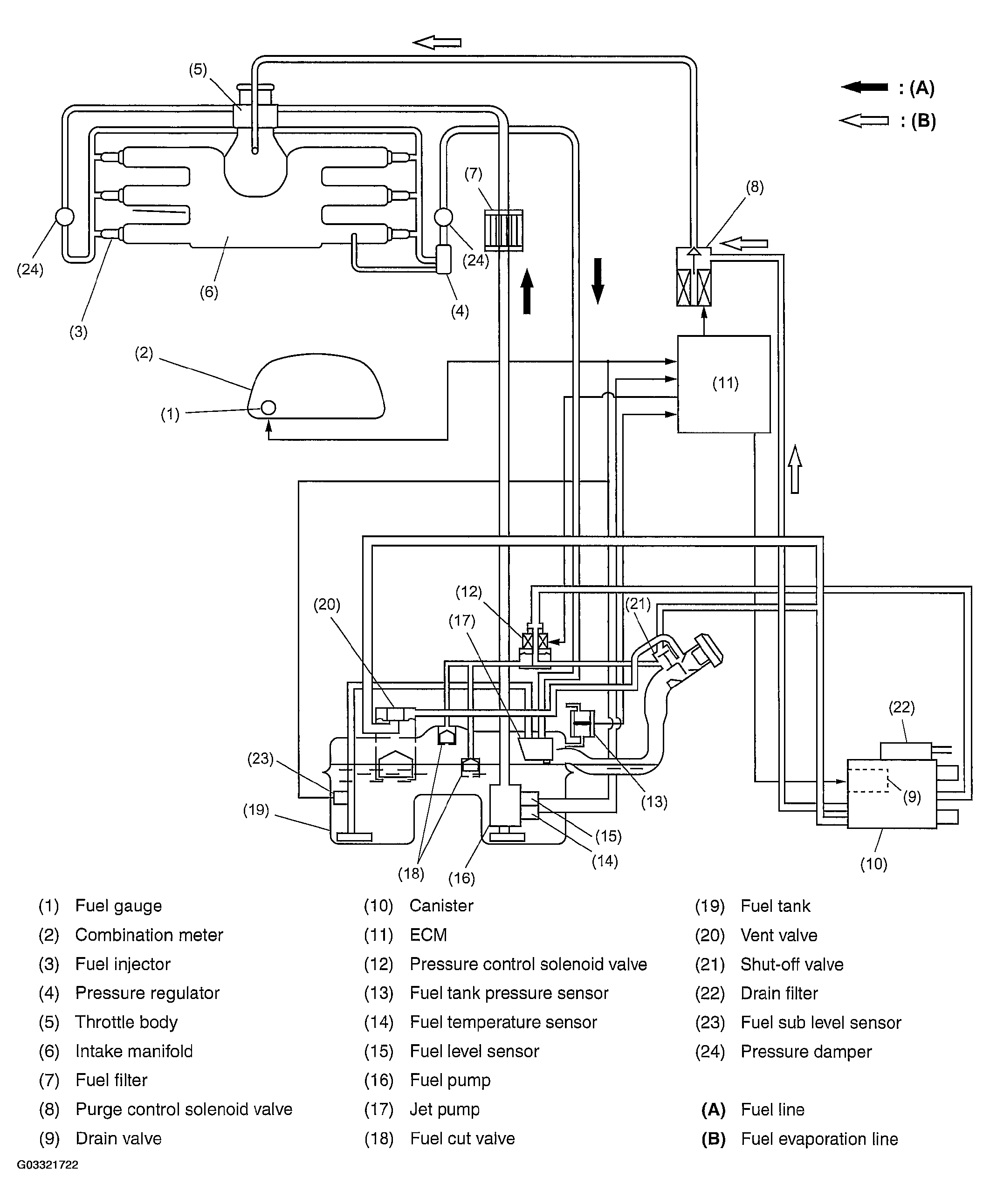

Fig 1: Identifying Fuel Line & Evaporation Line Of Fuel System

Courtesy of SUBARU OF AMERICA, INC.
