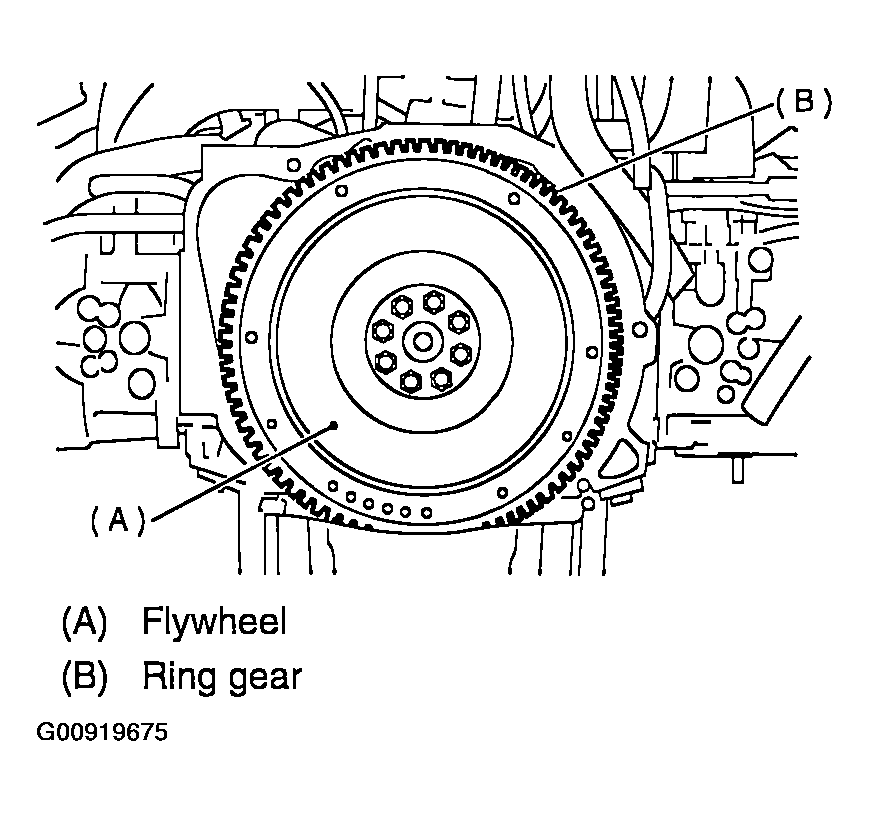

Section 18 (Clutch System): Flywheel: Inspection
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.
- Damage of facing, sliding surface and ring gear If defective, replace the flywheel.
- Smoothness of rotation
Rotate the ball bearing applying pressure in thrust direction.
- If noise or excessive play is noted, replace the flywheel.
