AT Shift Lock Solenoid and "P" Position Switch
›
Inspection
AT Shift Lock Solenoid and "P" Position Switch: Inspection

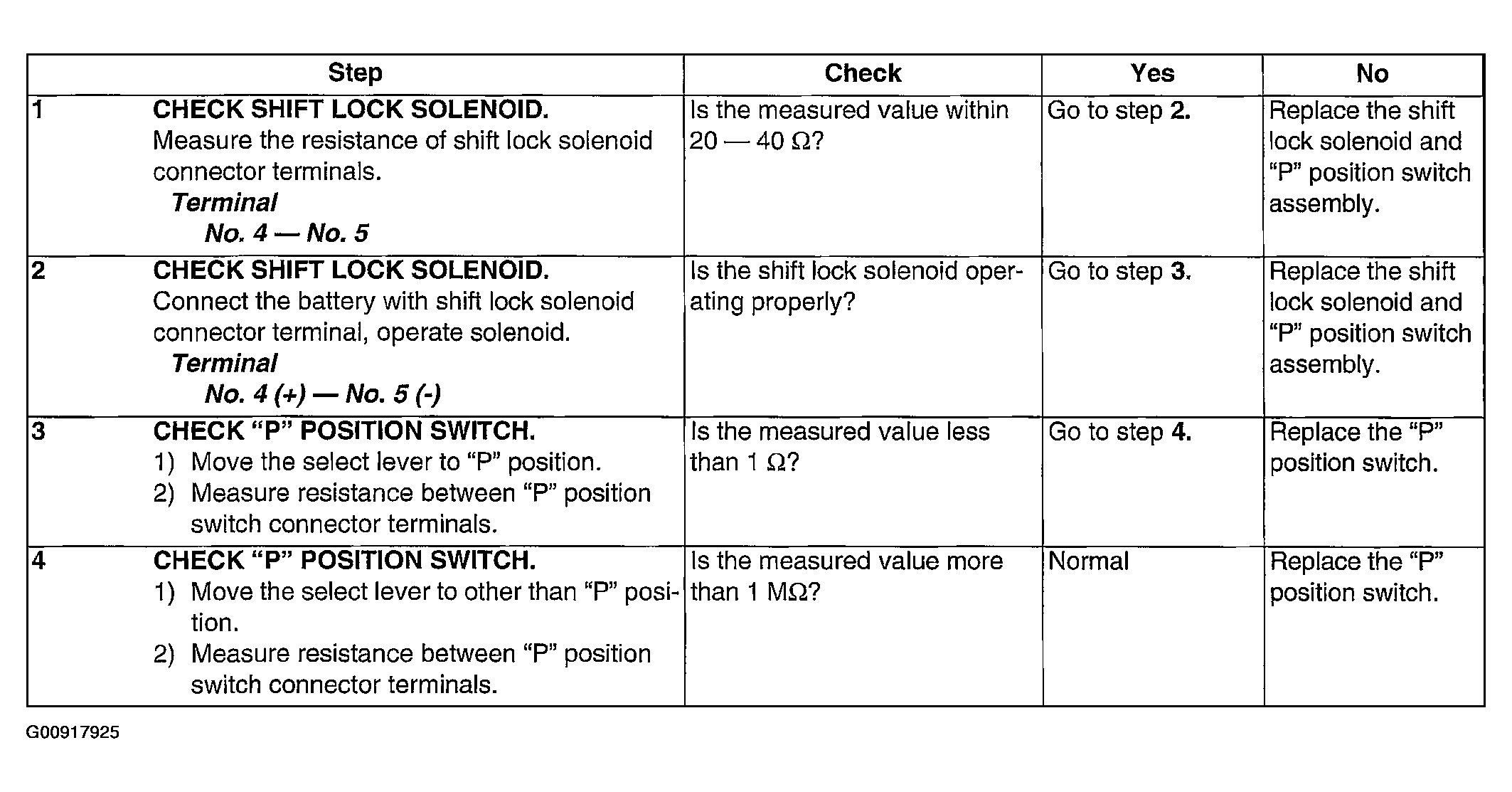

Fig 1: Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
