Knock Sensor: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00897234Courtesy of SUBARU OF AMERICA, INC.
  2. Remove intake manifold.

    Refer to INTAKE MANIFOLD .

  3. Disconnect knock sensor connector.
  4. Remove knock sensor from cylinder block.

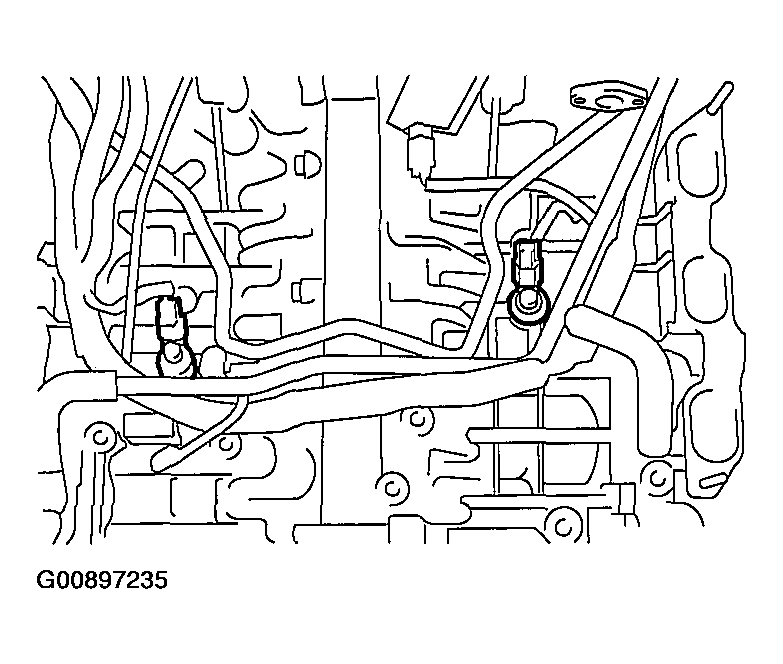

    Fig 2: Removing Knock Sensor
    G00897235Courtesy of SUBARU OF AMERICA, INC.
