Main Relay: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Battery Ground Cable
    G00897294Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
  3. Disconnect connectors from main relay.
  4. Remove bolt which holds main relay bracket on body.

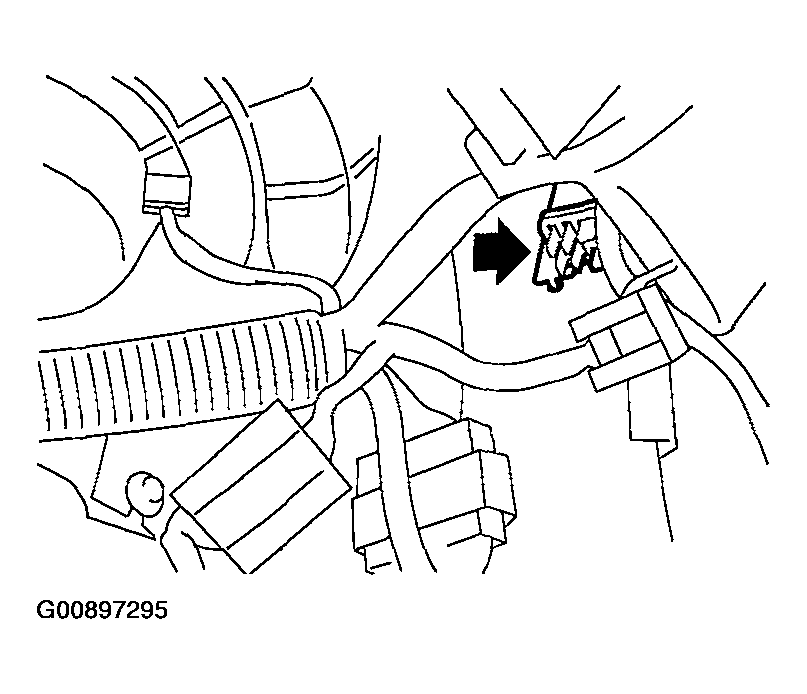

    Fig 2: Removing Main Relay Bracket Bolt
    G00897295Courtesy of SUBARU OF AMERICA, INC.
