General Diagnostic Table: Inspection

WARNING: This page is about a different variant/trim than selected.

CLUTCH

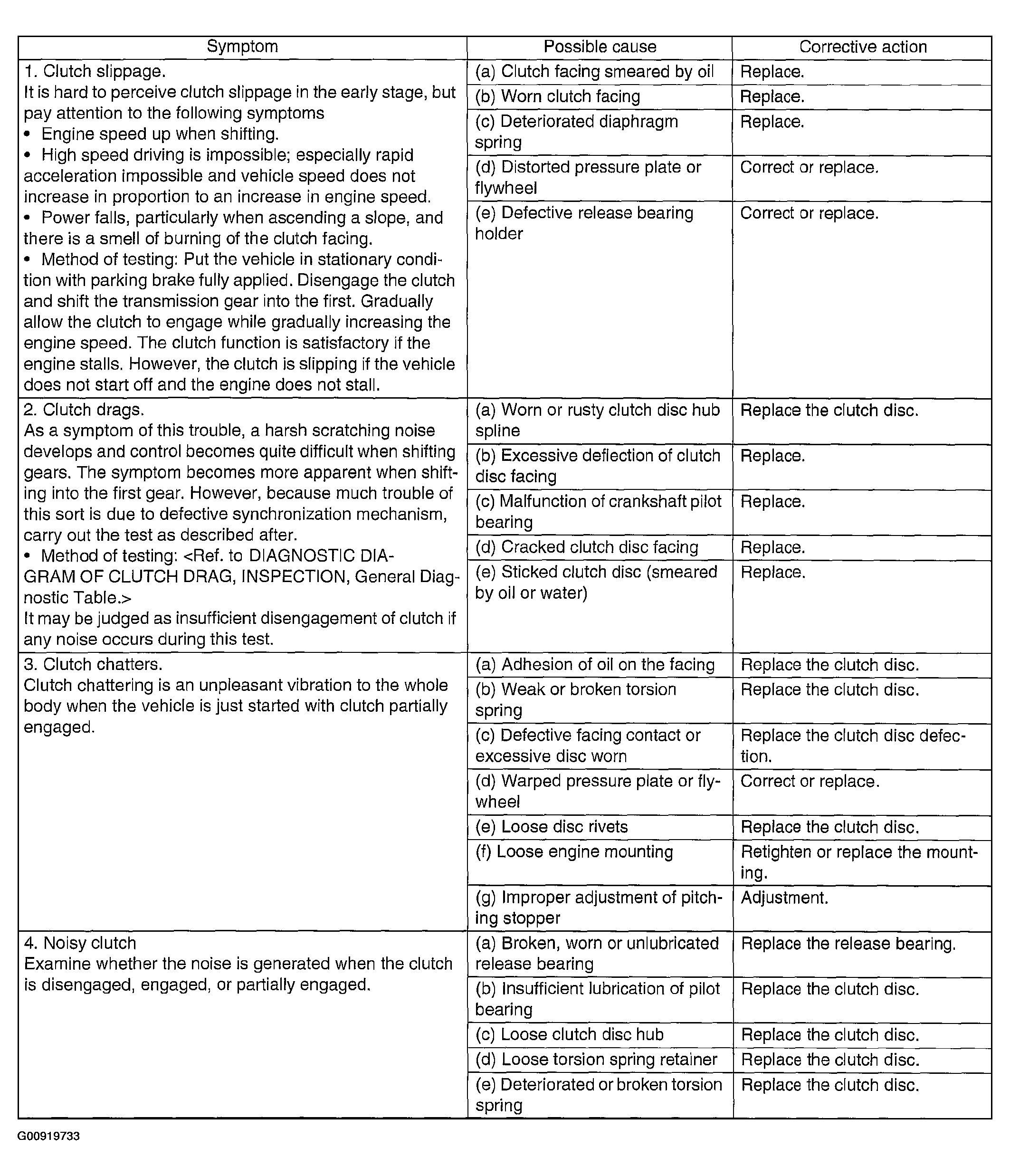

Fig 1: Clutch General Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

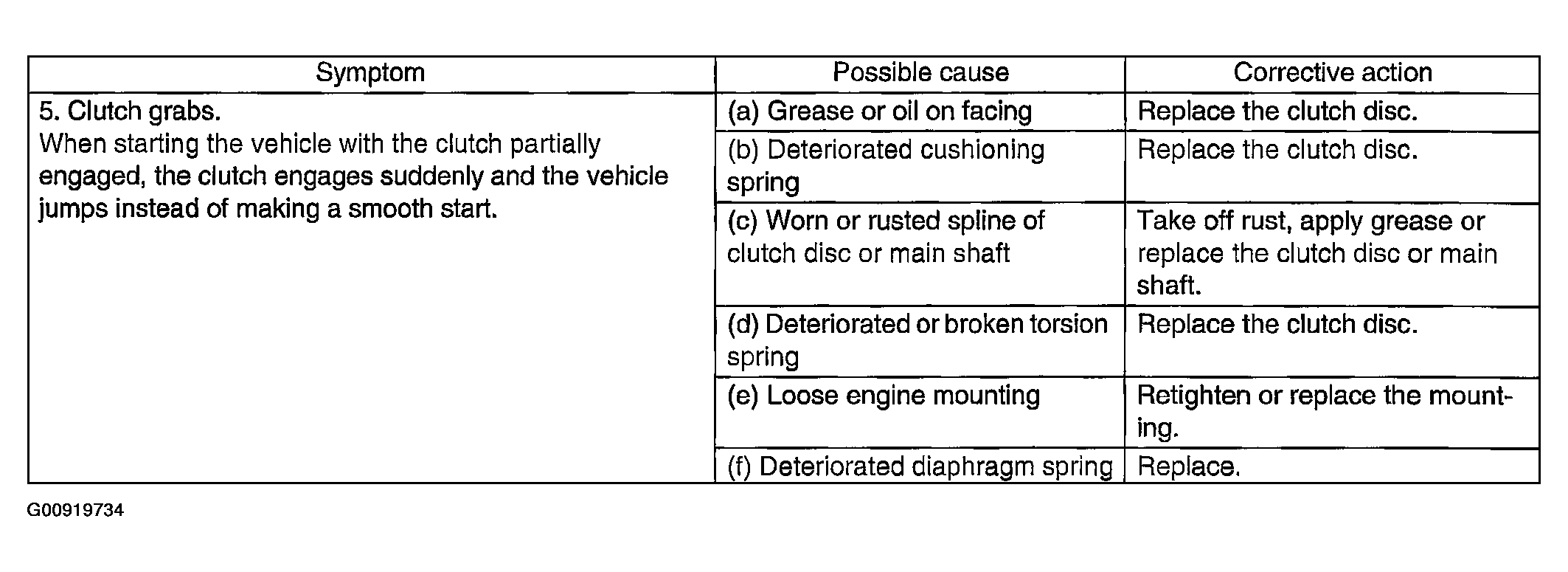

Fig 2: Clutch General Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
CLUTCH PEDAL

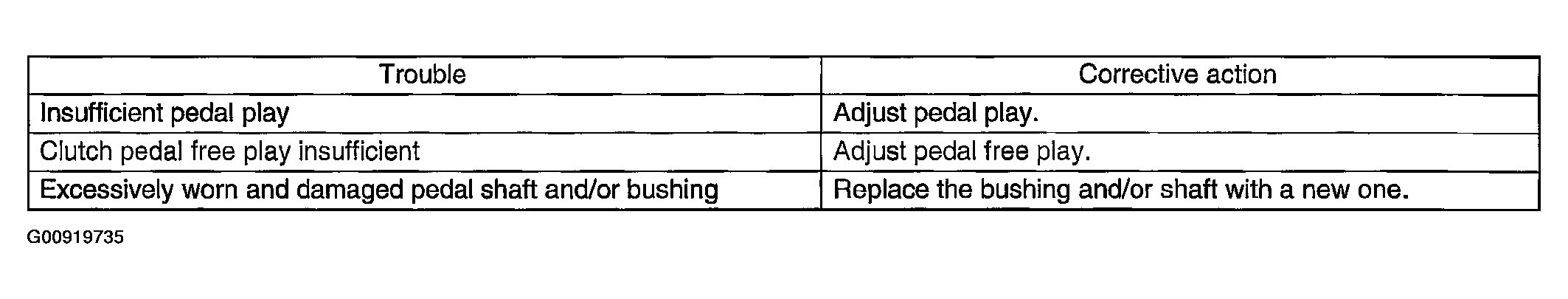

Fig 3: Clutch Pedal General Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC DIAGRAM OF CLUTCH DRAG

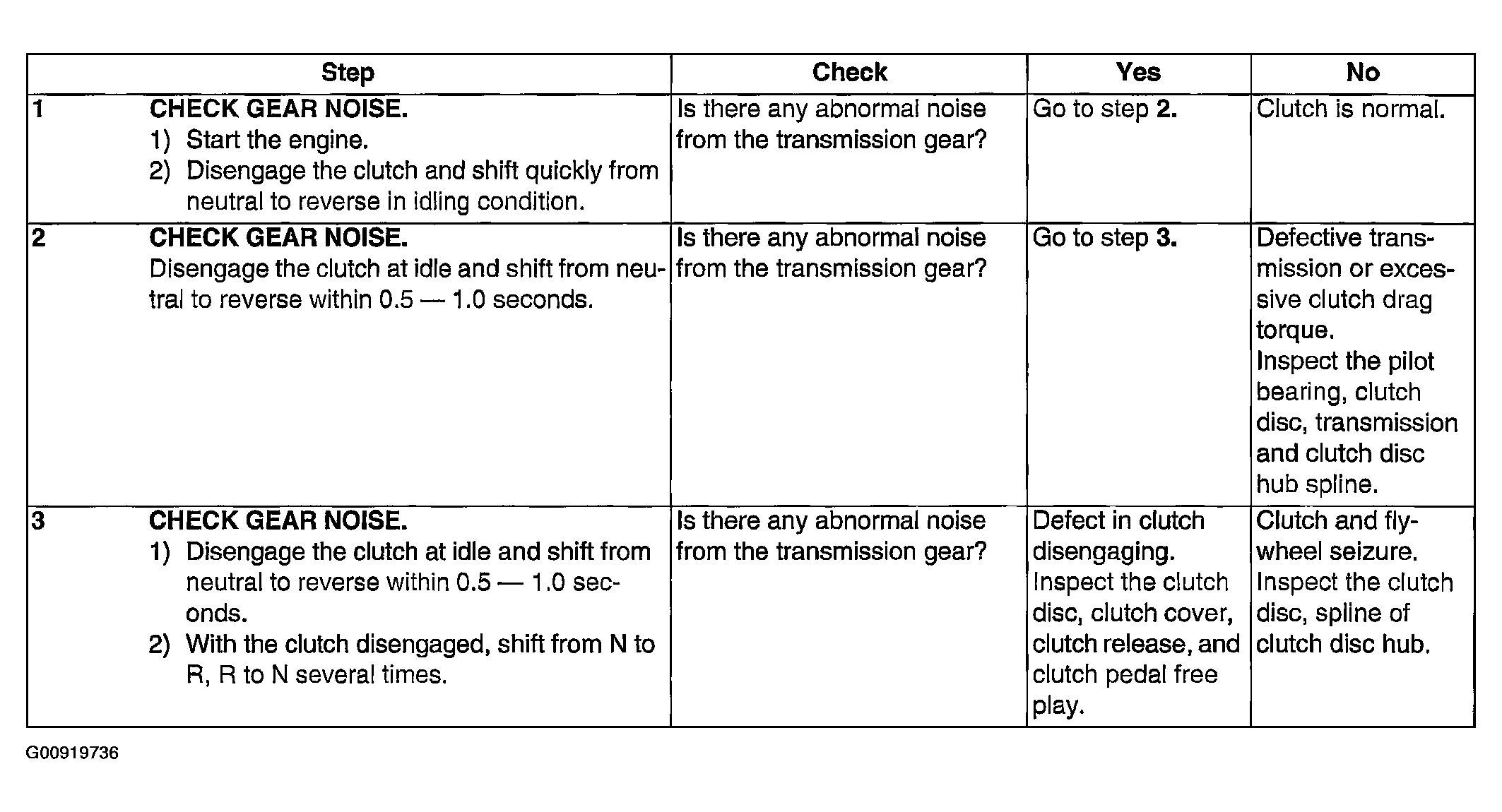

Fig 4: Clutch Drag Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
