Spark Plug
›
Removal
›
RH Side
RH Side
Disconnect battery ground cable.

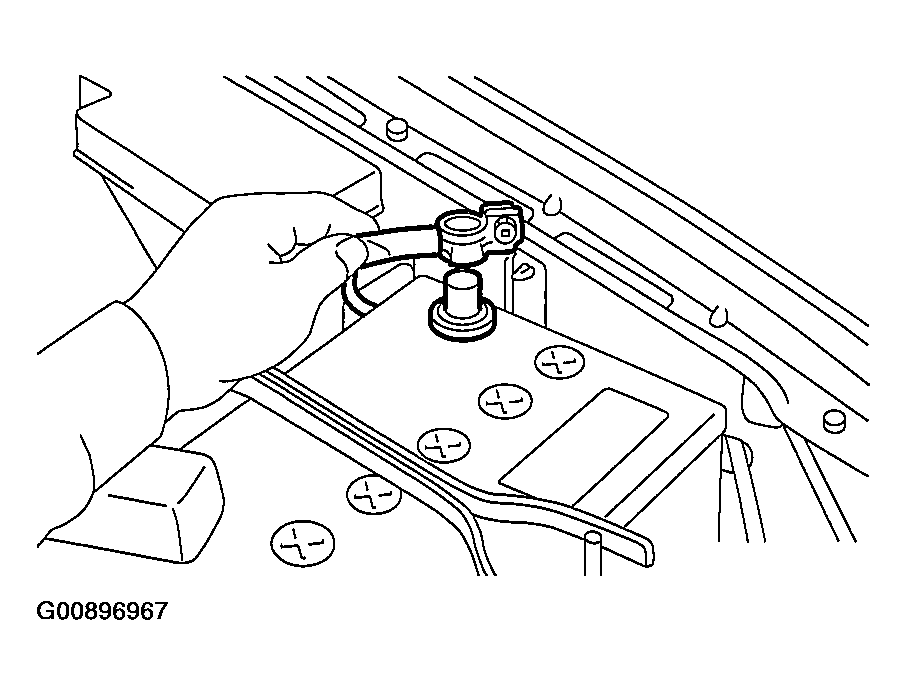

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner lower case. Refer to
REMOVAL
, Air Cleaner.
Disconnect connector from ignition coil.
Remove ignition coil.

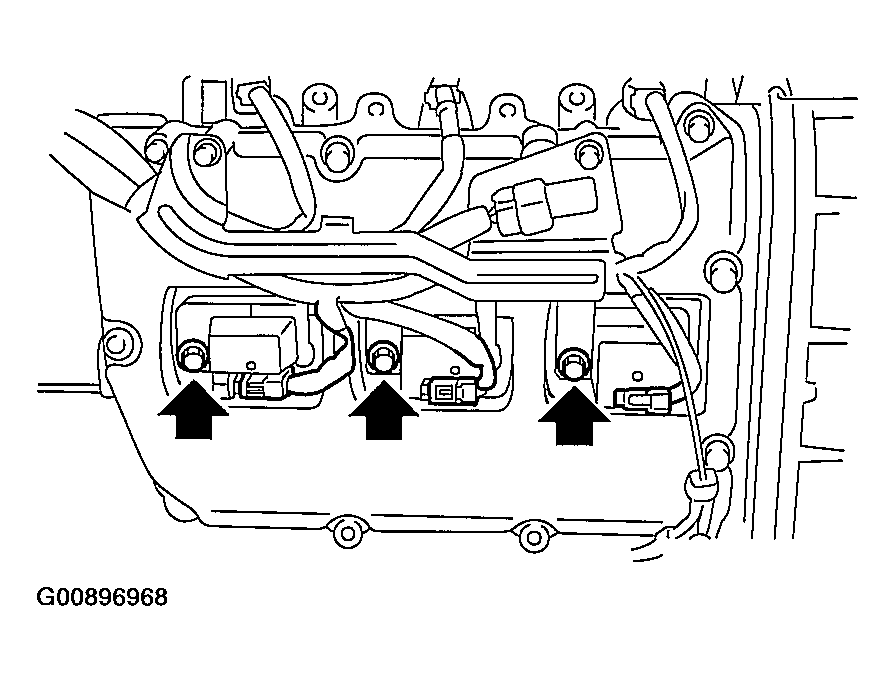

Fig 2: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plugs with the spark plug socket.

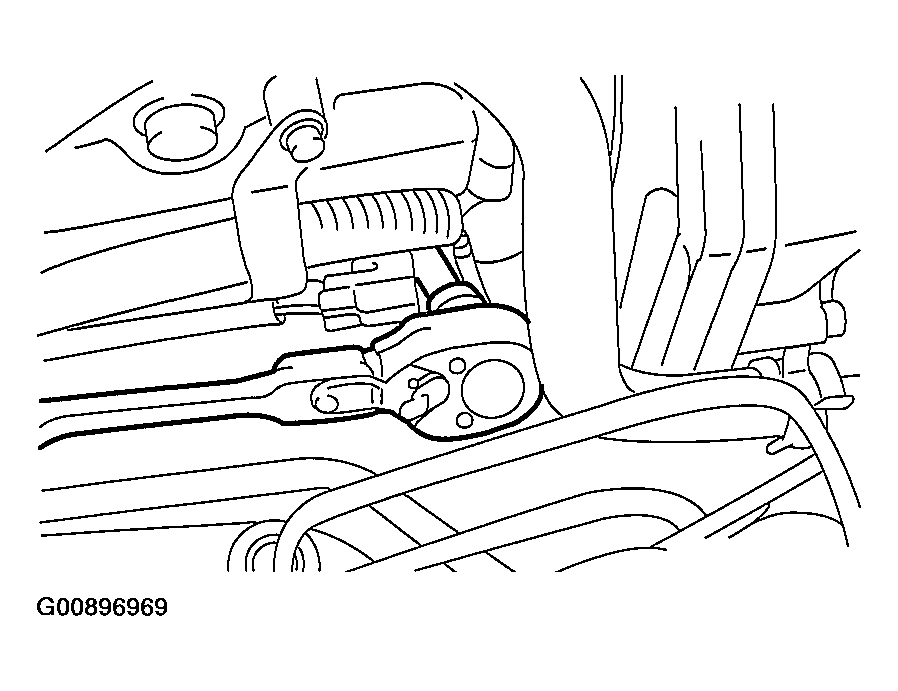

Fig 3: Removing Spark Plugs With Spark Plug Socket
Courtesy of SUBARU OF AMERICA, INC.
