CAUTION:
After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE. Refer to
CLEAR MEMORY MODE and INSPECTION MODE. Refer to
INSPECTION MODE
.
WIRING DIAGRAM:

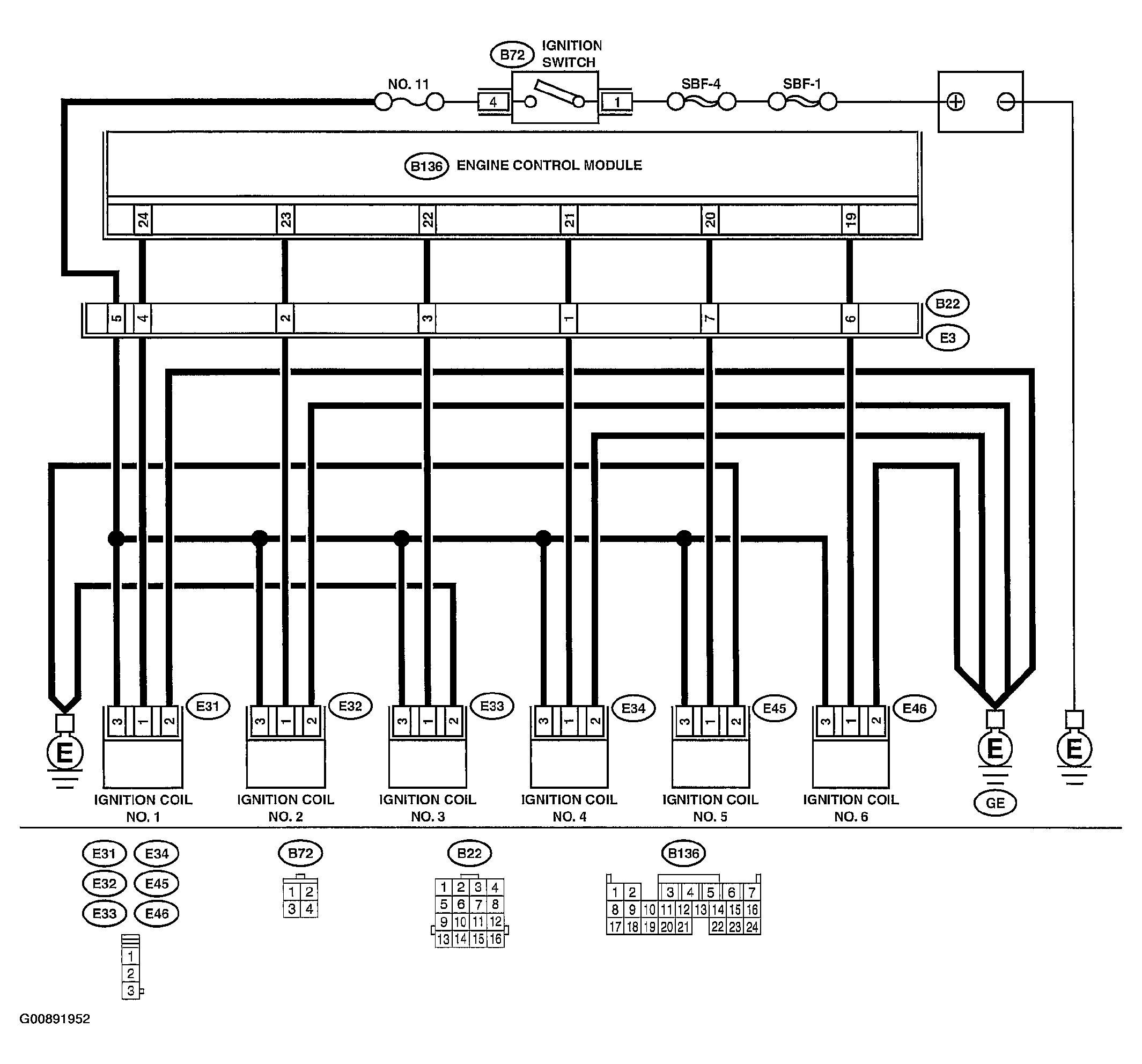

Fig 1: Ignition Control System Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

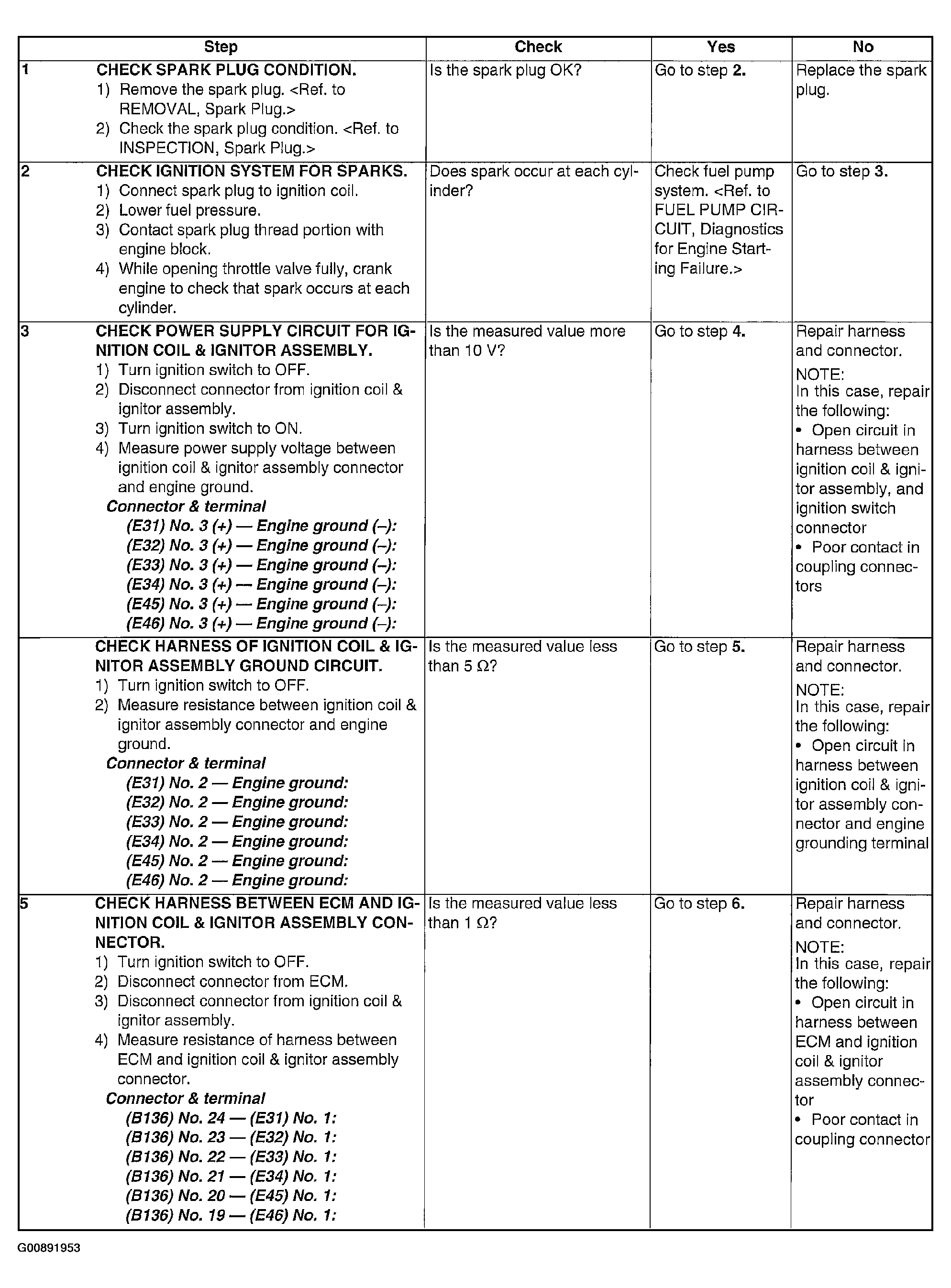

Fig 2: Diagnostics Chart For Engine Starting Failure Procedure (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

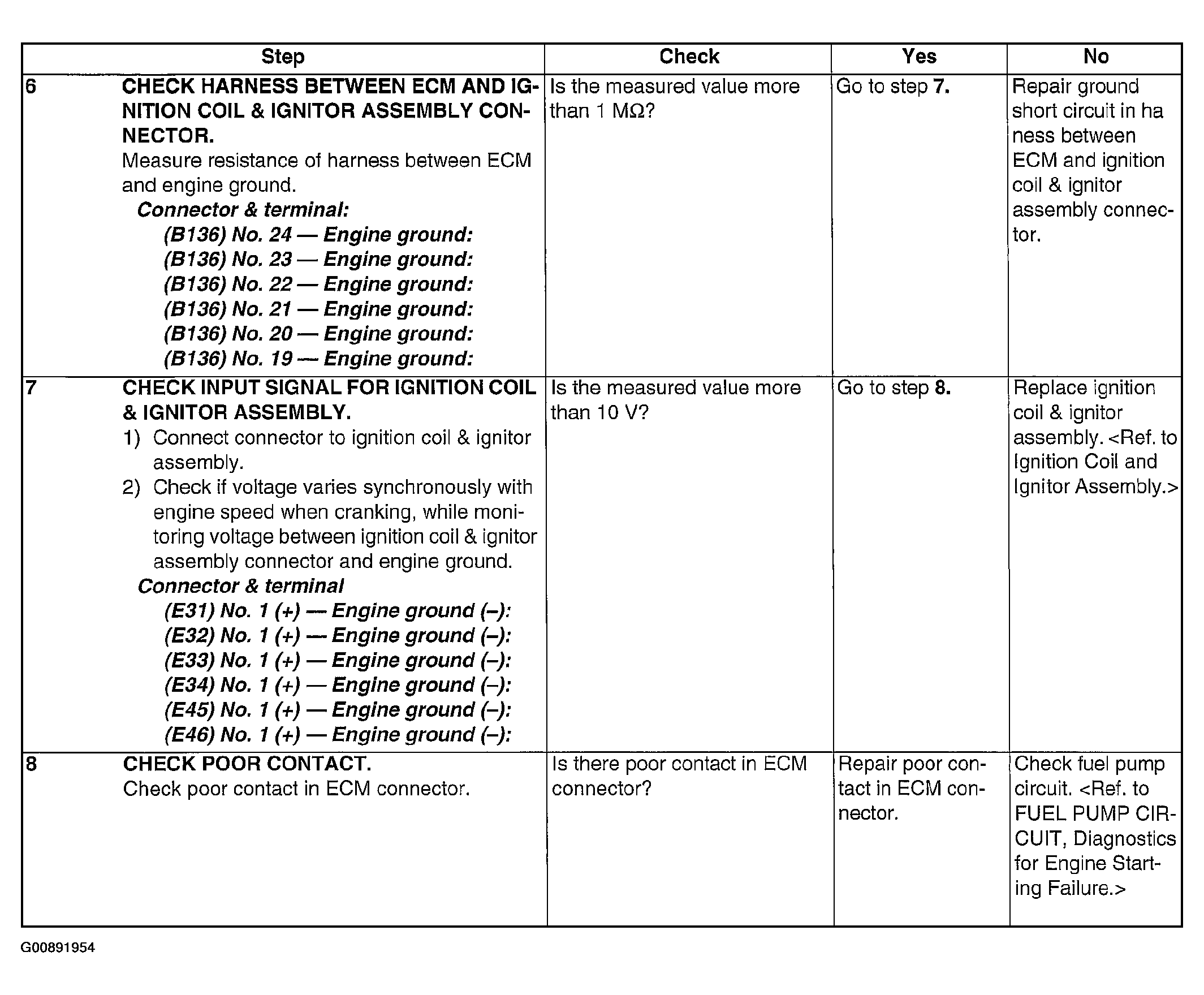

Fig 3: Diagnostics Chart For Engine Starting Failure Procedure (2 Of 2)
