Engine Coolant Temperature Sensor: Removal

  1. Disconnect ground cable from battery.

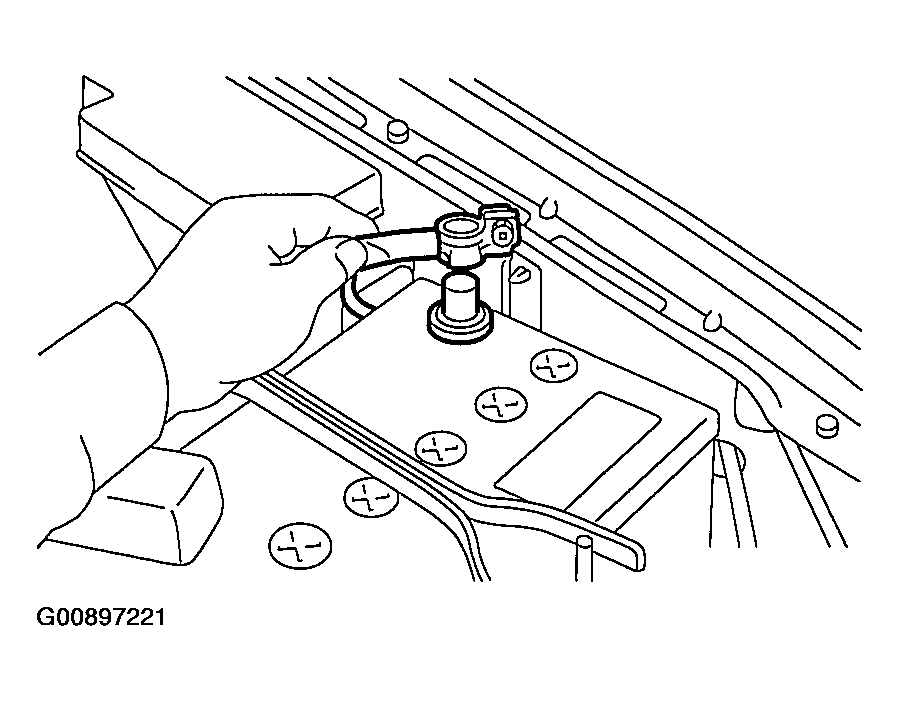

    Fig 1: Disconnecting Ground Cable From Battery
    G00897221Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from engine coolant temperature sensor.
  3. Remove engine coolant temperature sensor.

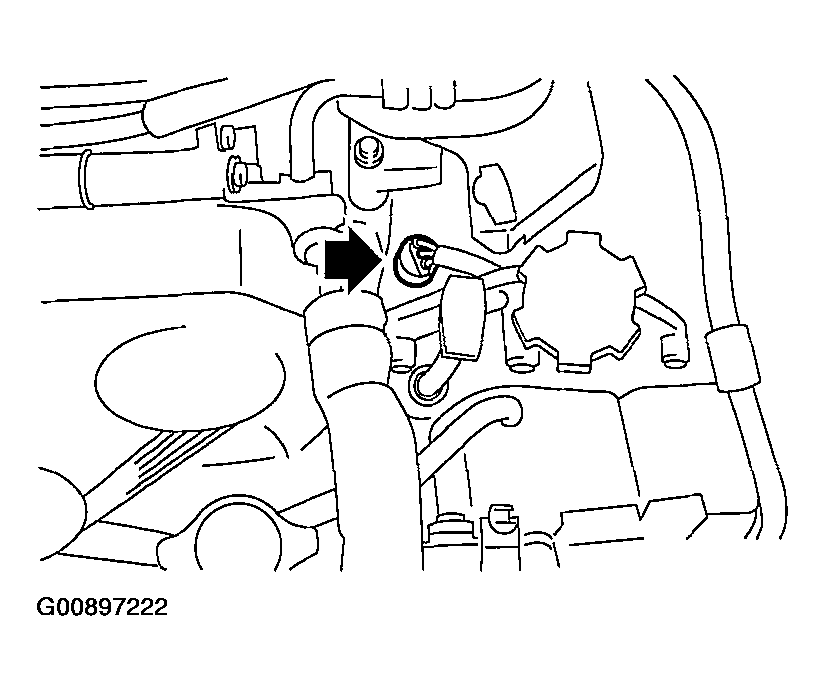

    Fig 2: Removing Engine Coolant Temperature Sensor
    G00897222Courtesy of SUBARU OF AMERICA, INC.
