General Description
›
Components With Torque Specifications
›
Front Axle
›
TURBO model
TURBO model

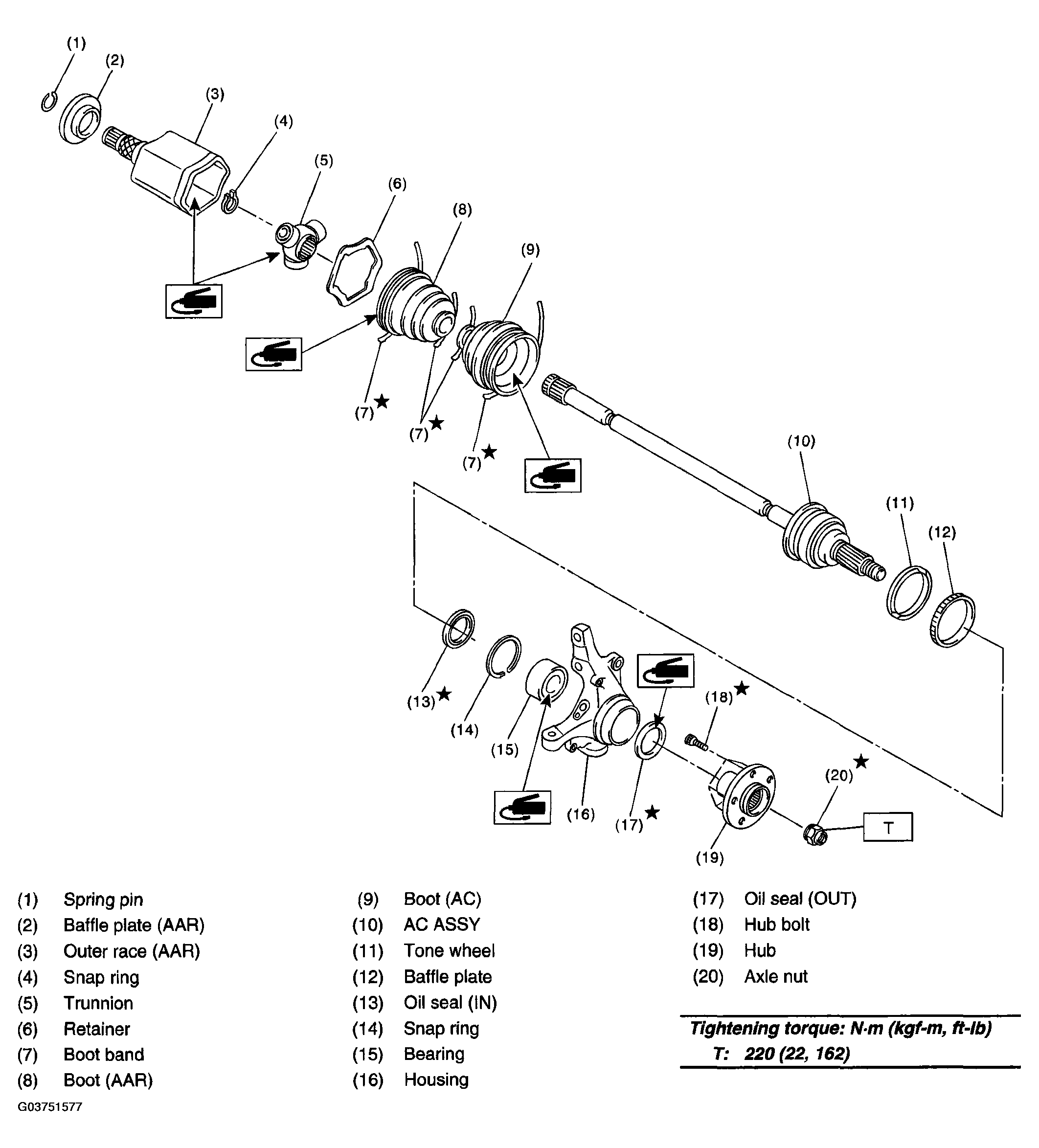

Fig 1: Front Axle Shaft Components (TURBO Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
