Fuel Pump Relay: Removal

  1. Disconnect ground cable from battery.

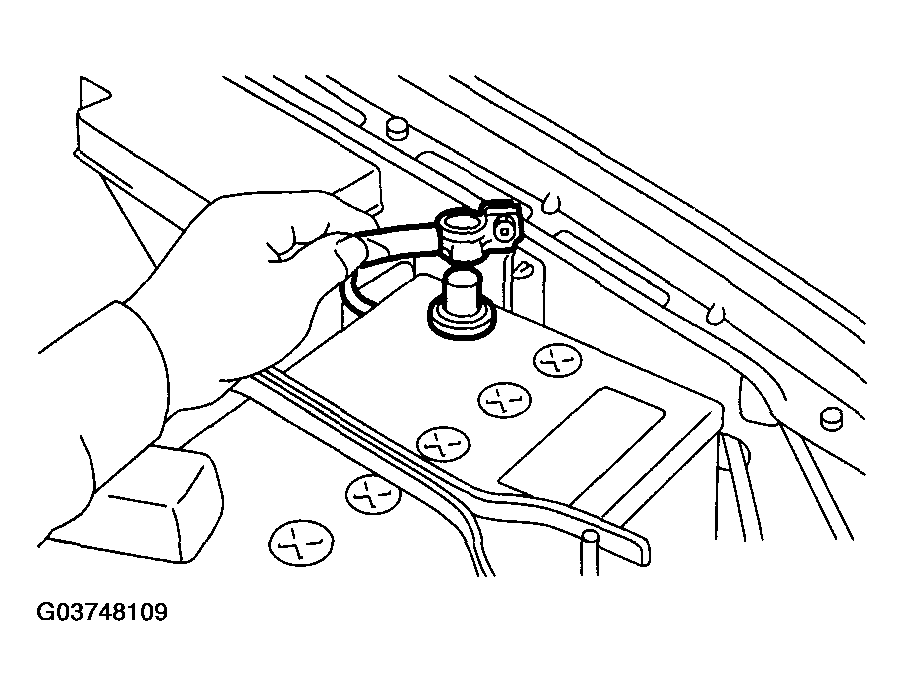

    Fig 1: Disconnecting Ground Cable From Battery
    G03748109Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower cover. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Disconnect connector from fuel pump relay.

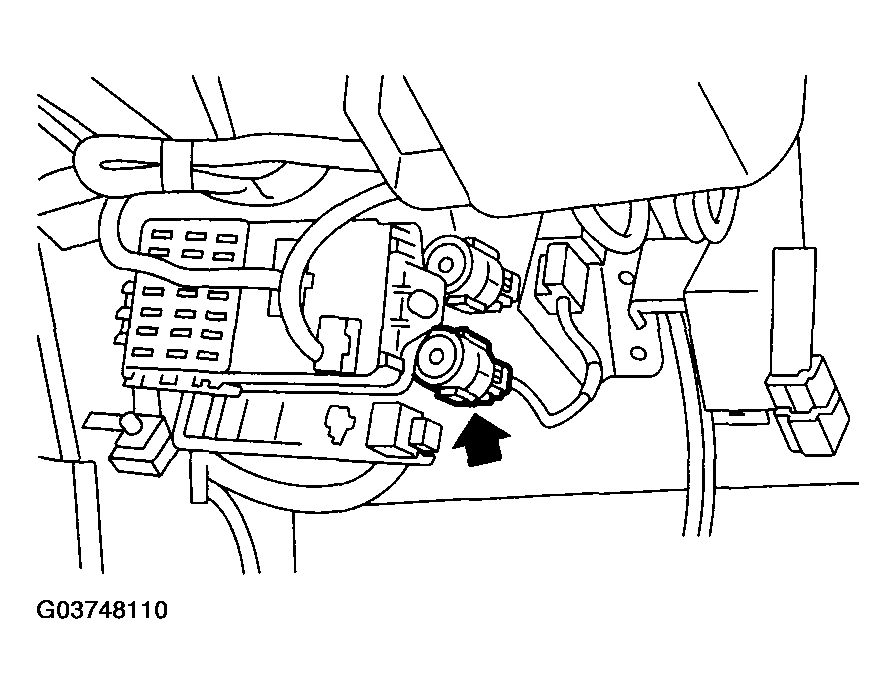

    Fig 2: Disconnecting Fuel Pump Relay Connector
    G03748110Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fuel pump relay from mounting bracket.
