General Description
›
Components With Torque Specifications
›
Fuel Tank
Fuel Tank

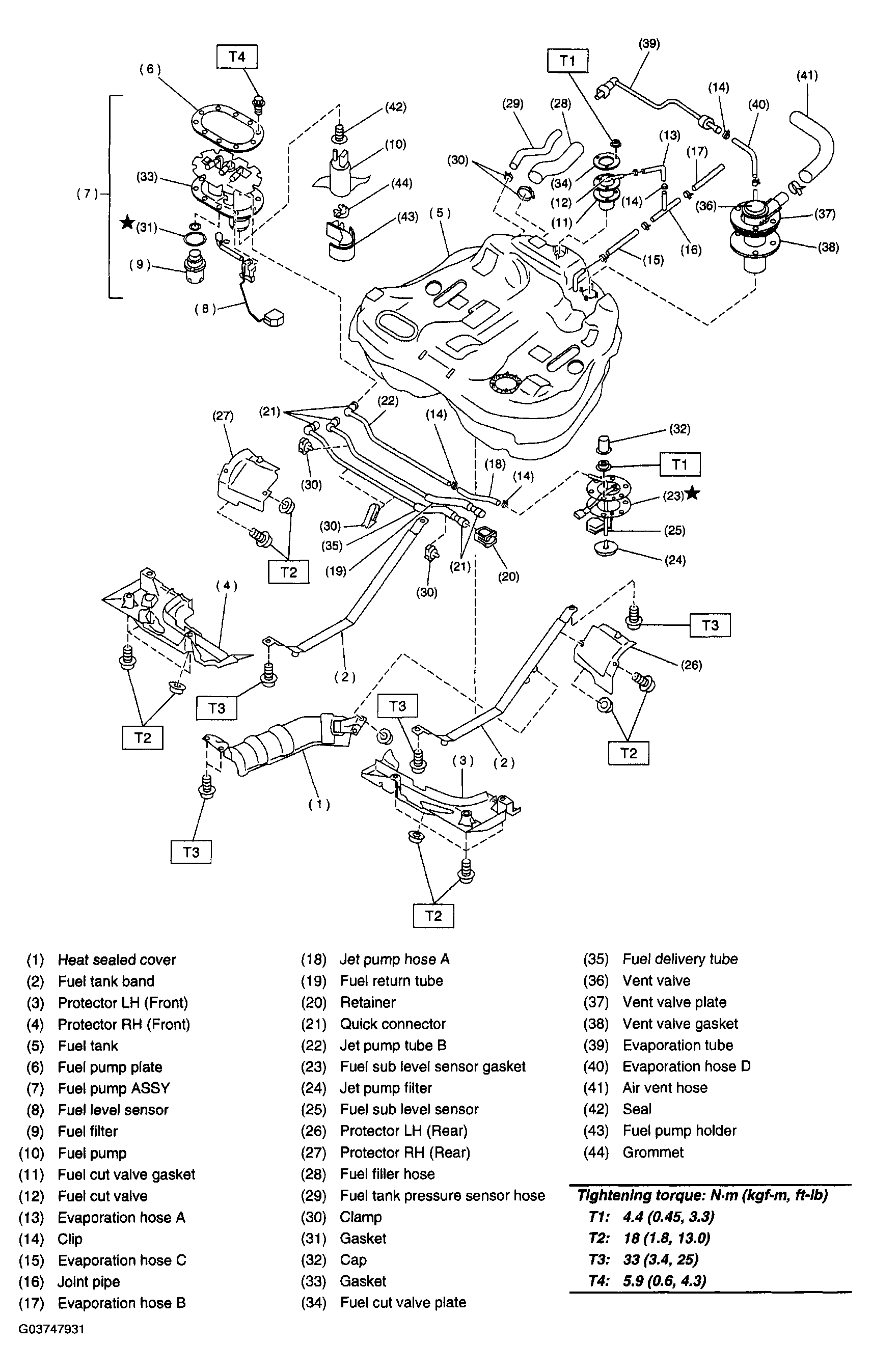

Fig 1: Exploded View Of Fuel Tank Related Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
