Accelerator Pedal: Disassembly

  1. Remove the clip, and then remove the accelerator pedal from the bracket.
  2. Pull out the spring pin, and then remove the accelerator pedal from the accelerator pedal lever.

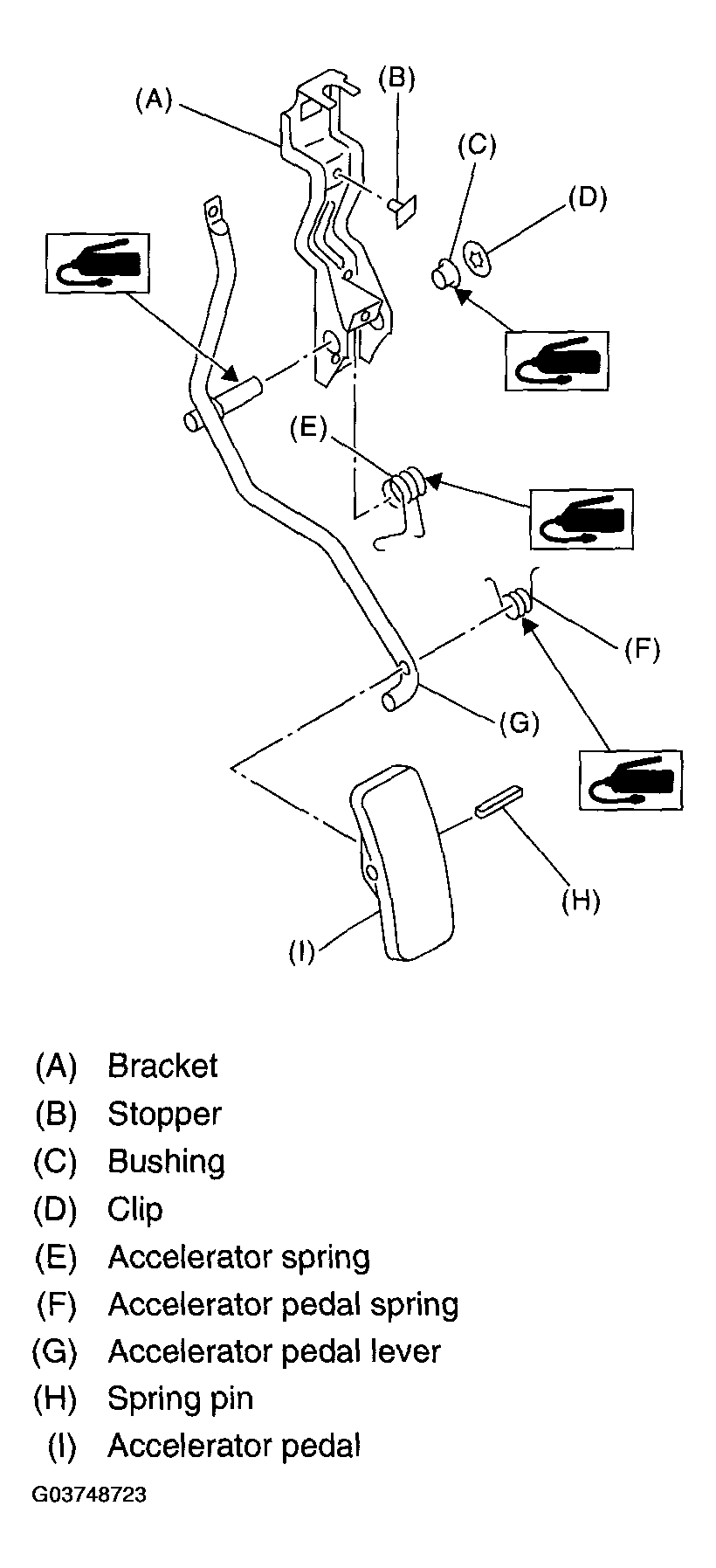

    Fig 1: Identifying Accelerator Pedal Components
    G03748723Courtesy of SUBARU OF AMERICA, INC.
