Electrical Components Location: Location: Engine: Sensor

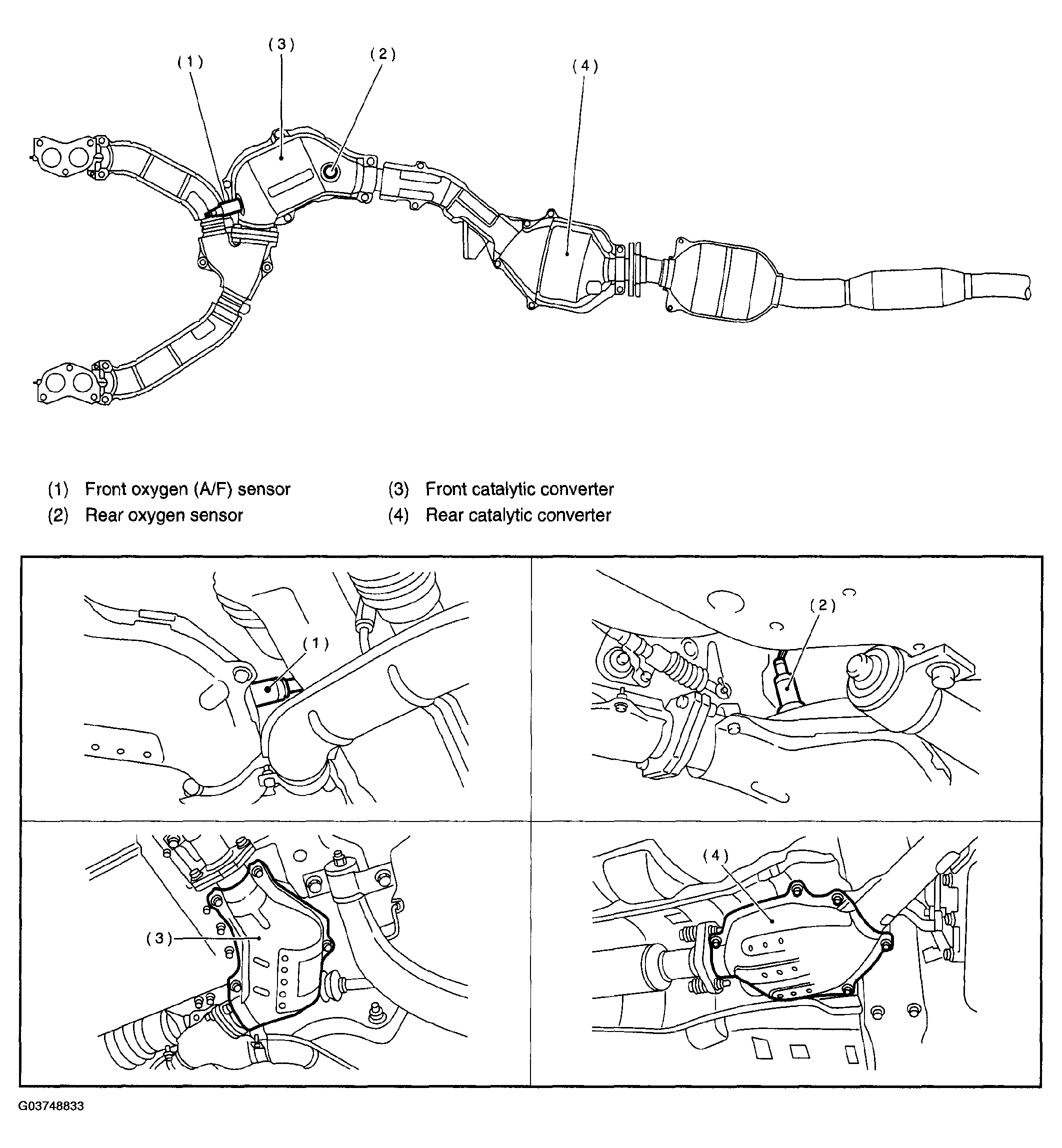

Fig 1: Identifying Sensors Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

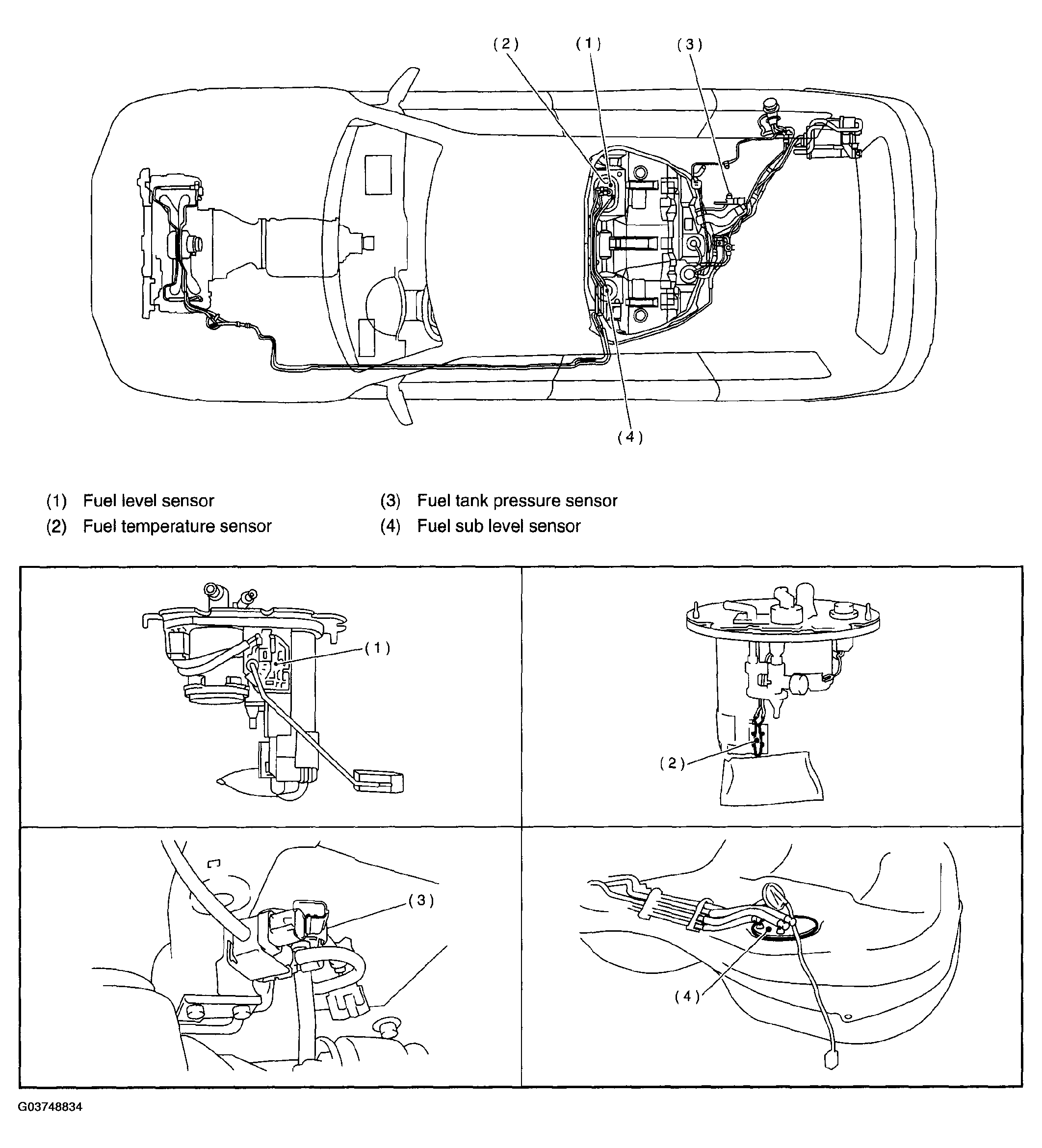

Fig 2: Identifying Sensors Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

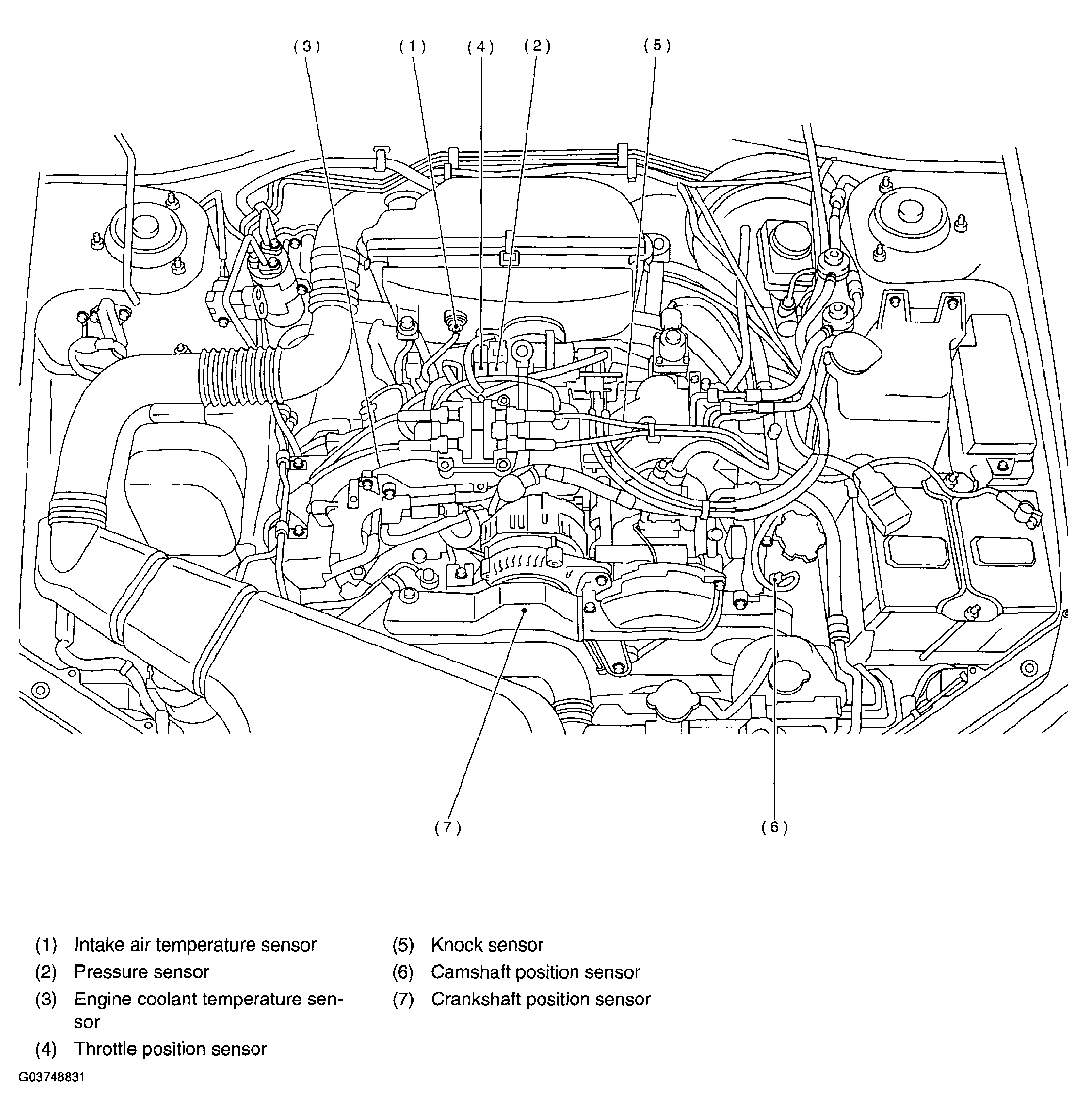

Fig 3: Identifying Sensors Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

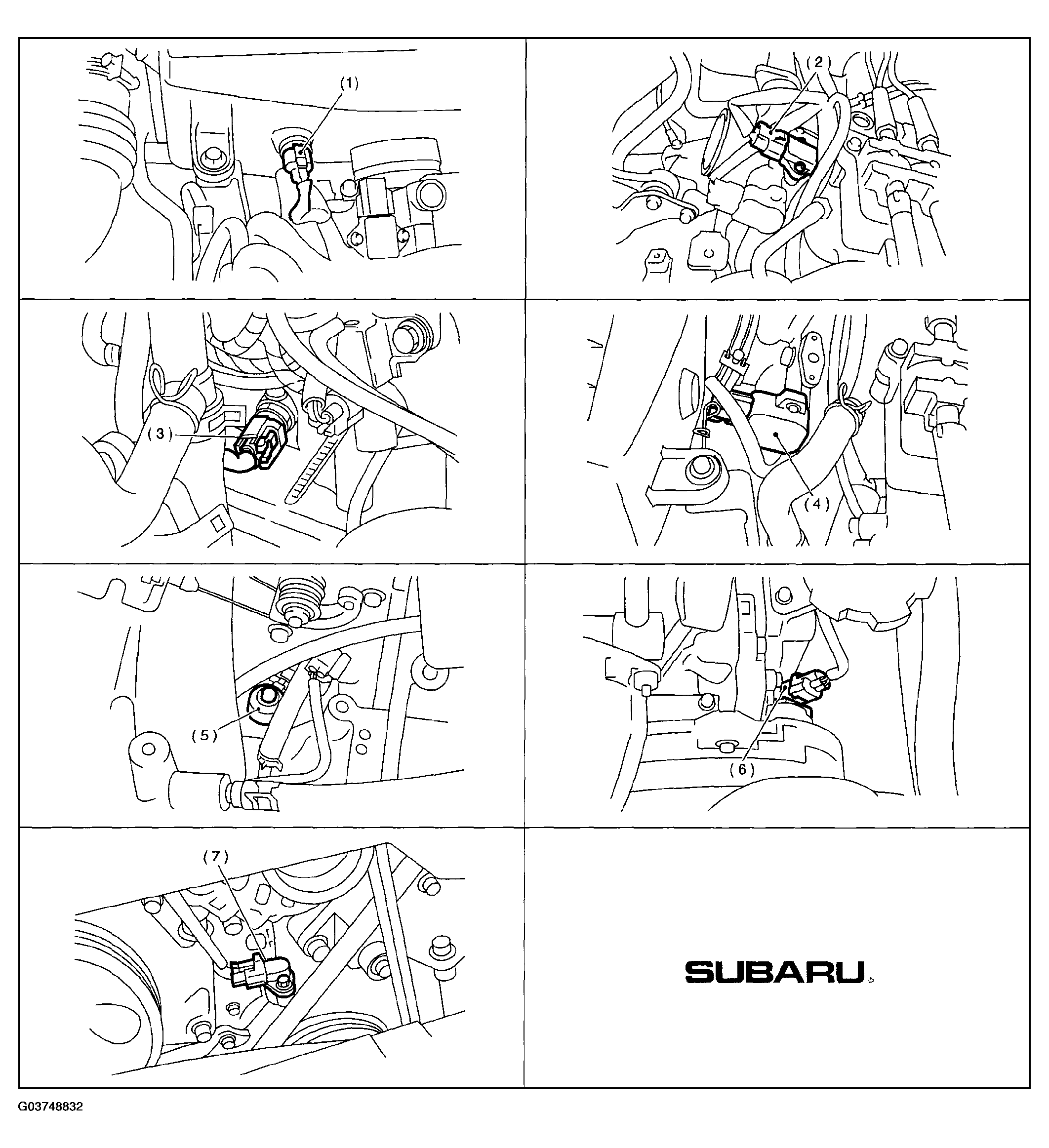

Fig 4: Identifying Sensors Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
